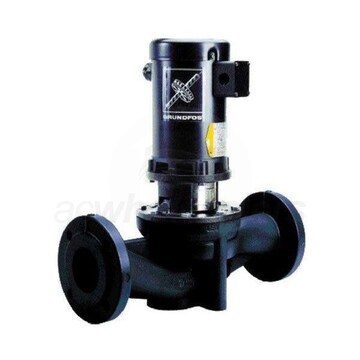

Grundfos TP80-80/4 Direct Coupled In-Line Circ, 1-1/2 HP, 115/208-230V

Model: 96411829 Item Number: 36615
Grundfos 96411829
PREVIOUS
NEXT
Grundfos 96411829
Enlarge Image
Our Price: $6,281.00
synchrony card icon
$79 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 7-14 Business Days
Grundfos TP80-80/4 Direct Coupled In-Line Circ, 1-1/2 HP, 115/208-230V
Grundfos TP80-80/4 Direct Coupled In-Line Circ, 1-1/2 HP, 115/208-230V Model: 96411829 Item Number: 36615
$6,281.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    141 Pounds Learn More
    141 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    05700390525330
Features
View More

Features

Overview for Grundfos 96411829

The Grundfos TP80-80/4 is a direct coupled, single-stage, in-line centrifugal pump with a mechanical shaft seal and the world-renowned IE3 as its standard motor. Grundfos' Blueflux motors are among the most efficient motors available, and are engineered for maximum efficiency at both full and part-capacity. Since it maintains a very high level of efficiency over a broad range of operations, it is ideal for an array of applications. The TP 80-80/4 is a top-pull-out design, meaning the pump head (which includes the motor, motor stool and impeller) can be detached without interfering with the pump housing's pipework. This simplifies the routine service work needed to maintain the performance of these pumps, enabling a single person to service even the largest pumps. The Grundfos TP series pumps are specifically designed for the circulation of liquids in heating and air-conditioning systems. Typical applications for this bronze pump include: district heating/cooling, industrial cooling/processes, boiler/hydronic heating, domestic hot water, chilled water, air conditioning systems, cooling towers, radiant floor heating, solar and snow melt systems.
  • Advanced fan design
  • Results in dramatically reduced noise levels
  • All-in-one-solution
  • The coupling and shaft are friction-welded together in order to create a completely stable mechanical unit, drastically reducing the vibration levels and prolongs the lifetime of the shaft seals and bearings
  • Mechanically and hydraulically balanced impeller
  • Further minimizes vibration levels and axial forces while maximizing motor bearing and shaft seal lifetime
  • Anti-corrosion surface
  • Cataphoresis surface treatment consisting of Powercon cathodic electrocoating and zinc phosphate coating results in maximal protection against corrosion and a longer lasting inside surface that keeps efficiency high
  • Renewable neck rings
  • Makes it easy to upgrade your pump when necessary
  • Unique design of shaft seal chamber
  • Eliminates the need for external piping and ensures optimal water circulation, prolonging the lifetime of the shaft seal
  • Grundfos Blueflux IE3
  • Only motors with the official IE3 logo are certified maximum efficiency motors
  • Compact perfection
  • A large shaft diameter and a short distance from the impeller to the motor maximizes stability and results in lower maintenance costs
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    05700390525330
    General Information
    Product Line
    TP80-80/4
    Product Category
    Boiler Accessories
    Motor Type
    Single Speed
    Connection Type
    Flanged
    Mount Type
    In-Line
    Material
    Bronze
    Drive Type
    Close-Coupled
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    Yes
    Performance
    Maximum Head
    26.2 Feet
    Maximum Flow Rate
    163 GPM
    Minimum Fluid Temperature
    5 F
    Maximum Fluid Temperature
    284 F
    Maximum Operating Pressure
    145 PSI
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Connection Size
    3 Inches
    Product Height
    19 Inches
    Product Width
    22 1/4 Inches
    Product Depth
    9 Inches
    Product Weight
    141 Pounds
    Shipping Weight
    148 Pounds
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    2 Years
