Grundfos TP50-40/4 Direct Coupled In-Line Circ, 1/3 HP, 115/208-230V

Model: 96411806 Item Number: 36577
Ask a Question
Grundfos 96411806
PREVIOUS
NEXT
Grundfos 96411806
Enlarge Image
Our Price: $1,127.11

Ships in 7-14 Business Days
Grundfos TP50-40/4 Direct Coupled In-Line Circ, 1/3 HP, 115/208-230V
Grundfos TP50-40/4 Direct Coupled In-Line Circ, 1/3 HP, 115/208-230V Model: 96411806 Item Number: 36577
$1,127.11
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Low Price Guarantee Learn More
Low Price Guarantee
Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    62 Pounds Learn More
    62 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    TP50-40/4
    Motor Type
    Single Speed
View More
Features
View More

Features

Overview for Grundfos 96411806

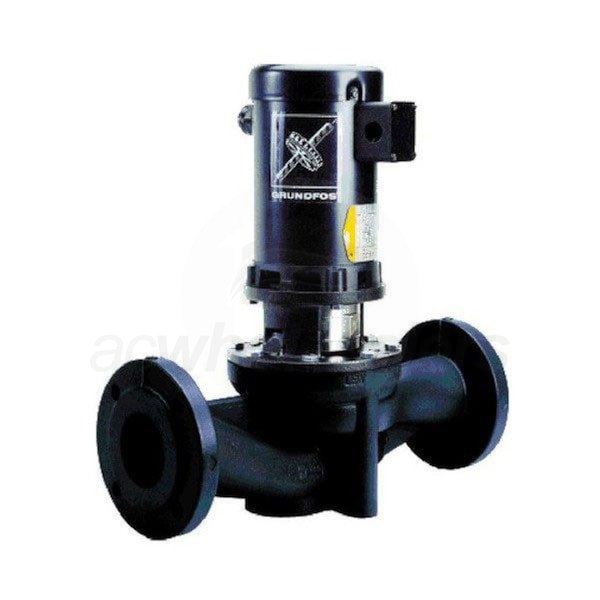

The Grundfos TP50-40/4 is a direct coupled, single-stage, in-line centrifugal pump with a mechanical shaft seal and the world-renowned IE3 as its standard motor. Grundfos' Blueflux motors are among the most efficient motors available, and are engineered for maximum efficiency at both full and part-capacity. Since it maintains a very high level of efficiency over a broad range of operations, it is ideal for an array of applications. The TP 50-40/4 is a top-pull-out design, meaning the pump head (which includes the motor, motor stool and impeller) can be detached without interfering with the pump housing's pipework. This simplifies the routine service work needed to maintain the performance of these pumps, enabling a single person to service even the largest pumps. The Grundfos TP series pumps are specifically designed for the circulation of liquids in heating and air-conditioning systems. Typical applications for this cast iron pump include: district heating/cooling, industrial cooling/processes, general water supply, boiler/hydronic heating, chilled water, air conditioning systems, cooling towers, radiant floor heating, solar and snow melt systems.
Specifications
View More

Specifications

General Information
Product Line
TP50-40/4
Motor Type
Single Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Close-Coupled
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
UPC
05700390524463
Performance
Maximum Head
13.1 Feet
Maximum Flow Rate
70.4 GPM
Minimum Fluid Temperature
5 F
Maximum Fluid Temperature
284 F
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115/208-230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Connection Size
2 Inches
Product Height
14 Inches
Product Width
18 13/16 Inches
Product Depth
6 9/16 Inches
Product Weight
62 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
2 Years
