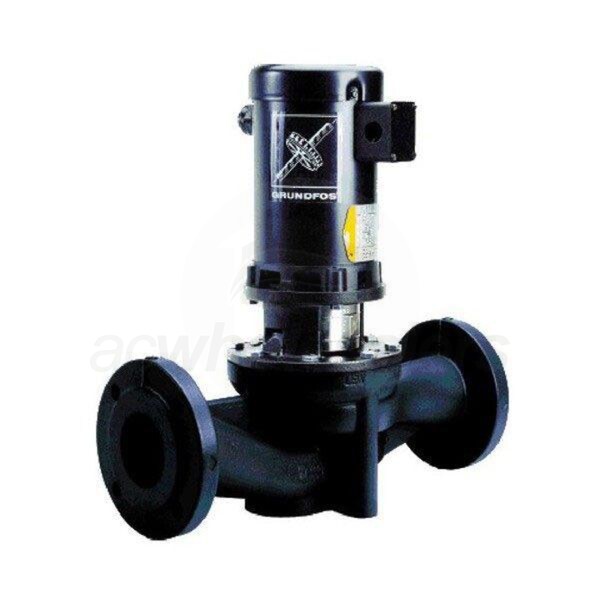

Grundfos TP32-160/2 Direct Coupled In-Line Circ, 3/4 HP, 115/208-230V

Model: 96411786 Item Number: 36506
Grundfos 96411786
PREVIOUS
NEXT
Grundfos 96411786
Enlarge Image
Our Price: $2,081.00
synchrony card icon
$347 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 7-14 Business Days
Grundfos TP32-160/2 Direct Coupled In-Line Circ, 3/4 HP, 115/208-230V
Grundfos TP32-160/2 Direct Coupled In-Line Circ, 3/4 HP, 115/208-230V Model: 96411786 Item Number: 36506
$2,081.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    60 Pounds Learn More
    60 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    05700390523695
Features
View More

Features

Overview for Grundfos 96411786

The Grundfos TP32-160/2 is a direct coupled, single-stage, in-line centrifugal pump with a mechanical shaft seal and the world-renowned IE3 as its standard motor. Grundfos' Blueflux motors are among the most efficient motors available, and are engineered for maximum efficiency at both full and part-capacity. Since it maintains a very high level of efficiency over a broad range of operations, it is ideal for an array of applications. The TP 32-160/2 is a top-pull-out design, meaning the pump head (which includes the motor, motor stool and impeller) can be detached without interfering with the pump housing's pipework. This simplifies the routine service work needed to maintain the performance of these pumps, enabling a single person to service even the largest pumps. The Grundfos TP series pumps are specifically designed for the circulation of liquids in heating and air-conditioning systems. Typical applications for this cast iron pump include: district heating/cooling, industrial cooling/processes, general water supply, boiler/hydronic heating, chilled water, air conditioning systems, cooling towers, radiant floor heating, solar and snow melt systems.
Specifications
View More

Specifications

Overview
Product Category
Boiler Accessories
UPC
05700390523695
General Information
Product Line
TP32-160/2
Product Category
Boiler Accessories
Motor Type
Single Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Close-Coupled
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
52.5 Feet
Maximum Flow Rate
38.7 GPM
Minimum Fluid Temperature
5 F
Maximum Fluid Temperature
284 F
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115/208-230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Connection Size
1 1/2 Inches
Product Height
13 1/2 Inches
Product Width
18 7/16 Inches
Product Depth
6 Inches
Product Weight
60 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
2 Years
