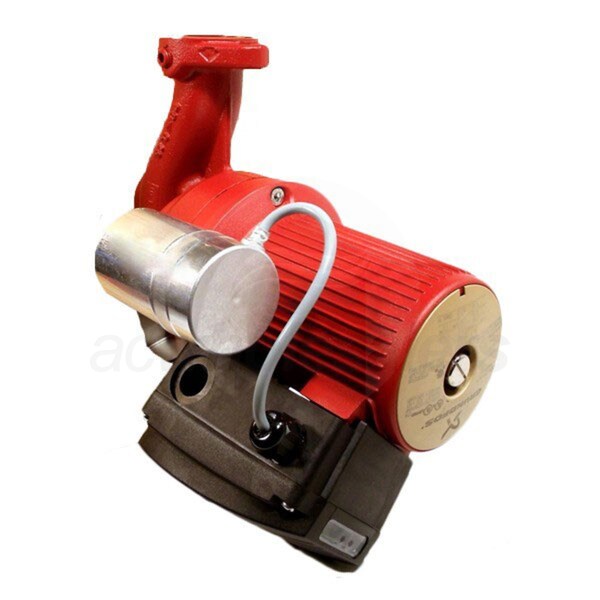

Grundfos UPS - 3/4 HP - 3-Speed Circulation Pump - Cast Iron - GF 50 Flange

Model: 96404960 Item Number: 37020
Grundfos 96404960
PREVIOUS
NEXT
Grundfos 96404960
Grundfos 96404960
Enlarge Image
Grundfos 96404960
Grundfos 96404960
View All
Our Price: $1,483.00
synchrony card icon
$248 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 3-4 Weeks
Grundfos UPS - 3/4 HP - 3-Speed Circulation Pump - Cast Iron - GF 50 Flange
Grundfos UPS - 3/4 HP - 3-Speed Circulation Pump - Cast Iron - GF 50 Flange Model: 96404960 Item Number: 37020
$1,483.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    59 Pounds Learn More
    59 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    05700390738679
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Grundfos 96404960

Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS50-80/4 is a three-speed circulator with a wet-rotor fluid movement design. Solid cast iron construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Cast Iron Construction
  • The Grundfos UPS50-80/4 is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UPS50-80/4 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UPS50-80/4 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    05700390738679
    General Information
    Product Line
    UPS50-80/4
    Product Category
    Boiler Accessories
    Motor Type
    Multi-Speed
    Connection Type
    Flanged
    Mount Type
    In-Line
    Material
    Cast Iron
    Drive Type
    Wet Rotor
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    No
    Performance
    Maximum Head
    26.2 Feet
    Maximum Flow Rate
    68.6 GPM
    Minimum Fluid Temperature
    14 F
    Maximum Fluid Temperature
    248 F
    Horsepower
    0.75
    Maximum Operating Pressure
    145 PSI
    Electrical Data
    Voltage
    230 Volts
    Phase
    3
    Frequency
    60 Hz
    Current Draw
    7.55 Amps
    Dimensions
    Product Height
    13 3/4 Inches
    Product Width
    9 11/16 Inches
    Product Depth
    11 1/2 Inches
    Product Weight
    59 Pounds
    Flange Connection
    GF 50
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.
