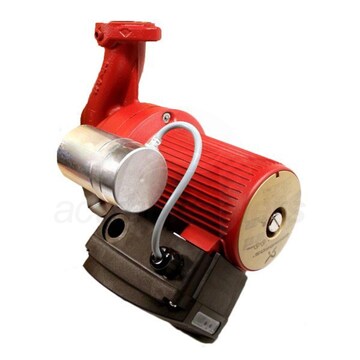

Grundfos UPS 1/2 HP Bronze 3-Speed Circulation Pump GF 15/26 Flange

Model: 96402715 Item Number: 36842
Grundfos 96402715
PREVIOUS
NEXT
Grundfos 96402715
Grundfos 96402715
Enlarge Image
Grundfos 96402715
Grundfos 96402715
View All
Our Price: $2,165.00
synchrony card icon
$361 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 3-4 Weeks
Grundfos UPS 1/2 HP Bronze 3-Speed Circulation Pump GF 15/26 Flange
Grundfos UPS 1/2 HP Bronze 3-Speed Circulation Pump GF 15/26 Flange Model: 96402715 Item Number: 36842
$2,165.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    42 Pounds Learn More
    42 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    05700390678654
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Grundfos 96402715

Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS32-80/2 is a three-speed circulator with a wet-rotor fluid movement design. Solid bronze construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Specifications
View More

Specifications

Overview
Product Category
Boiler Accessories
UPC
05700390678654
General Information
Product Line
UPS32-80/2
Product Category
Boiler Accessories
Motor Type
Multi-Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Bronze
Drive Type
Wet Rotor
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
26.2 Feet
Maximum Flow Rate
28.1 GPM
Minimum Fluid Temperature
14 F
Maximum Fluid Temperature
248 F
Horsepower
1/2
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
230 Volts
Phase
3
Frequency
60 Hz
Current Draw
2.66 Amps
Dimensions
Product Height
11 3/4 Inches
Product Width
8 3/8 Inches
Product Depth
11 Inches
Product Weight
42 Pounds
Flange Connection
GF 15/26
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
