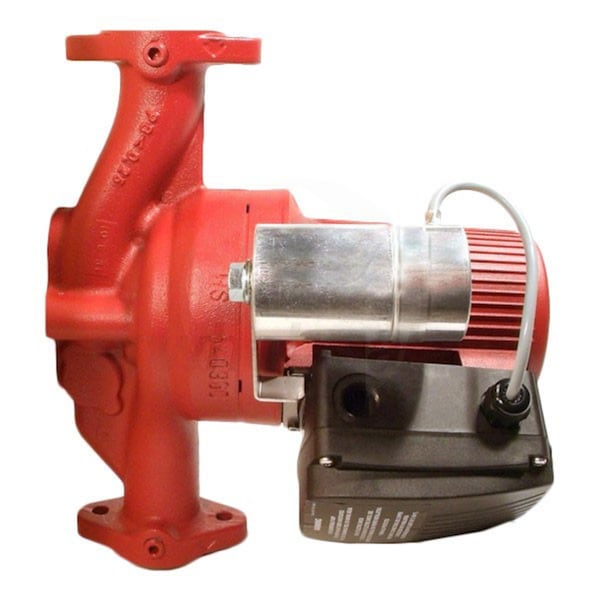

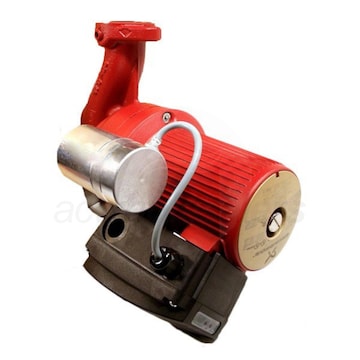

Grundfos UPS 1/2 HP Cast Iron 2-Speed Circulation Pump GF 15/26 Flange

Model: 96402711 Item Number: 36837
Ask a Question
Grundfos 96402711
PREVIOUS
NEXT
Grundfos 96402711
Grundfos 96402711
Enlarge Image
Grundfos 96402711
Grundfos 96402711
View All
Our Price: $1,082.00

In-Stock
Ships in 1-3 Business Days
Grundfos UPS 1/2 HP Cast Iron 2-Speed Circulation Pump GF 15/26 Flange
Grundfos UPS 1/2 HP Cast Iron 2-Speed Circulation Pump GF 15/26 Flange Model: 96402711 Item Number: 36837
$1,082.00
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Low Price Guarantee Learn More
Low Price Guarantee
Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    37 Pounds Learn More
    37 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    UPS32-80/2
    Motor Type
    Multi-Speed
View More
Features
View More

Features

Overview for Grundfos 96402711

Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS32-80/2 is a 2-speed circulator with a wet-rotor fluid movement design. Solid cast iron construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Product Note
Cast iron cannot be used in domestic hot water or potable water applications.
Specifications
View More

Specifications

General Information
Product Line
UPS32-80/2
Motor Type
Multi-Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Wet Rotor
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
UPC
05700390678494
Performance
Maximum Head
26.2 Feet
Maximum Flow Rate
28.1 GPM
Minimum Fluid Temperature
14 F
Maximum Fluid Temperature
248 F
Horsepower
1/2
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
460 Volts
Phase
3
Frequency
60 Hz
Current Draw
2.66 Amps
Dimensions
Product Height
11 3/4 Inches
Product Width
8 3/8 Inches
Product Depth
11 Inches
Product Weight
37 Pounds
Flange Connection
GF 15/26
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
