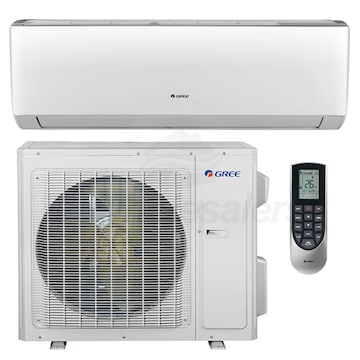

Gree 36,000 BTU 18 SEER Ductless Mini Split Heat Pump Vireo 220V

Model: VIR36HP230V1AO VIR36HP230V1AH Item Number: 62897
Gree VIR36HP230V1AO VIR36HP230V1AH
PREVIOUS
NEXT
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Enlarge Image
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Watch Video
Gree VIR36HP230V1AO VIR36HP230V1AH
Watch Video
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
Gree VIR36HP230V1AO VIR36HP230V1AH
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    203 Pounds Learn More
    203 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Operating Mode
    Heating and Cooling
Bundle Includes 2 items
  • product image
    (1) Gree 36,000 BTU 18 SEER Vireo Ductless Heat Pump Condenser (VIR36HP230V1AO)
  • product image
    (1) Gree 36,000 BTU 18 SEER Vireo Ductless Heat Pump Air Handler (VIR36HP230V1AH)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Gree VIR36HP230V1AO VIR36HP230V1AH

Overview for Gree VIR36HP230V1APresenting the new Vireo inverter heat pump mini-split from Gree, the most trusted HVAC manufacturer in the world. With the leading cutting edge technology, it is driven by Gree's famous G10 inverter compressor system up to 23 SEER, achieving energy savings year around. The product also has unparalleled features that make it a perfect option for your home or office needs.. Its aesthetic and minimalistic design blends well with any d
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 2 items
    • product kit image

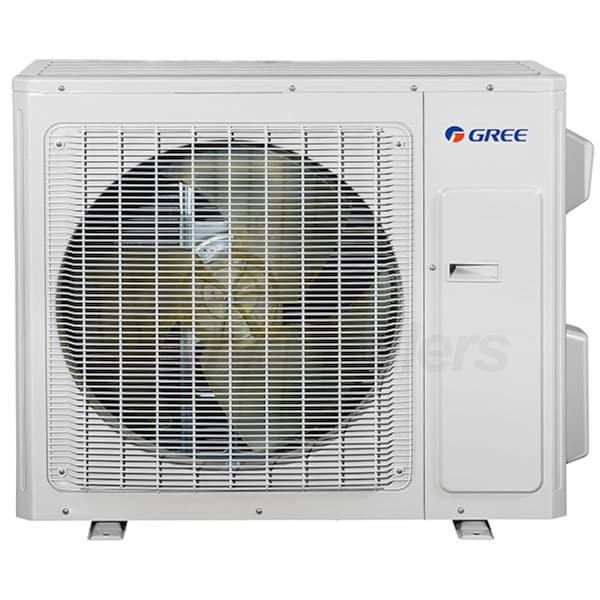

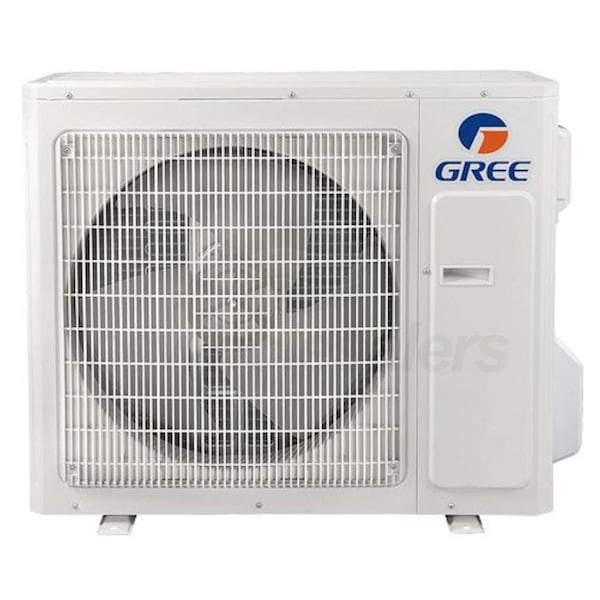

      Gree 36,000 BTU 18 SEER Vireo Ductless Heat Pump Condenser
      Model: VIR36HP230V1AO
      Item Number: 62339
      Quantity: 1
    • product kit image

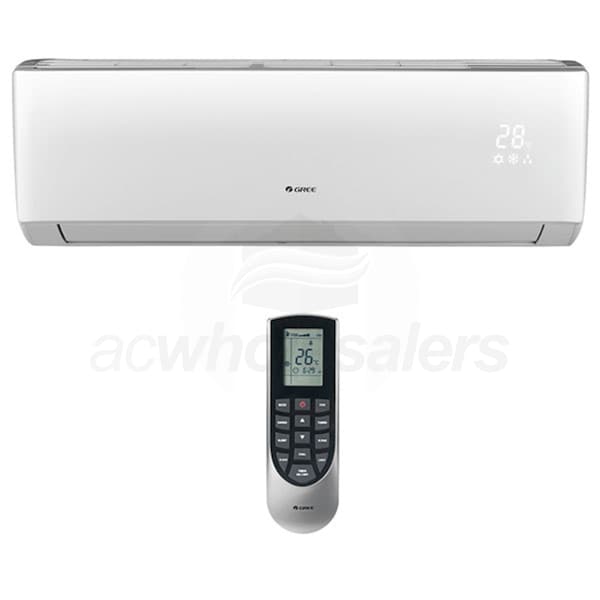

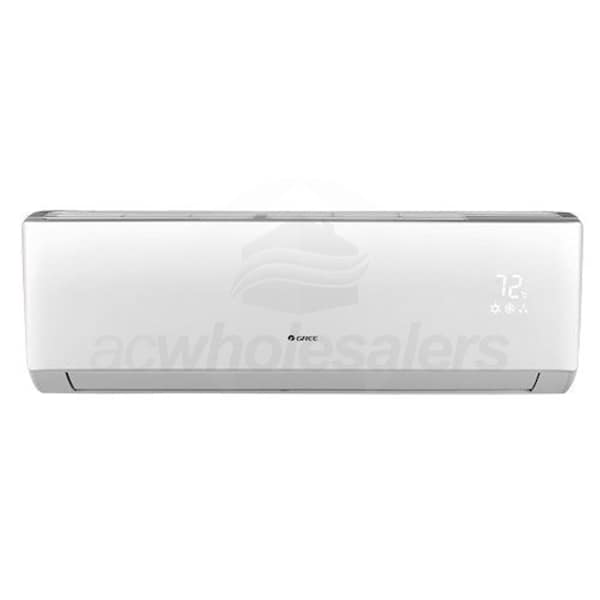

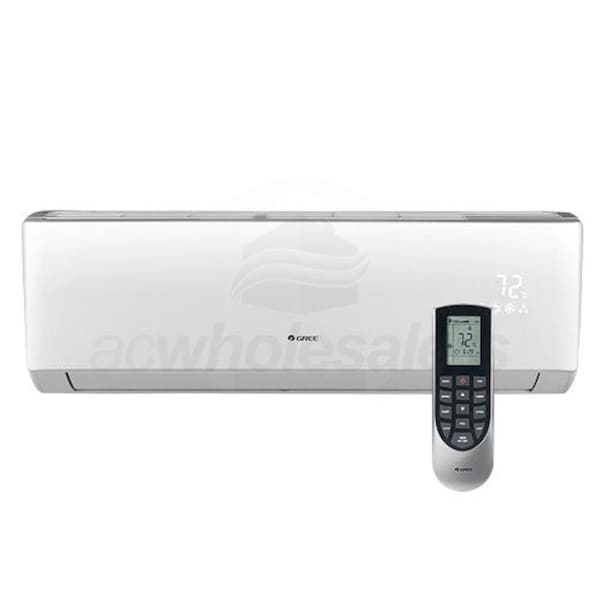

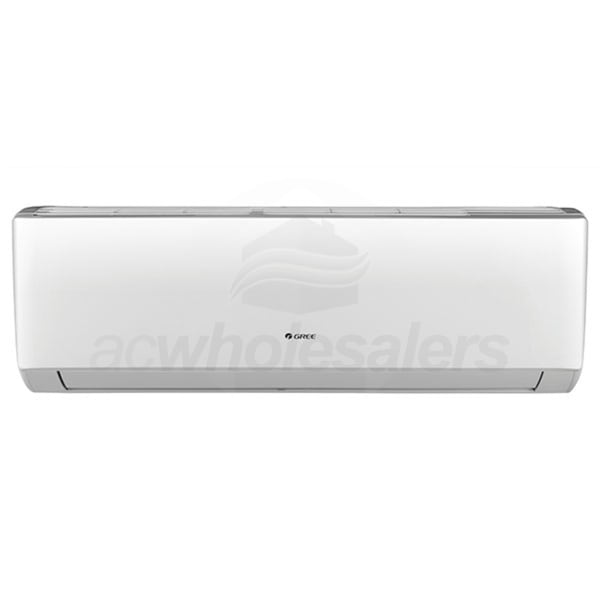

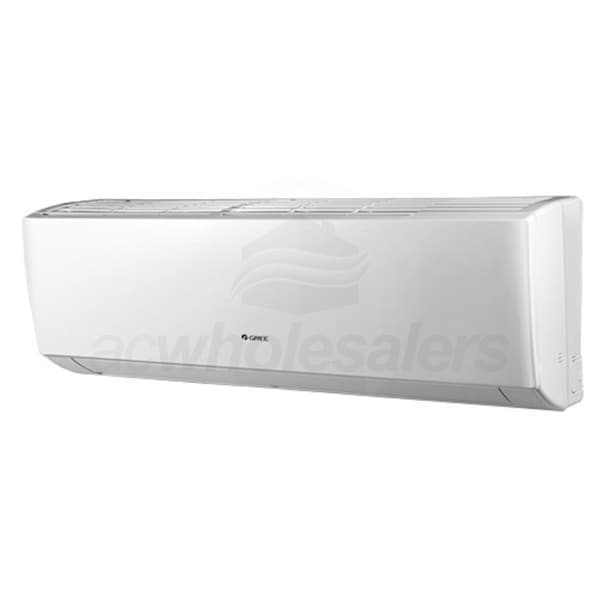

      Gree 36,000 BTU 18 SEER Vireo Ductless Heat Pump Air Handler
      Model: VIR36HP230V1AH
      Item Number: 62338
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Wall Mounted
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 5/8"
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Heating Capacity
    36000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    18.0
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    9.0
    Cooling Power Input
    4300 Watts
    Heating Power Input
    4300 Watts
    Dimensions
    Product Weight
    203 Pounds
    Shipping Weight
    224 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    8246623
    General Information
    Type
    Outdoor Condenser
    Product Line
    Vireo
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    36000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    65 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    24 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Maximum Line Length
    98 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    31 5/48 Inches
    Product Width
    38 29/48 Inches
    Product Depth
    16 19/24 Inches
    Product Weight
    161 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    Vireo
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A

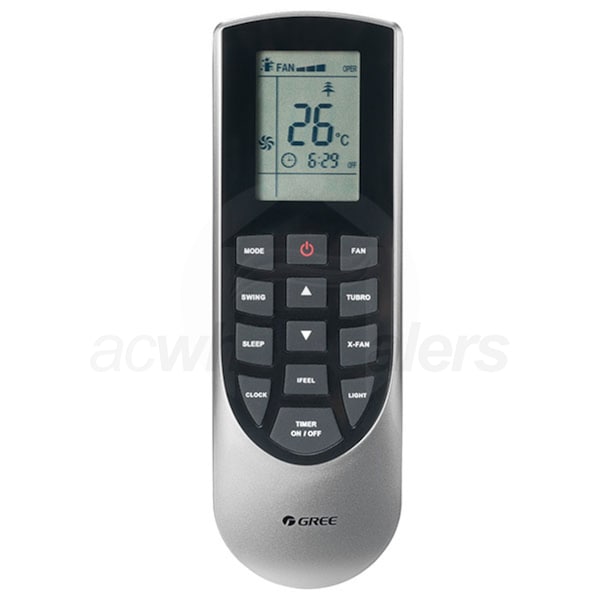

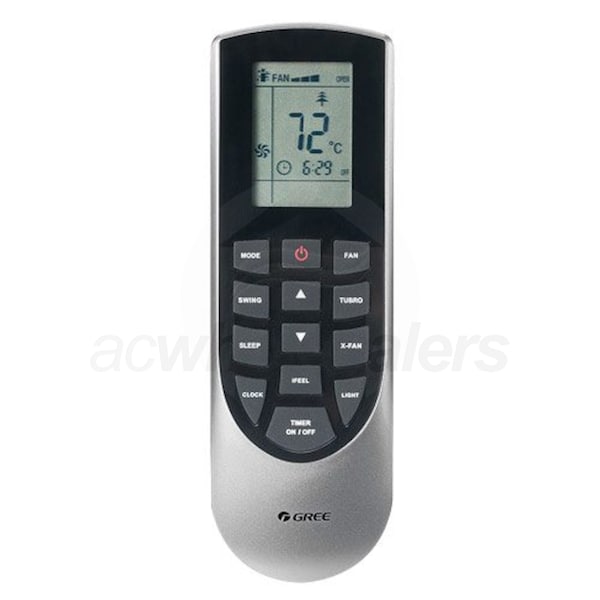

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Installation Location
    Indoor
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Moisture Removal
    7.4 Pints/Hour
    Maximum Air Flow
    736 CFM
    Minimum Air Flow
    412 CFM
    Minimum Sound Level
    37 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    54 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 19/24 Inches
    Product Width
    53 5/24 Inches
    Product Depth
    10 Inches
    Product Weight
    42 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
