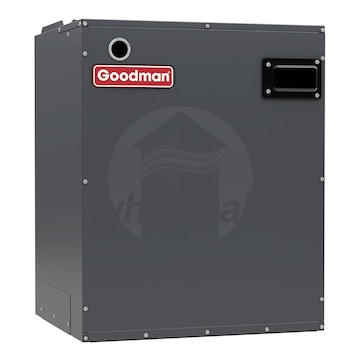

Goodman 3.5 to 4 Ton Air Conditioner Modular Blower Variable Speed

Model: MBVC1601AA-1 Item Number: 113523
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Goodman MBVC1601AA-1
PREVIOUS
NEXT
Goodman MBVC1601AA-1
Enlarge Image
Originally $915.00
Add to Cart for Lower Price
synchrony card icon
$148 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Factory items ship direct from the manufacturer
Shipping times vary
In-Stock
Ships in 2-5 Business Days
Shipping to60601
Goodman 3.5 to 4 Ton Air Conditioner Modular Blower Variable Speed
Goodman 3.5 to 4 Ton Air Conditioner Modular Blower Variable Speed Model: MBVC1601AA-1 Item Number: 113523
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    80 Pounds Learn More
    80 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Forced Air Blower
View More
Cabinet Width
Select Attribute
Features
View More

Features

Overview for Goodman MBVC1601AA-1

The best air conditioner or heat pump in the world is all for naught if your home lacks proper airflow. That's where the Goodman MBVC modular blower comes in. The MBVC is compatible with all Goodman "A" coils, and ready for multi-stage heating and cooling applications out of the box. It features one of the most advanced fan motors on the market today and a cabinet designed to improve longevity. With a focus on both efficiency and durability, the MBVC is a tremendous value for homeowners. If airflow issues are preventing you from getting the most out of your system, upgrade to a Goodman MBVC modular blower today.
  • Modular Design
  • The modular nature of the MBVC makes it easy to work into any system. The two-piece design speeds up installation, and it can be configured easily for upflow, downflow, and horizontal airflow applications.
  • Secure Cabinet
  • This blower's cabinet features embossing to enhance durability and foil-faced insulation to reduce noise and condensation levels.
  • Energy-Efficient Circulation
  • By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor provides ideal airflow through shifting conditions in nearly any application - all while using less energy than traditional motors.
  • ComfortBridge Compatible
  • This blower is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control simplifies the installation and maintenance processes further by automatically detecting your equipment and providing diagnostics and troubleshooting.
  • Product Compatible With
  • Goodman CAPF Evaporator Coils
  • Goodman CAUF Evaporator Coils
  • Goodman CAPT Evaporator Coils
  • Goodman CHPF Evaporator Coils
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Forced Air Blower
    General Information
    Type
    Air Handler
    Product Line
    MBVC
    Product Category
    Air Handler
    Blower Motor Type
    Variable Speed
    Motor Type
    ECM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    TXV Installed
    No
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 Tons
    Maximum Air Flow
    1600 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    6.5 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Cabinet Width
    21 Inches
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    80 Pounds
    Shipping Weight
    90 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    Limited* 10 Years
