Goodman - 5.0 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Air Handler System - 16.2 SEER2 - 8.1 HSPF2

Model: GSZC706010 MBVC2001AA-1 CAPT4961D4 Item Number: 145568
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
PREVIOUS
NEXT
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
Enlarge Image
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4
View All
Originally $7,126.00
Add to Cart for Lower Price
synchrony card icon
$85 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 4-6 Weeks
Goodman - 5.0 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Air Handler System - 16.2 SEER2 - 8.1 HSPF2
Goodman - 5.0 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Air Handler System - 16.2 SEER2 - 8.1 HSPF2 Model: GSZC706010 MBVC2001AA-1 CAPT4961D4 Item Number: 145568
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    477 Pounds Learn More
    477 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Heat Pump & Air Handler Package
    Operating Mode
    Heating and Cooling

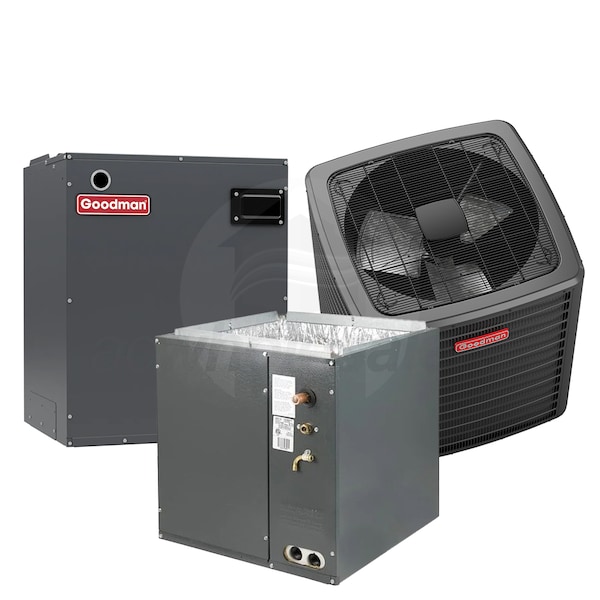

Bundle Includes 3 items
  • product image
    (1) Goodman GSZC7 - 5.0 Ton - Heat Pump - 17.2 SEER2 - Two Stage - R-410A Refrigerant - Premium (GSZC706010)
  • product image
    (1) Goodman 5 Ton Air Conditioner Modular Blower Variable Speed (MBVC2001AA-1)
  • product image
    (1) Goodman 4 to 5 Ton 24.5 in. Wide Air Conditioner Evaporator Cased Coil (CAPT4961D4)
Size (Tons)
Learn More
Size (Tons)
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Select Attribute
Cabinet Width
Select Attribute
SEER2
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSZC706010 MBVC2001AA-1 CAPT4961D4

A Goodman high efficiency central air kit is the perfect way to upgrade your home's HVAC system. This kit contains a GSZC706010 heat pump and an MBVC2001AA-1 modular blower with a variable-speed blower motor with a CAPT Cased Coil. The variable-speed ECM motor provides you with energy efficient circulation. While each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, their energy efficiency is the real selling point. State-of-the-art design and technology make the GSZC706010 MBVC2001AA-1 CAPT4961D4 an excellent addition to nearly any household looking to reduce their energy spending.
  • High Efficiency Scroll Compressor
  • This unit utilizes a high efficiency Two-Stage Copeland Ultra-Tech scroll compressor.
  • Defrost Mode
  • This unit offers a time-delay defrost that allows for a reliable, quiet and smooth transition when units enter defrost mode.
  • Copper Tube/Enhanced Aluminum Fin Coil
  • The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency. The fins serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • Factory-Installed Suction-Line Accumulator
  • An accumulator prevents compressor damage from a sudden surge of liquid refrigerant and oil that could enter the compressor from the suction line.
  • Factory-Installed Compressor Crankcase Heater
  • A crankcase heater is a supplemental electric resistance heater that prevents refrigerant migration by holding oil in the crankcase at a higher temperature than the coldest part on the system.
  • Factory-Installed High-Capacity Muffler
  • A muffler reduces noise and high-frequency vibrations that can easily be transmitted through the tubing and into the house.
  • High And Low-Pressure Switches
  • A pressure switch will suspend heat pump operations if it detects an unsafe pressure level.
  • Secure Cabinet
  • The removable grille-style top design is UL 60335-2-40 compliant.
  • Heavy-Gauge Galvanized-Steel Cabinet
  • This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish with 500-hour salt-spray approval, and a steel louver coil guard that protects your equipment from wear and tear.
  • Modular Design
  • The modular nature of the MBVC makes it easy to work into any system. The two-piece design speeds up installation, and it can be configured easily for upflow, downflow, and horizontal airflow applications.
  • Energy-Efficient Circulation
  • By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor provides ideal airflow through shifting conditions in nearly any application - all while using less energy than traditional motors.
  • ComfortBridge™ Compatible
  • This blower is compatible with Goodman's ComfortBridge™ communicating controls. A ComfortBridge™ control simplifies the installation and maintenance processes by detecting your equipment and providing diagnostics and troubleshooting.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Internal Thermostatic Expansion Valve
  • The CAPT has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • Condensate Management
  • The CAPT features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Product Category
    Heat Pump & Air Handler Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Blower Motor Type
    ECM Variable-Speed
    Coil Width
    24.5 Inches
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling Capacity
    60000 BTU
    Nominal Cooling Capacity
    60000 BTU
    Heating Capacity
    60000 BTU
    Maximum Air Flow
    2000 CFM
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    16.2
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    8.1
    Dimensions
    Cabinet Width
    24 1/2 Inches
    Product Weight
    477 Pounds
    Shipping Weight
    517 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    211641917
    General Information
    Type
    Heat Pump Condenser
    Product Line
    GSZC7
    Product Category
    Heat Pump
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling BTU
    60000
    Cooling Capacity
    60000 BTU
    Heating Capacity
    60000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    78 dB
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    17.2
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    8.2
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    32.4 Amps
    Recommended Breaker Size
    50 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    41 5/8 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    35 1/2 Inches
    Product Weight
    315 Pounds
    Shipping Weight
    335 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years
    Compressor Warranty
    LIFETIME Years
    General Information
    Type
    Air Handler
    Product Line
    MBVC
    Product Category
    Air Handler
    Blower Motor Type
    Variable Speed
    Motor Type
    ECM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    Installation Available
    Yes
    TXV Installed
    No
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Maximum Air Flow
    2000 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    6.5 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Cabinet Width
    24 1/2 Inches
    Product Height
    30 Inches
    Product Width
    24 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    86 Pounds
    Shipping Weight
    96 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years
    Overview
    Product Category
    Forced Air Blower
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPT
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Installation Available
    Yes
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 - 5.0 Tons
    Cooling BTU
    60000
    Nominal Minimum Cooling Capacity
    48000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    24 1/2 Inches
    Product Height
    30 Inches
    Product Width
    24 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    76 Pounds
    Shipping Weight
    86 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Evaporator Coil
