Goodman - 3.0 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace Kit - 16.0 SEER - 97% AFUE - For Upflow Installation

Name: Goodman - 3.0 Ton Cooling - 100k BTU/Hr Heating - Heat Pump + Furnace Kit - 16.0 SEER - 97% AFUE - For Upflow Installation
Brand: Goodman
SKU: 76123
Availability: OutOfStock

Model: GSZ1636GMVM97100U Item Number: 76123

Ask a Question

Enlarge Image

View All

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

439 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Product Category

Furnace & Heat Pump Package

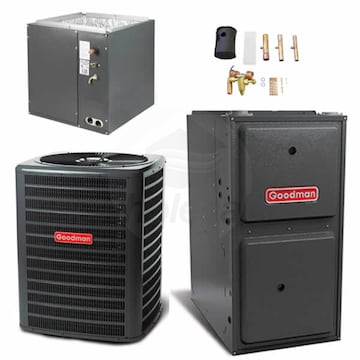

Bundle Includes 4 items

(1) Goodman 97% AFUE 100,000 BTU Variable Speed Upflow Gas Furnace (GMVM971005CN)
(1) Goodman 3 Ton 16 SEER Heat Pump Air Conditioner Condenser (GSZ160361)
(1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961C6)

View Full Bundle

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features & Bundle Details

Overview for Goodman GSZ1636GMVM97100U

A Goodman high efficiency heat pump and furnace package is the perfect way to upgrade your home's HVAC system. This kit contains a GSZ heat pump with an advanced coil design to maximize efficiency. The heat pump is paired with a modulating GMVM furnace equipped with an ECM variable speed motor. This pair was specifically chosen to provide high efficiency comfort, year round. A cased coil and valve kit are included, making this kit a top of the line, highly efficient, whole home solution.

Advanced Coil Design

The condenser coil of this heat pump is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.

SmartShift

Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.

High-Efficiency Compressor

This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.

All-Aluminum Coil

Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.

Condensate Management

The CAPF features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.

Advanced Heat Exchanger Design

The GMVM97 furnace employs a dual-diameter tubular heat exchanger design. Aluminized steel is used for efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

Secondary Heat Exchanger

This furnace produces additional heat without using more fuel by directing combustion gases through a second heat exchanger before they are vented. To prevent damage, this secondary heat exchanger is made of corrosion-resistant stainless steel.

Variable Speed ECM Motor

The GMVM line features a variable speed ECM motor. Variable speed motors allows the furnace to operate at higer efficiencies than multi-speed blowers by controlling the speed of the blower based on heating demands.

Extended Warranty

Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

Product Note

The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.

Bundle Includes 4 items

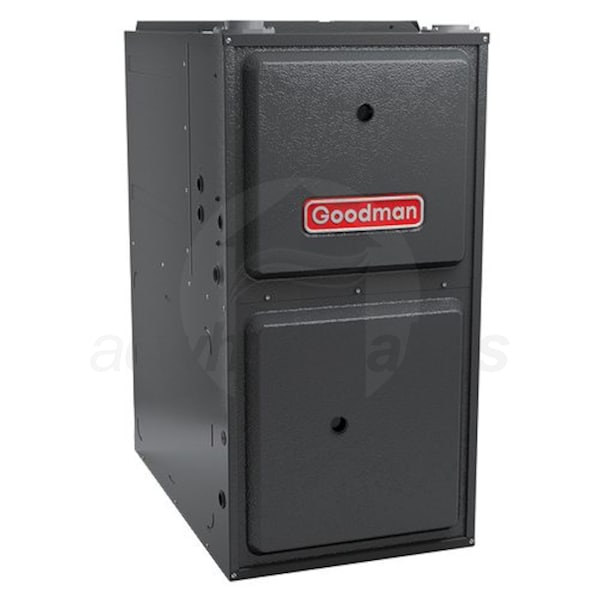

Goodman 97% AFUE 100,000 BTU Variable Speed Upflow Gas Furnace
Model: GMVM971005CN
Item Number: 26610
Quantity: 1

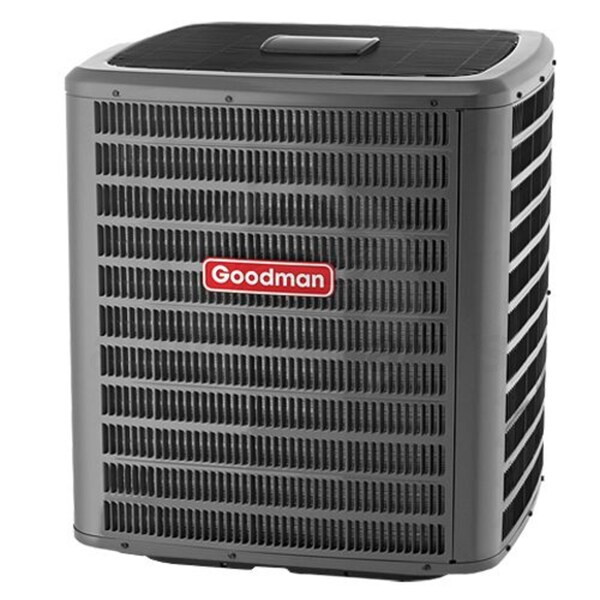

Goodman 3 Ton 16 SEER Heat Pump Air Conditioner Condenser
Model: GSZ160361
Item Number: 72291
Quantity: 1

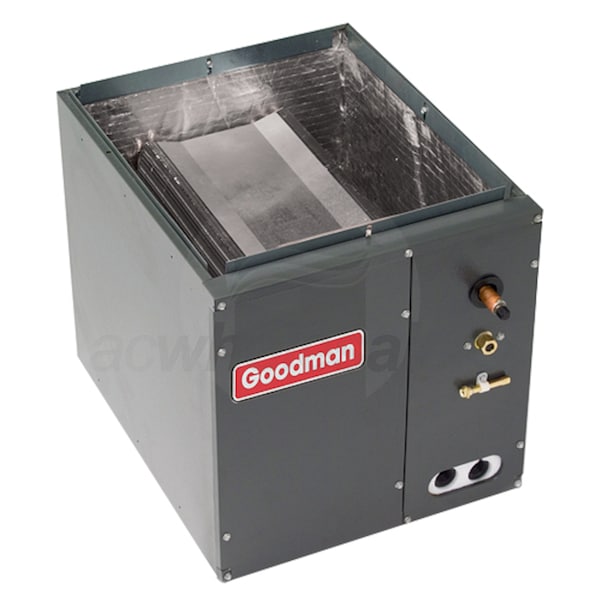

Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil
Model: CAPF4961C6
Item Number: 26374
Quantity: 1
Goodman 2.5 to 3 Ton Air Conditioner TXV Kit R410A Refrigerant
Model: TX3N4
Item Number: 26403
Quantity: 1

Specifications

Included In This Bundle

Bundle Overview

GMVM971005CN Specifications

GSZ160361 Specifications

CAPF4961C6 Specifications

TX3N4 Specifications

Overview

Product Category

Furnace & Heat Pump Package

General Information

Product Category

Furnace & Heat Pump Package

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Heating and Cooling

Modulating/Staging

Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.

Modulating

Blower Motor Speed

ECM Variable-Speed

Coil Width

21 Inches

Configuration

Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.

Upflow

DOE Regional Compliance

In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.

Nationwide (Except CA, TX and UT)

Performance

AFUE

AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.

97 %

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

3.0 Tons

Cooling Capacity

34000 BTU

Nominal Cooling Capacity

36000 BTU

Heating BTU

100000

SEER

SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.

16.0

EER

EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.

13.0

HSPF

HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.

9.00

Maximum Air Flow

1110 CFM

Dimensions

Product Weight

439 Pounds

Shipping Weight

459 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

AHRI Reference Number

8332205

General Information

Type

Gas Furnace

Product Line

GMVM97

Product Category

Furnace

Fuel Type

To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.

Natural Gas

Vent Type

Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.

Direct Vent

Modulating/Staging

Modulating

Blower Motor Speed

ECM Variable-Speed

Configuration

Upflow/Horizontal

Gas Conversion Kit

Available

Installation Available

Yes

Performance

AFUE

97 %

Heating BTU

100000

High Fire Input

100000 BTU

High Fire Output

97000 BTU

Low Fire Input

50000 BTU

Low Fire Output

48500 BTU

Maximum Air Flow

2000 CFM

Ultra Low NOx Emissions

NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.

Low NOx Emissions

NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.

Yes

Electrical Data

Voltage

115 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

15.4 Amps

Recommended Breaker Size

15 Amps

Dimensions

Flue Connection Size

2 or 3 Inches

Cabinet Width

21 Inches

Product Height

34 1/2 Inches

Product Width

21 Inches

Product Depth

28 3/4 Inches

Product Weight

144 Pounds

Shipping Weight

144 Pounds

Certifications

ETL Listed

Yes

Energy Star Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

AHRI Reference Number

7424268

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

5 Years

Heat Exchanger Warranty

20 Years

Overview

Product Category

Furnace

General Information

Type

Heat Pump Condenser

Product Line

GSZ16

Product Category

Heat Pump

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Heating and Cooling

Refrigerant Type

R-410A

Installation Location

Outdoor

Compressor Stages

Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.

Single Stage

DOE Regional Compliance

In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.

Nationwide

Installation Available

Yes

Performance

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

3.0 Tons

Cooling BTU

36000

Cooling Capacity

36000 BTU

SEER

16.0

Maximum Sound Level

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

73 dB

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

19 Amps

Recommended Breaker Size

30 Amps

Dimensions

Suction Connection Size

7/8 Inch

Liquid Connection Size

3/8 Inch

Product Height

40 Inches

Product Width

35 1/2 Inches

Product Depth

35 1/2 Inches

Product Weight

220 Pounds

Shipping Weight

240 Pounds

Certifications

Energy Star Listed

Yes

ETL Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

Limited* 10 Years Years

Overview

Product Category

Heat Pump

General Information

Type

Evaporator Coil

Product Line

CAPF

Product Category

Evaporator Coil

Refrigerant Type

R-410A

Casing

Cased

Style

A Coil

Configuration

Upflow/Downflow

Installation Available

Yes

Performance

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

4.0 - 5.0 Tons

Cooling BTU

60000

Nominal Minimum Cooling Capacity

48000 BTU

Dimensions

Suction Connection Size

7/8 Inch

Liquid Connection Size

3/8 Inch

Cabinet Width

21 Inches

Product Height

30 Inches

Product Width

21 Inches

Product Depth

21 Inches

Product Weight

73 Pounds

Shipping Weight

83 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

Warranty Information

Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

5 Years

Overview

Product Category

Evaporator Coil

General Information

Type

TXV Kit

Product Line

Product Category

Forced Air Accessories

Refrigerant Type

R-410A
