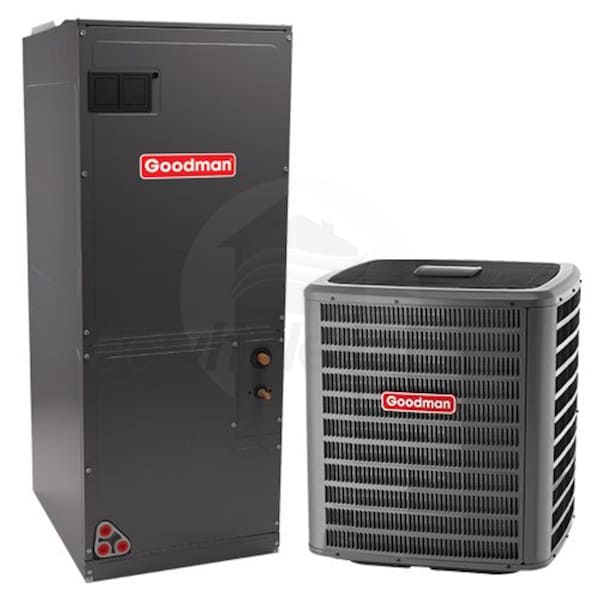

Goodman - 4.0 Ton Cooling - 46k BTU/Hr Heating - Heat Pump + Air Handler Kit - 16.0 SEER - 9.5 HSPF

Name: Goodman - 4.0 Ton Cooling - 46k BTU/Hr Heating - Heat Pump + Air Handler Kit - 16.0 SEER - 9.5 HSPF
Brand: Goodman
SKU: 87586
Availability: OutOfStock

Model: GSZ160481 AVPTC61D14 Item Number: 87586

Ask a Question

Enlarge Image

View All

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

417 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Product Category

Heat Pump & Air Handler Package

Bundle Includes 2 items

(1) Goodman 4 Ton 16 SEER Heat Pump Air Conditioner Condenser (GSZ160481)
(1) Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet (AVPTC61D14)

View Full Bundle

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features & Bundle Details

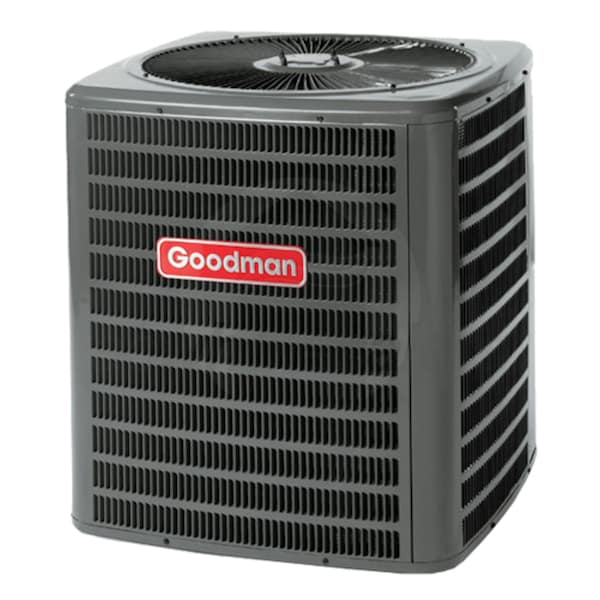

Overview for Goodman GSZ160481 AVPTC61D14

The Goodman GSZ160481 Heat Pump Air Conditioner Condenser includes sound-dampening features that help ensure that your cooling system doesn't interfere with a good night's sleep. Goodman GSZ160481 Heat Pump Air Conditioner condenser rely on a quiet condenser fan system - a three-bladed fan and a unique louvered sound-control top - to reduce fan-related noise. With its 16 SEER rating, the Goodman GSZ160481 Heat Pump Air Conditioner will help reduce energy consumption throughout the life of the system. Goodman Air Conditioners has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

The Goodman GSZ16 GSZ160481 up to 16 SEER Heat Pump Air Conditioner Condenser

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman heat pump air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

A cool history for the Goodman GSZ16 GSZ160481 Heat Pump Air Conditioner Condenser

Long ago the HVAC industry determined that the combination of copper tubing and aluminum fins provided the most efficient transfer of thermal heat available. Today, the Goodman GSZ160481 heat pump air conditioner condenser has improved upon this industry standard by making the condenser coil copper tubing smaller and smarter. The result is a Goodman heat pump air conditioning unit that can offer high efficiency, use less refrigerant, and deliver money-saving and energy saving comfort to you for years.

The Goodman GSZ16 GSZ160481 up to 16 SEER Heat Pump Air Conditioner Condenser will keep you as cool as a cucumber

Known as the best air conditioner the Goodman GSZ160481 Heat Pump Air Conditioner Condenser is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSZ16 GSZ160481 up to 16 SEER Heat Pump Air Conditioner Condenser is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

Goodman brand heat pump air conditioner condenser such as the Model GSZ160481 take pride in its company heritage.

Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman heat pump air conditioner condensers were designed to add a smile every time you open your utility bill. The Goodman GSZ16 GSZ160481 heat pump air conditioners condenser ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

The Goodman GSZ16 GSZ160481 up to 16 SEER Heat Pump Air Conditioner Condenser is considered as the art of precision

Quiet Condenser Fan Motor - High-efficiency, single-speed motor with special three blade fan design provides dependable, quiet airflow across condensing coil.

Efficient Cooling Capacity - Refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A refrigerant.

SmartShift Defrost Technology - Specialized time-delay defrost technology allows for a reliable, quiet and smooth transition when units enter defrost mode.

Quiet Operation - An acoustically engineered top on the unit helps reduce noise levels compared to units without sound control enhancements. Factory-Installed Bi-flow Liquid Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

Factory-Installed Heater Band and Suction Line Accumulator - Ensures refrigerant is ready even in extreme external temperatures for smooth and energy-efficient performance.

Heavy-Gauge, Galvanized Steel Enclosure Cabinet -A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.

Overview for Goodman AVPTC61D14 Air Conditioner Air Handler

The Goodman AVPTC61D14 Air Conditioner Air Handler design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. These Goodman AVPTC61D14 Air Conditioner air handler is ideal for either new or retrofit installations.

The Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

A history of the Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites

Known as the best modular blower around, the Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

Goodman brand Air handlers - Electric Furnaces such as the AVPTC61D14 take pride in its company heritage.

Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman modular blowers were designed to add a smile every time you open your utility bill. The Goodman AVPTC AVPTC61D14 Multi speed, Multi position Air Handler Electric Furnace ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites are considered as the art of precision

All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.

Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)

Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.

But best of all, this Goodman AVPTC AVPTC61D14 Multi speed, Multi position Air Handler Electric Furnace is compatible with the ComfortNet system of communicating control products. The ComfortNet control system actively monitors and analyzes the entire HVAC system for any irregular conditions. If detected, the control will take appropriate action and display the results in the diagnostic menu on the ComfortNet control unit. This allows for outstanding performance and accurate detection of any system related issue.

AHRI Reference Number: 8996209* *May change based on the Manufacturer revision

The manufacturer model number(s): Goodman GSZ160481 AVPTC61D14

Product Note

NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.

Bundle Includes 2 items

Goodman 4 Ton 16 SEER Heat Pump Air Conditioner Condenser
Model: GSZ160481
Item Number: 72293
Quantity: 1
Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet
Model: AVPTC61D14
Item Number: 69953
Quantity: 1

Specifications

Included In This Bundle

Bundle Overview

GSZ160481 Specifications

AVPTC61D14 Specifications

Overview

Product Category

Heat Pump & Air Handler Package

General Information

Product Category

Heat Pump & Air Handler Package

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Heating and Cooling

Configuration

Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.

Multi-Position

DOE Regional Compliance

In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.

Nationwide

Performance

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

4.0 Tons

Cooling Capacity

45500 BTU

Nominal Cooling Capacity

48000 BTU

Heating Capacity

46000 BTU

SEER

SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.

16.0

EER

EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.

13.0

HSPF

HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.

9.5

Maximum Air Flow

1455 CFM

Dimensions

Product Weight

417 Pounds

Shipping Weight

437 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

AHRI Reference Number

202542798

General Information

Type

Heat Pump Condenser

Product Line

GSZ16

Product Category

Heat Pump

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Heating and Cooling

Refrigerant Type

R-410A

Installation Location

Outdoor

Compressor Stages

Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.

Single Stage

DOE Regional Compliance

In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.

Nationwide

Installation Available

Yes

Performance

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

4.0 Tons

Cooling BTU

48000

Cooling Capacity

48000 BTU

SEER

16.0

Maximum Sound Level

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

74 dB

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

26 Amps

Recommended Breaker Size

45 Amps

Dimensions

Suction Connection Size

1 1/8 Inches

Liquid Connection Size

3/8 Inch

Product Height

34 3/8 Inches

Product Width

35 1/2 Inches

Product Depth

35 1/2 Inches

Product Weight

250 Pounds

Shipping Weight

270 Pounds

Certifications

Energy Star Listed

Yes

ETL Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

Limited* 10 Years Years

Overview

Product Category

Heat Pump

General Information

Type

Air Handler

Product Line

AVPTC

Product Category

Air Handler

Refrigerant Type

R-410A

Blower Motor Speed

Variable-Speed

Motor Type

ECM

Configuration

Multi-Position

Installation Location

Indoor

Installation Available

Yes

Performance

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

5.0 Tons

Cooling BTU

60000

Maximum Air Flow

2035 CFM

Minimum Air Flow

1360 CFM

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

9 Amps

Recommended Breaker Size

15 Amps

Dimensions

Suction Connection Size

7/8 Inch

Liquid Connection Size

3/8 Inch

Product Height

58 Inches

Product Width

24 1/2 Inches

Product Depth

21 Inches

Product Weight

112 Pounds

Shipping Weight

167 Pounds

Certifications

Country of Origin

United States

ETL Listed

Yes

AHRI Certified

Yes

Warranty Information

Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

5 Years

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

10 Limited Years

Overview

Product Category

Air Handler
