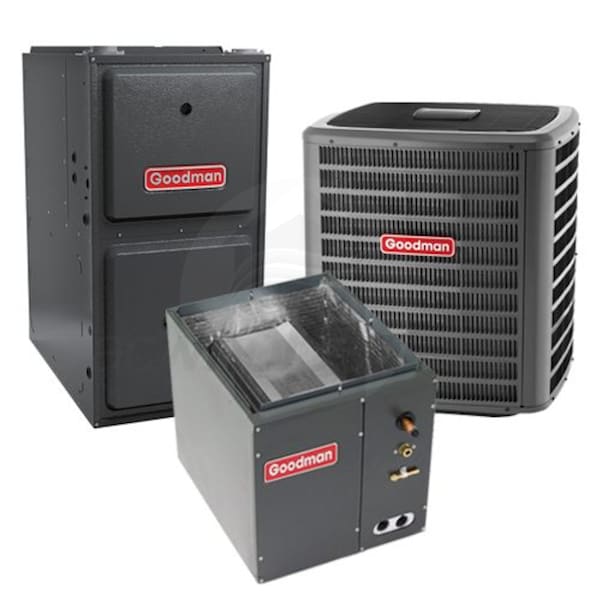

Goodman 1.5 Ton 16 SEER 96% AFUE Hybrid Dual Fuel Air Conditioner

Model: GSZ160181 CAPF3137 GMVC960403 Item Number: 87367
Ask a Question
Goodman GSZ160181 CAPF3137 GMVC960403
PREVIOUS
NEXT
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Enlarge Image
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Watch Video
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
Goodman GSZ160181 CAPF3137 GMVC960403
View All
Originally $3,519.00
Add to Cart for Lower Price
Only 2 In-Stock
Ships Thursday, March 21st
Goodman 1.5 Ton 16 SEER 96% AFUE Hybrid Dual Fuel Air Conditioner
Goodman 1.5 Ton 16 SEER 96% AFUE Hybrid Dual Fuel Air Conditioner Model: GSZ160181 CAPF3137 GMVC960403 Item Number: 87367
Only 2 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Truck Icon
Free Lift Gate ? *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee ? Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New ? This product is new and has never been used. It's in its original packaging, which has not been opened.
    Orientation
    Dedicated Upflow
View More
Bundle Includes 4 items
  • (1) Goodman GSZ16 - 1.5 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ160181)
  • (1) Goodman GMVC96 - 40k BTU - Two-Stage Gas Furnace - 96% AFUE (GMVC960403BN)
  • (1) Goodman CAPF - 2.5 - 3.0 Ton - Upflow/Downflow A Coil - Cased - 17.5" Width (CAPF3137B6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSZ160181 CAPF3137 GMVC960403

Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing - building the most reliable and refreshingly affordable indoor comfort products in the market. The complete line of Goodman brand products are built on the principles of founder Harold Goodman, a former air conditioning contractor. Building Goodman products to Harold's standards, and protecting those products with some of the best limited warranties in the industry, has helped to make the Goodman brand widely recognized as a leading brand in the residential and light commercial heating, ventilation and air conditioning industry today.
  • AHRI Reference Number: 8327048* *May change based on the Manufacturer revision
  • The manufacturer model number(s): Goodman GSZ160181 CAPF3137B6 GMVC960403BN TX2N4
  • Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    GSZ160181 Specifications

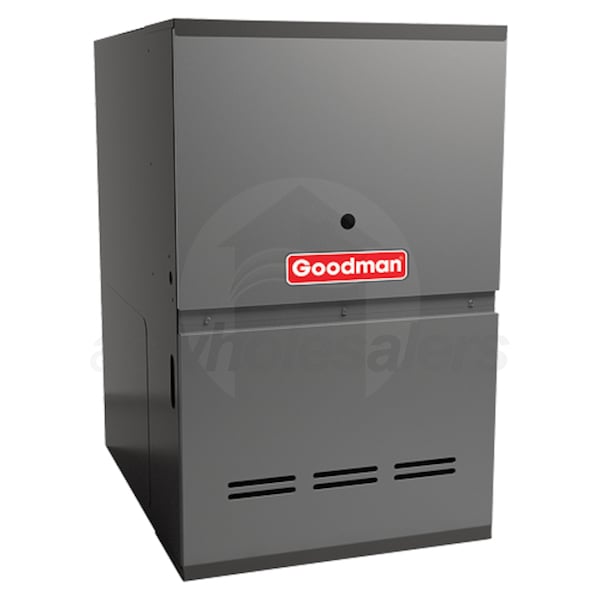

    GMVC960403BN Specifications

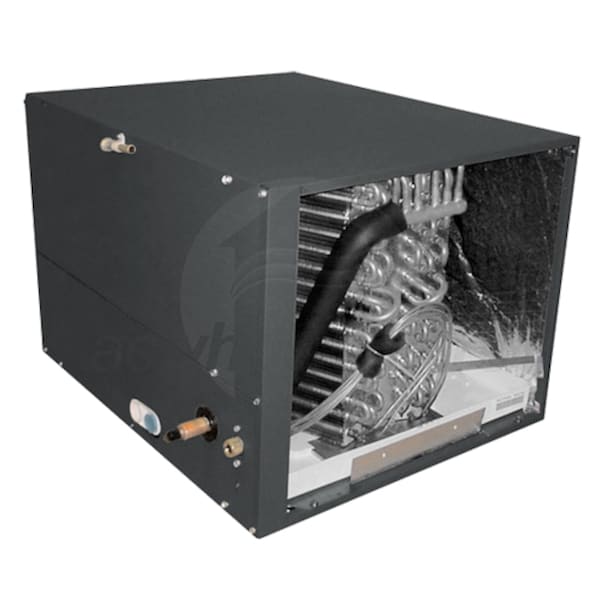

    CAPF3137B6 Specifications

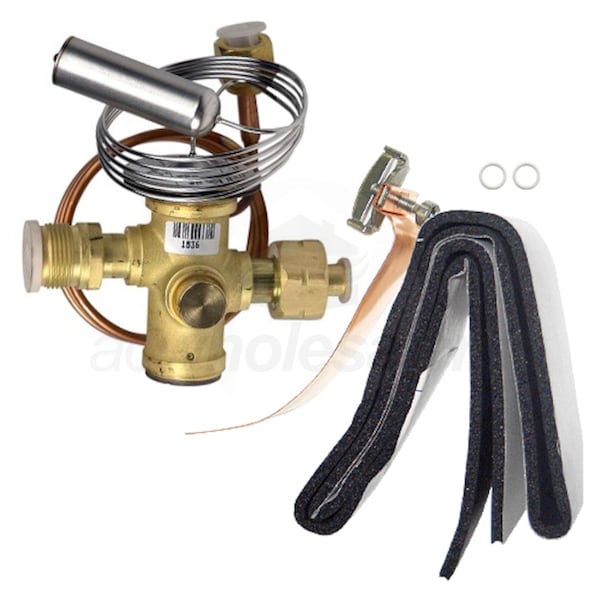

    TX2N4A Specifications
    General Information
    Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Dedicated Upflow
    Performance
    Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.5 Tons
    Nominal Heating Capacity
    40000 BTU
    SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    96 %
    General Information
    Type
    Heat Pump
    Product Line
    GSZ16
    Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages ? Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single
    DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Nominal Capacity
    18000 BTU
    Heating Capacity
    18000 BTU
    Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.5 Tons
    SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    72 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    12.2 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Product Height
    36 3/8 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    174 Pounds
    Shipping Weight
    189 Pounds
    Liquid Valve Connection Size
    3/8 Inch
    Suction Valve Connection Size
    3/4 Inch
    Certifications
    Country of Origin
    United States
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    5 Years
    General Information
    Type
    Gas Furnace
    Product Line
    GMVC96
    Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Type ? Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
    ECM Variable-Speed
    Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Performance
    Nominal Heating Capacity
    40000 BTU
    High Fire Input
    40000 BTU
    High Fire Output
    38400 BTU
    Low Fire Input
    28000 BTU
    Low Fire Output
    26880 BTU
    AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    96 %
    Maximum Air Flow
    1200 CFM
    Low NOx Emissions ? NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7.8 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    34 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 3/4 Inches
    Shipping Weight
    114 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7368841
    Warranty Information
    Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Shape
    A Coil
    Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Performance
    Nominal Capacity
    36000 BTU
    Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 - 3.0 Tons
    Nominal Minimum Cooling Capacity
    30000 BTU
    Dimensions
    Liquid Connection Size
    3/8 Inch
    Suction Connection Size
    3/4 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    30 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Shipping Weight
    53 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    TXV Kit
    Product Line
    TX
    Refrigerant Type
    R-410A
    Dimensions
    Shipping Weight
    2 Pounds
