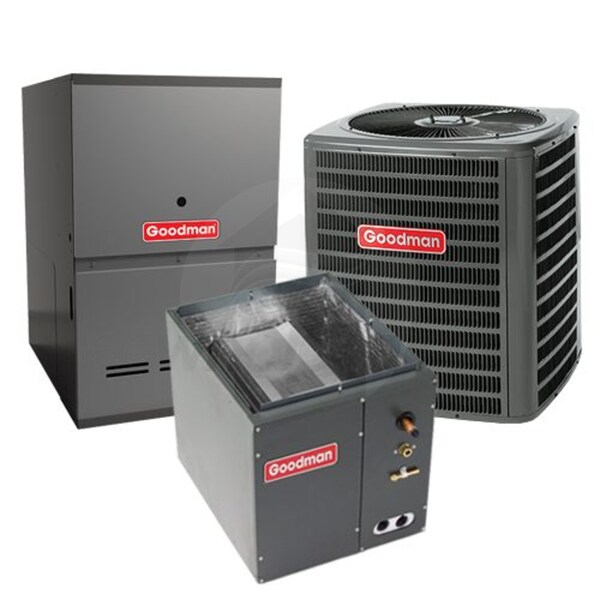

Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.0 SEER - 80% AFUE - For Downflow Installation

Model: GSZ140241 CAPF3137 GCVC80803 Item Number: 88408
Goodman GSZ140241 CAPF3137 GCVC80803
PREVIOUS
NEXT
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Enlarge Image
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Watch Video
Goodman GSZ140241 CAPF3137 GCVC80803
Watch Video
Goodman GSZ140241 CAPF3137 GCVC80803
Watch Video
Goodman GSZ140241 CAPF3137 GCVC80803
Watch Video
Goodman GSZ140241 CAPF3137 GCVC80803
Watch Video
Goodman GSZ140241 CAPF3137 GCVC80803
Watch Video
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
Goodman GSZ140241 CAPF3137 GCVC80803
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    302 Pounds Learn More
    302 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace & Heat Pump Package
Bundle Includes 4 items
  • product image
    (1) Goodman GCVC80 - 80k BTU - Two-Stage Gas Furnace - 80% AFUE (GCVC800803BX)
  • product image
    (1) Goodman GSZ14 - 2 Ton - Heat Pump - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ140241)
  • product image
    (1) Goodman 2.5 to 3 Ton 17.5 in. Wide Air Conditioner Cased Coil (CAPF3137B6)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSZ140241 CAPF3137 GCVC80803

The Goodman GSZ140241 Heat Pump Air Conditioner Condenser includes sound-dampening features that help ensure that your cooling system doesn't interfere with a good night's sleep. Goodman GSZ140241 Heat Pump Air Conditioner condenser rely on a quiet condenser fan system - a three-bladed fan and a unique louvered sound-control top - to reduce fan-related noise. With its 14 SEER rating, the Goodman GSZ140241 Heat Pump Air Conditioner will help reduce energy consumption throughout the life of the system. Goodman Air Conditioners has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

The Goodman GSZ14 GSZ140241 up to 15 SEER Heat Pump Air Conditioner Condenser

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman heat pump air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

A cool history for the Goodman GSZ14 GSZ140241 Heat Pump Air Conditioner Condenser

Long ago the HVAC industry determined that the combination of copper tubing and aluminum fins provided the most efficient transfer of thermal heat available. Today, the Goodman GSZ140241 heat pump air conditioner condenser has improved upon this industry standard by making the condenser coil copper tubing smaller and smarter. The result is a Goodman heat pump air conditioning unit that can offer high efficiency, use less refrigerant, and deliver money-saving and energy saving comfort to you for years.

The Goodman GSZ14 GSZ140241 up to 15 SEER Heat Pump Air Conditioner Condenser will keep you as cool as a cucumber

Known as the best air conditioner the Goodman GSZ140241 Heat Pump Air Conditioner Condenser is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSZ14 GSZ140241 up to 15 SEER Heat Pump Air Conditioner Condenser is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

Goodman brand heat pump air conditioner condenser such as the Model GSZ140241 take pride in its company heritage.

Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman heat pump air conditioner condensers were designed to add a smile every time you open your utility bill. The Goodman GSZ14 GSZ140241 heat pump air conditioners condensers ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

The Goodman GSZ14 GSZ140241 up to 15 SEER Heat Pump Air Conditioner Condenser is considered as the art of precision

Quiet Condenser Fan Motor - High-efficiency, single-speed motor with special three blade fan design provides dependable, quiet airflow across condensing coil.

Efficient Cooling Capacity - Refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A refrigerant.

Quiet Operation - An acoustically engineered top on the unit helps reduce noise levels compared to units without sound control enhancements.

Factory-Installed Bi-flow Liquid Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

Factory-Installed Heater Band and Suction Line Accumulator - Ensures refrigerant is ready even in extreme external temperatures for smooth and energy-efficient performance.



Overview for Goodman CAPF3137B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil

The Goodman CAPF3137B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPF3137B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

Using this Goodman CAPF3137B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is a breeze.

The best indoor comfort system is the kind you don't have to think or worry about. The Goodman CAPF3137B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil starts to work the moment you need it and then runs quietly and efficiently year after year. The Goodman CAPF3137B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coils have features designed to provide outstanding performance. Goodman brand Air Conditioning Evaporator Coils use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy efficient trend you'll love for many years.

The Goodman CAPF3137B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is home comfort that won't blow your budget.

The Goodman Air Conditioner and Heater manufacturer wants you to smile every time you open your utility bill, so the Goodman CAPF3137B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is designed to function with a multitude of heating and cooling Goodman branded products.
Goodman utilizes cutting edge, efficient technologies such as all aluminum coils, thermoplastic drain pans and is optimized for use with R410-A refrigerant. The All-Aluminum evaporator coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties.

Goodman takes pride in its company heritage when manufacturing the Goodman CAPF3137B6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil.

Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy efficient indoor comfort solutions using advanced technology. But the company ultimately adheres to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.

Overview for Goodman GCVC80803BX 80% AFUE 80,000 BTU Downflow Variable Speed Gas Furnace Heater

The Goodman GCVC80 High-Efficiency Gas Furnace with two-stage gas valve and a variable-speed circulating blower provides efficient and economical performance. Unlike single-stage gas furnaces that operate 'all on' or 'all off,' a Goodman two-stage gas furnace typically runs at the lowest possible speed to precisely maintain a constant, steady temperature in your home. A two-stage gas furnace optimizes its heating output to maximize indoor comfort and lower energy costs. When operating at low-speed levels, your Goodman gas furnace consumes less energy to keep your home comfortable. In addition, the 80% AFUE rating on this gas furnace means that 80 cents of every $1.00 of heating energy expense warms your home.

The Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC80803BX Gas Furnace Heaters.

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman Gas Furnace Heaters live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

The Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC80803BX Gas Furnace Heaters will keep you as warm as you wish.

The best gas furnace heater is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all winter long as needed. The Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible SeriesGCVC80803BX is loaded with features designed to provide outstanding performance for years to come. Goodman Gas Furnaces use advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy efficient warming trend that's designed to stay for many years.

Do high utility bills make you hot blooded? Turn to a Goodman GCVC80803BX Gas Furnace!

High heating bills burn us up, too. Goodman offers a complete line of gas furnace heaters that are priced to help add comfort to your budget. Goodman wants you to smile every time you open your utility bill, so Goodman designed the GCVC80803BX gas furnace units with proven energy efficient technology. Goodman brand heaters and air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget.

Goodman brand heaters such as the GCVC80803BX Gas furnace take pride in its company heritage.

The Goodman GCVC80803BX air conditioners ultimately adhere to some old-fashioned values. Goodman believes in the integrity of the American worker and that's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

The Goodman GCVC80803BX gas furnaces simply work the way they're supposed to, making each one a thing of beauty. When you talk about the Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC80803BX it's considered as the art of precision.

Aluminized Steel Tubular Primary Heat Exchanger - Distinctive tubular aluminized steel construction formed using wrinkle-bend technology results in an extremely durable heat exchanger. Paired with a stainless-steel secondary heat exchanger, this combination provides reliability, durability and efficiency.

Two-Stage Gas Valve - The Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC80803BX reduces energy needed during moderate demand to deliver outstanding comfort and efficiency as compared to single-stage gas valves.

ComfortNet Communicating System Compatible - Continuously monitors system performance and allows remote control of system as an option.

Self-calibrating modulating gas valve - Auto-configures for each installation.

Durable Silicon Nitride Igniter - Eliminates the need for an energy-wasting pilot light.

Quiet, Two-Stage, Induced-Draft Blower - Provides precise control and enhanced energy-efficient performance as compared to a natural draft furnace.

Efficient and Quiet Variable-Speed ECM Circulator Motor - Provides quiet system startup and shutdown with highly efficient performance.

Self-Diagnostic Control Board - Silently and consistently monitors the gas furnace to ensure the GCVC80803BX furnace components are all working properly and helps to achieve the energy efficient performance too. Also the gas furnace stores the last diagnostic codes in memory; and indicates through a flashing LED for quick troubleshooting of the Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC80803BX gas furnace.

Thermally-Insulated Cabinet - The fully insulated cabinet means air leakage of less than 2% to maximize the heat transfer efficiency and lower blower noise.

But best of all, this Goodman Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC80803BX gas furnace is compatible with the ComfortNet system of communicating control products. The ComfortNet control system actively monitors and analyzes the entire HVAC system for any irregular conditions. If detected, the control will take appropriate action and display the results in the diagnostic menu on the ComfortNet control unit. This allows for outstanding performance and accurate detection of any system related issue.



Overview for Goodman TX2N4 Air Conditioner TXV Valve for R410A Refrigerant

The Goodman Goodman TX2N4 Air Conditioner TXV or thermal expansion valve (often abbreviated as TEV, TXV or TX valve) is a component in refrigeration and air conditioning systems that controls the amount of refrigerant flow into the evaporator thereby controlling the superheating at the outlet of the evaporator. Available in R410A Refrigerant to meet your installation requirements.

This Goodman TX2N4 Air Conditioner thermostatic expansion valve or TXV is a precision device. It is designed to regulate the rate at which liquid refrigerant flows into the evaporator from the condenser. This controlled flow is necessary to maximize the efficiency of the evaporator while preventing excess liquid refrigerant from returning to the compressor.

How does the Goodman TX2N4 Air Conditioner TXV Valve for R410A Refrigerant work?

As the Goodman TX2N4 Air Conditioner TXV regulates the rate at which liquid refrigerant flows into the evaporator, it maintains a proper supply of refrigerant by matching this flow rate against how quickly the refrigerant evaporates (boils off) in the evaporator coil. The Goodman TX2N4 Air Conditioner TXV responds to two variables in order to properly maintain efficiency. The temperature of the refrigerant vapor as it leaves the evaporator and the pressure in the evaporator itself. The Goodman TX2N4 Air Conditioner TXV does this by using a movable valve pin against the spring pressure to precisely control the flow of liquid refrigerant into the evaporator.

By performing these actions the Goodman TX2N4 Air Conditioner TXV can maintain the required pressure for the SEER Rating as dictated by your system. This Goodman TX2N4 Air Conditioner TXV is a field installed accessory. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
  • AHRI Reference Number: 205016649 * *May change based on the Manufacturer revision
  • The manufacturer model number(s): GSZ140241 GCVC80803BX CAPF3137B6 TX2N4A
  • Product Note
    NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Bundle Includes 4 items
    • product kit image
      Goodman GCVC80 - 80k BTU - Two-Stage Gas Furnace - 80% AFUE
      Model: GCVC800803BX
      Item Number: 100095
      Quantity: 1
    • product kit image
      Goodman GSZ14 - 2 Ton - Heat Pump - 14 Nominal SEER - Single-Stage - R-410A Refrigerant
      Model: GSZ140241
      Item Number: 50171
      Quantity: 1
    • product kit image
      Goodman 2.5 to 3 Ton 17.5 in. Wide Air Conditioner Cased Coil
      Model: CAPF3137B6
      Item Number: 26625
      Quantity: 1
    • product kit image
      Goodman TXV Kit - 1.5-2 Ton - R-410A
      Model: TX2N4A
      Item Number: 26402
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Furnace & Heat Pump Package
    General Information
    Product Category
    Furnace & Heat Pump Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Variable-Speed
    Coil Width
    17.5 Inches
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling Capacity
    22800 BTU
    Nominal Cooling Capacity
    24000 BTU
    Heating BTU
    80000
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.5
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    8.20
    Maximum Air Flow
    870 CFM
    Dimensions
    Product Weight
    302 Pounds
    Shipping Weight
    320 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    205016649
    General Information
    Type
    Gas Furnace
    Product Line
    GCVC80
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Variable-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow/Horizontal
    Gas Conversion Kit
    Available
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    Installation Available
    Yes
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    64000 BTU
    Low Fire Input
    56000 BTU
    Low Fire Output
    44800 BTU
    Maximum Air Flow
    1200 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7.75 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    33 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 Inches
    Shipping Weight
    109 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    202274190
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Heat Exchanger Warranty
    Lifetime Years
    Overview
    Product Category
    Furnace
    General Information
    Type
    Heat Pump Condenser
    Product Line
    GSZ14
    Product Category
    Heat Pump
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    72 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    15 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    34 1/2 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    142 Pounds
    Shipping Weight
    156 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    Overview
    Product Category
    Heat Pump
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Installation Available
    Yes
    TXV Installed
    No
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 - 3.0 Tons
    Cooling BTU
    36000
    Nominal Minimum Cooling Capacity
    30000 BTU
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    30 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    53 Pounds
    Shipping Weight
    63 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Evaporator Coil
    General Information
    Type
    TXV Kit
    Product Line
    TX
    Product Category
    Forced Air Accessories
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
    Overview
    Product Category
    Forced Air Accessories
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Manuals
    View More
    Share
    ×
    Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.0 SEER - 80% AFUE - For Downflow Installation
    Goodman GSZ140241 CAPF3137 GCVC80803
    Loading
    Goodman GSZ140241 CAPF3137 GCVC80803
    Goodman GSZ140241 CAPF3137 GCVC80803
    Goodman GSZ140241 CAPF3137 GCVC80803
    Goodman GSZ140241 CAPF3137 GCVC80803
    Goodman GSZ140241 CAPF3137 GCVC80803
    Goodman GSZ140241 CAPF3137 GCVC80803
    Goodman GSZ140241 CAPF3137 GCVC80803
    Goodman GSZ140241 CAPF3137 GCVC80803
    Watch Video
    Goodman GSZ140241 CAPF3137 GCVC80803
    Watch Video
    Goodman GSZ140241 CAPF3137 GCVC80803
    Watch Video
    Goodman GSZ140241 CAPF3137 GCVC80803
    Watch Video
    Goodman GSZ140241 CAPF3137 GCVC80803
    Watch Video
    Goodman GSZ140241 CAPF3137 GCVC80803
    Watch Video
    Goodman GSZ140241 CAPF3137 GCVC80803
    Goodman GSZ140241 CAPF3137 GCVC80803
    Goodman GSZ140241 CAPF3137 GCVC80803
    Goodman GSZ140241 CAPF3137 GCVC80803
    ×
    Customer Review Images
    Loading
    Scroll Up ArrowTo Top
