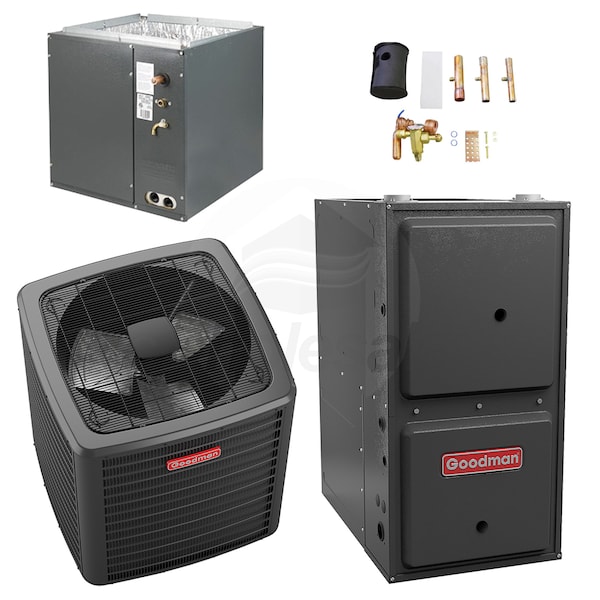

Goodman - 5.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 18.5 SEER2 - 96% AFUE - Downflow

Model: GSXV906010 GCVC961005CN CAPF4961C6 TXV Item Number: 145483
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
PREVIOUS
NEXT
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Enlarge Image
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    539 Pounds Learn More
    539 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace & Air Conditioner Package
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 4 items
  • product image
    (1) Goodman GSXV9 - 5.0 Ton - Air Conditioner - 19.2 SEER2 - Inverter - R-410A Refrigerant - Ultimate (GSXV906010)
  • product image
    (1) Goodman 96% AFUE 100,000 BTU Variable Speed Downflow Gas Furnace (GCVC961005CN)
  • product image
    (1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961C6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSXV9 air conditioner, a GCVC96 furnace, and a cased CAPF evaporator coil making it the ideal solution for most parts of the country. It's the perfect kit for areas that use an average amount of cooling but want a variable-speed furnace for the long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV air conditioner and furnace kit fits the bill perfectly.
  • High Efficiency Scroll Compressor
  • This unit utilizes a variable-speed swing and scroll compressor.
  • Quiet Comfort
  • This condenser features a quiet, high-efficiency variable-speed ECM outdoor fan motor and a new venturi top panel for improved airflow and less noise.
  • Integrated Communicating ComfortBridge™ Technology
  • This air conditioner is compatible with Goodman's ComfortBridge™ communicating controls. A ComfortBridge™ control streamlines the installation and maintenance processes by detecting your equipment and providing diagnostics.
  • Coolcloud™ Compatible
  • Licensed contractors can now wirelessly diagnose from their phone or tablet via Bluetooth using the Coolcloud™ application.
  • Copeland ComfortAlert™ Built-In Diagnostics
  • ComfortAlert™ diagnostics give homeowners peace-of-mind. This diagnostic module monitors and analyzes data from the Copeland Scroll compressor so you're able to pinpoint the root cause of the problem quickly and more accurately.
  • Copper Tube/Enhanced Aluminum Fin Coil
  • The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency. The fins serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • Field-Installed Filter Drier
  • A bi-flow filter drier is provided for use on the liquid line of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
  • Ultra-Quiet
  • A compressor covered in a high-density sound blanket along with its variable-speed swing and scroll compressor, makes for an extremely quiet air conditioner.
  • Secure Cabinet
  • The removable grille-style top design is UL 60335-2-40 compliant.
  • Heavy-Gauge Galvanized-Steel Cabinet
  • This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish with 500-hour salt-spray approval, and a steel louver coil guard that protects your equipment from wear and tear.
  • Advanced Heat Exchanger Design
  • The GCVC96 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
  • Secondary Heat Exchanger
  • This furnace produces additional heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.
  • Venting Options
  • The GCVC96 offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.
  • ComfortBridge™ Compatible
  • This furnace is compatible with Goodman's ComfortBridge™ communicating controls. ComfortBridge™ streamlines the installation and maintenance processes by detecting the equipment and providing diagnostics and troubleshooting.
  • Auto-Comfort
  • Goodman's Auto-Comfort mode is available in applications where the GCVC96 is used to distribute cooled air. This mode scales output up to the cooling demand in stages for improved comfort, efficiency, and dehumidification.
  • Easy Integration
  • The GCVC960403BN makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Condensate Management
  • The CAPF features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
    • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GSXV906010 Specifications
    GCVC961005CN Specifications
    CAPF4961C6 Specifications
    TXV-V60 Specifications
    General Information
    Product Category
    Furnace & Air Conditioner Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Refrigerant Type
    R-410A
    Blower Motor Type
    ECM Variable-Speed
    Coil Width
    21 Inches
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Variable Speed
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    96 %
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling Capacity
    60000 BTU
    Nominal Cooling Capacity
    60000 BTU
    Heating BTU
    100000
    Maximum Air Flow
    2000 CFM
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    18.5
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    11.5
    Dimensions
    Cabinet Width
    21 Inches
    Product Weight
    539 Pounds
    Shipping Weight
    581 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    210710526
    General Information
    Type
    Condenser
    Product Line
    GSXV9
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Variable Speed
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling BTU
    60000
    Cooling Capacity
    52000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    75 dB
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    19.2
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    31.1 Amps
    Recommended Breaker Size
    35 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    41 3/4 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    35 1/2 Inches
    Product Weight
    321 Pounds
    Shipping Weight
    353 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years
    Compressor Warranty
    LIFETIME Years
    General Information
    Type
    Gas Furnace
    Product Line
    GCVC96
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Variable-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow/Horizontal
    Gas Conversion Kit
    Available
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    Installation Available
    Yes
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    96 %
    Heating BTU
    100000
    High Fire Input
    100000 BTU
    High Fire Output
    96000 BTU
    Low Fire Input
    70000 BTU
    Low Fire Output
    67200 BTU
    Maximum Air Flow
    2000 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    14.4 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    21 Inches
    Product Height
    34 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    145 Pounds
    Shipping Weight
    145 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7368844
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Heat Exchanger Warranty
    20 Years
    Overview
    Product Category
    Furnace
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Installation Available
    Yes
    TXV Installed
    No
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 - 5.0 Tons
    Cooling BTU
    60000
    Nominal Minimum Cooling Capacity
    48000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    73 Pounds
    Shipping Weight
    83 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Evaporator Coil
    General Information
    Type
    TXV Kit
    Product Line
    TXV
    Product Category
    Forced Air Accessories
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
    Overview
    Product Category
    Forced Air Accessories
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Manuals
    View More
    Share
    ×
    Goodman - 5.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 18.5 SEER2 - 96% AFUE - Downflow
    Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
    Loading
    Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
    Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
    Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
    Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
    Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
    Goodman GSXV906010 GCVC961005CN CAPF4961C6 TXV
    ×
    Customer Review Images
    Loading
    Scroll Up ArrowTo Top
