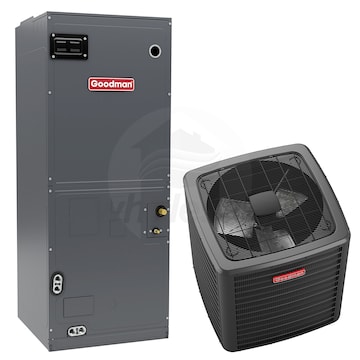

Goodman - 3.0 Ton Cooling - Air Conditioner + Variable Speed Air Handler System - 17.2 SEER2

Model: GSXC703610 AVPTC37C14 Item Number: 125438
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Goodman GSXC703610 AVPTC37C14
PREVIOUS
NEXT
Goodman GSXC703610 AVPTC37C14
Goodman GSXC703610 AVPTC37C14
Goodman GSXC703610 AVPTC37C14
Goodman GSXC703610 AVPTC37C14
Goodman GSXC703610 AVPTC37C14
Enlarge Image
Goodman GSXC703610 AVPTC37C14
Goodman GSXC703610 AVPTC37C14
Goodman GSXC703610 AVPTC37C14
Goodman GSXC703610 AVPTC37C14
Goodman GSXC703610 AVPTC37C14
View All
Originally $4,468.00
Add to Cart for Lower Price
synchrony card icon
$54 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Click for important monthly payment and offer information.
Factory items ship direct from the manufacturer
Shipping times vary
In-Stock
Ships in 2-5 Business Days
Shipping to60601
Goodman - 3.0 Ton Cooling - Air Conditioner + Variable Speed Air Handler System - 17.2 SEER2
Goodman - 3.0 Ton Cooling - Air Conditioner + Variable Speed Air Handler System - 17.2 SEER2 Model: GSXC703610 AVPTC37C14 Item Number: 125438
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    248 Pounds Learn More
    248 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Conditioner & Air Handler Package
    Operating Mode
    Cooling
View More
Bundle Includes 2 items
  • product image
    (1) Goodman GSXC7 - 3.0 Ton - Air Conditioner - 17.2 SEER2 - Two Stage - R-410A Refrigerant (GSXC703610)
  • product image
    (1) Goodman 2.5 to 3.5 Ton Air Conditioner Air Handler Smart Frame Cabinet (AVPTC37C14)
View Full Bundle
Size (Tons)
Learn More
Size (Tons)
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Select Attribute
Cabinet Width
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSXC703610 AVPTC37C14

A Goodman high efficiency central air kit is the perfect way to upgrade your home's HVAC system. This kit contains a GSXC703610 air conditioner and an AVPTC37C14 air handler with a variable-speed blower motor. The variable-speed ECM motor provides you with energy efficient circulation. While each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, their energy efficiency is the real selling point. State-of-the-art design and technology make the GSXC703610 AVPTC37C14 an excellent addition to nearly any household looking to reduce their energy spending.
  • High Efficiency Scroll Compressor
  • This unit utilizes a high efficiency Two-Stage Copeland Ultra-Tech scroll compressor.
  • Quiet Comfort
  • This condenser also features a quiet two-speed ECM outdoor fan motor and a new venturi top panel for improved airflow and less noise.
  • Integrated Communicating ComfortBridge™ Technology
  • This air conditioner is compatible with Goodman's ComfortBridge™ communicating controls. A ComfortBridge™ control streamlines the installation and maintenance processes by automatically detecting your equipment and providing diagnostics.
  • CoolCloud™ Compatible
  • Commissioning and diagnostics via Bluetooth indoor board using the CoolCloud™ application.
  • Copeland™ ComfortAlert™ Built In Diagnostics
  • ComfortAlert™ diagnostics give homeowners peace-of-mind. This diagnostic module monitors and analyzes data from the Copeland Scroll compressor so you're able to pinpoint the root cause of the problem quickly and more accurately.
  • Copper Tube/Enhanced Aluminum Fin Coil
  • The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency. The fins serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • Factory-Installed Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
  • Ultra-Quiet
  • A compressor covered in a high-density sound blanket along with its high efficiency Two-Stage Copeland Ultra-Tech scroll compressor, makes for an extremely quiet air conditioner.
  • Heavy-Gauge Galvanized-Steel Cabinet
  • This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish with 500-hour salt-spray approval, and a steel louver coil guard that protects your equipment from wear and tear.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Energy-Efficient Circulation
  • By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal airflow through shifting conditions in nearly any application.
  • Internal Thermostatic Expansion Valve
  • The AVPTC has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • SmartFrame™
  • This air handler features Goodman's SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Secure Cabinet
  • This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
  • Condensate Management
  • The AVPTC's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. these elements help prevent the formation of condensation and keep your system running smoothly.
  • ComfortBridge™ Compatible
  • This air handler is compatible with Goodman's ComfortBridge™ communicating controls. A ComfortBridge™ control shortens the installation and maintenance by automatically detecting your equipment and providing diagnostics and troubleshooting.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
    • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GSXC703610 Specifications
    AVPTC37C14 Specifications
    General Information
    Product Category
    Air Conditioner & Air Handler Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Blower Motor Type
    ECM Variable-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling Capacity
    36000 BTU
    Nominal Cooling Capacity
    36000 BTU
    Maximum Air Flow
    1275 CFM
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    17.2
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    12.0
    Dimensions
    Cabinet Width
    21 Inches
    Product Weight
    248 Pounds
    Shipping Weight
    382 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    208683775
    General Information
    Type
    Condenser
    Product Line
    GSXC7
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    72 dB
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    17.2
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    24.1 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    39 1/2 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    35 1/2 Inches
    Product Weight
    216 Pounds
    Shipping Weight
    238 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    Compressor Warranty
    LIFETIME Years
    General Information
    Type
    Air Handler
    Product Line
    AVPTC
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Variable-Speed
    Motor Type
    ECM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    Installation Available
    Yes
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 - 3.5 Tons
    Cooling BTU
    36000
    Maximum Air Flow
    1275 CFM
    Minimum Air Flow
    845 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    53 7/16 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    109 Pounds
    Shipping Weight
    144 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Limited Years
    Overview
