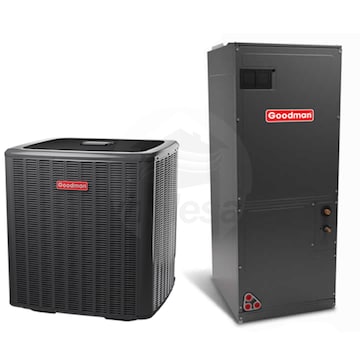

Goodman - 3.0 Ton Cooling - Air Conditioner + Air Handler System - 16.0 SEER

Model: GSXC1636AVPTC Item Number: 80610
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Goodman GSXC1636AVPTC
PREVIOUS
NEXT
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Enlarge Image
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
Goodman GSXC1636AVPTC
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    368 Pounds Learn More
    368 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Conditioner & Air Handler Package
View More
Bundle Includes 2 items
  • product image
    (1) Goodman GSXC16 - 3.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160361)
  • product image
    (1) Goodman 4 Ton Air Conditioner Air Handler Smart Frame Cabinet (AVPTC49D14)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSXC1636AVPTC

A Goodman high efficiency central air kit is the perfect way to upgrade your home's HVAC system. This kit contains a GSXC16 air conditioner and an AVPTC air handler. While each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, their energy efficiency is the real selling point. The high-efficiency 2-stage compressor helps to deliver an outstanding 16 SEER and will reduce temperature swings in your home. State-of-the-art design and technology make the GSXC1636AVPTC an excellent addition to nearly any household looking to reduce their energy spending.
  • Energy-Efficient Circulation
  • PSC blower motors are energy hogs. The ECM motor in the AVPTC provides more efficient, more intelligent airflow for your home.
  • UltraTech Compressor
  • A two-stage Copeland UltraTech scroll compressor provides the GSXC16 with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
  • Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.
  • Quiet Comfort
  • Goodman takes great pride in providing comfort that doesn't disrupt your home. The wire fan discharge grille and condenser fan motor of the GSXC16 were designed to reduce noise levels without compromising performance.
  • ComfortAlert
  • The included ComfortAlert compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the air conditioner.
  • ComfortBridge Compatible
  • This air conditioner is compatible with Goodman's ComfortBridge communicating controls. ComfortBridge shortens the installation and maintenance processes. It automatically detects your equipment and then provides diagnostics while troubleshooting.
  • Energy-Efficient Circulation
  • By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal airflow through shifting conditions in nearly any application.
  • Internal Thermostatic Expansion Valve
  • The AVPTC has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • SmartFrame
  • This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Condensate Management
  • The AVPTC's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.
    • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GSXC160361 Specifications
    AVPTC49D14 Specifications
    Overview
    Product Category
    Air Conditioner & Air Handler Package
    General Information
    Product Category
    Air Conditioner & Air Handler Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling Capacity
    36000 BTU
    Nominal Cooling Capacity
    36000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    13.0
    Maximum Air Flow
    1200 CFM
    Dimensions
    Product Weight
    368 Pounds
    Shipping Weight
    390 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    10491742
    General Information
    Type
    Condenser
    Product Line
    GSXC16
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    71 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    20 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    36 1/2 Inches
    Product Width
    35 3/4 Inches
    Product Depth
    35 3/4 Inches
    Product Weight
    201 Pounds
    Shipping Weight
    223 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years
    Compressor Warranty
    LIFETIME Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Type
    Air Handler
    Product Line
    AVPTC
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Variable-Speed
    Motor Type
    ECM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    Installation Available
    Yes
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 Tons
    Cooling BTU
    42000
    Maximum Air Flow
    1520 CFM
    Minimum Air Flow
    1040 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    24 1/2 Inches
    Product Height
    58 Inches
    Product Width
    24 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    114 Pounds
    Shipping Weight
    167 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Limited Years
    Overview
    Product Category
    Air Handler
