Goodman - 3.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit -16.0 SEER - 81% AFUE - For Upflow Installation

Model: GSXC16036 CAPF3743 GMVC81005 Item Number: 89334
Goodman GSXC16036 CAPF3743 GMVC81005
PREVIOUS
NEXT
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Enlarge Image
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
View All
Originally $4,971.00
Add to Cart for Lower Price
synchrony card icon
$56 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer
Shipping times vary
Goodman - 3.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit -16.0 SEER - 81% AFUE - For Upflow Installation
Goodman - 3.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit -16.0 SEER - 81% AFUE - For Upflow Installation Model: GSXC16036 CAPF3743 GMVC81005 Item Number: 89334
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    460 Pounds Learn More
    460 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage

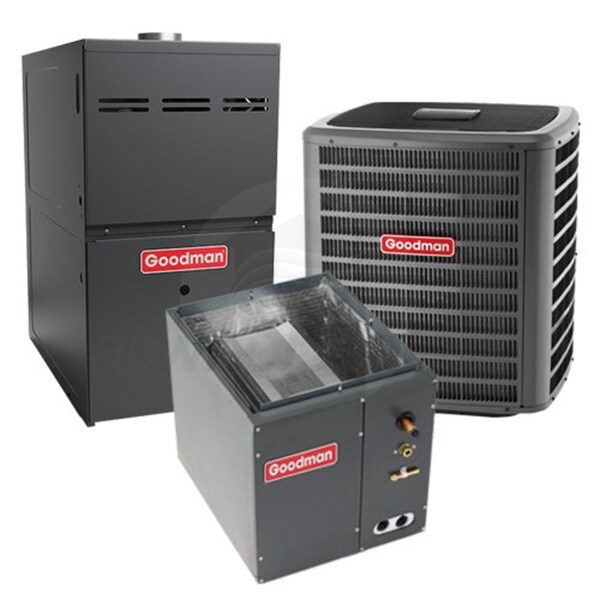

Bundle Includes 4 items
  • product image

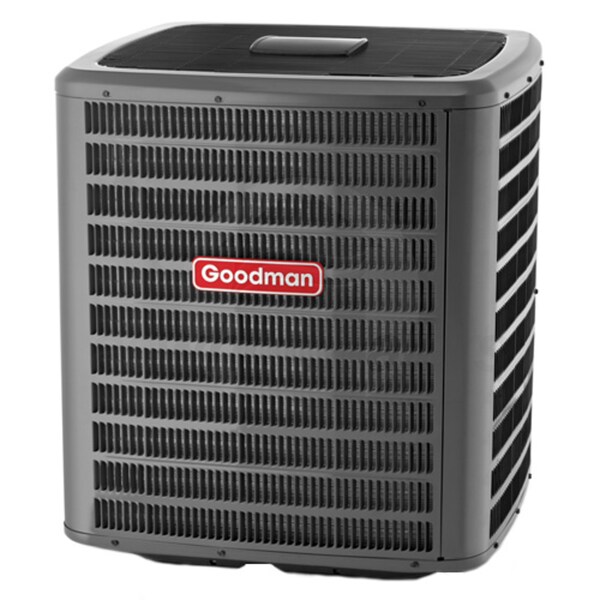

    (1) Goodman GSXC16 - 3.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160361)
  • product image

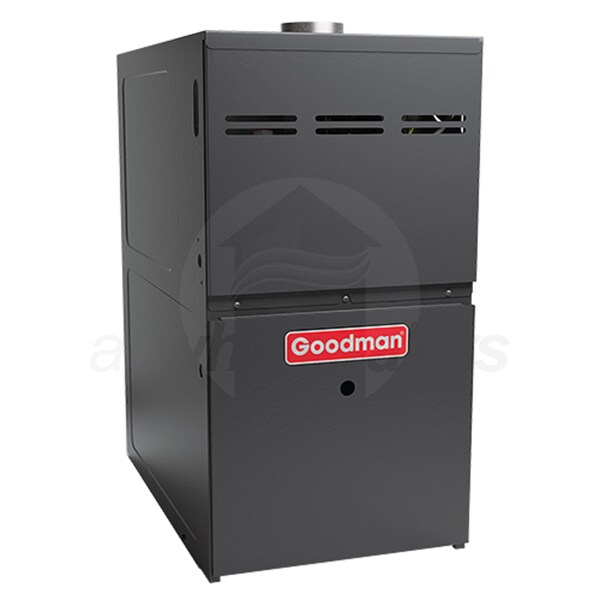

    (1) Goodman 80% AFUE 100,000 BTU 2 Stage Upflow Variable Speed Gas Furnace (GMVC801005CX)
  • product image

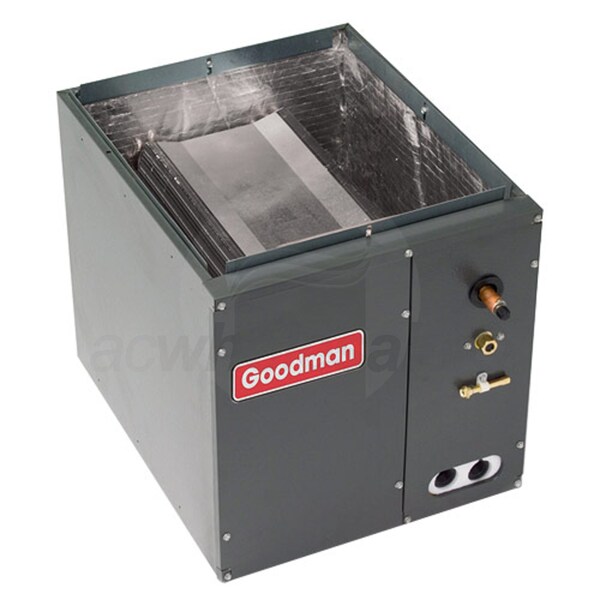

    (1) Goodman 3 Tons 21 in. Wide Air Conditioner Cased Coil (CAPFA3626C6)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSXC16036 CAPF3743 GMVC81005

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSXC16 air conditioner, a GMVC80 furnace, and a cased CAPFA evaporator coil making it the ideal solution for most parts of the country. It's the perfect kit for areas that use an average amount of cooling but want a variable speed furnace for the long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSXC16036 CAPF3743 GMVC81005 air conditioner and furnace kit fits the bill perfectly.
Product Note
NOTE: Model GMVC801005CX has been temporarily suspended from production. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
Bundle Includes 4 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
General Information
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Two Stage
Blower Motor Speed
ECM Variable-Speed
Coil Width
21 Inches
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
North
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
81 %
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling Capacity
34400 BTU
Nominal Cooling Capacity
36000 BTU
Heating BTU
100000
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
13.0
Maximum Air Flow
1150 CFM
Dimensions
Product Weight
460 Pounds
Shipping Weight
482 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
206730451
General Information
Type
Condenser
Product Line
GSXC16
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Cooling Capacity
36000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
36 1/2 Inches
Product Width
35 3/4 Inches
Product Depth
35 3/4 Inches
Product Weight
201 Pounds
Shipping Weight
223 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Overview
Product Category
Air Conditioning Condensers
General Information
Type
Gas Furnace
Product Line
GMVC80
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Two Stage
Blower Motor Speed
ECM Variable-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
80 %
Heating BTU
100000
High Fire Input
100000 BTU
High Fire Output
80000 BTU
Low Fire Input
70000 BTU
Low Fire Output
56000 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
No
Low NOx Emissions Learn More
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10.6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
4 Inches
Cabinet Width
21 Inches
Product Height
33 1/2 Inches
Product Width
21 Inches
Product Depth
28 Inches
Shipping Weight
124 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
202327701
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
10 Years
Heat Exchanger Warranty
Lifetime Years
General Information
Type
Evaporator Coil
Product Line
CAPF
Product Category
Evaporator Coil
Refrigerant Type
R-22/R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
26 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
39 Pounds
Shipping Weight
49 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
10 Years
Overview
Product Category
Evaporator Coil
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories
Reviews
View More

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Product Q&A
View More

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals
View More
Share
×
Goodman - 3.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit -16.0 SEER - 81% AFUE - For Upflow Installation
Goodman GSXC16036 CAPF3743 GMVC81005
Loading
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Watch Video
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
Goodman GSXC16036 CAPF3743 GMVC81005
×
Customer Review Images
Loading
Scroll Up ArrowTo Top
