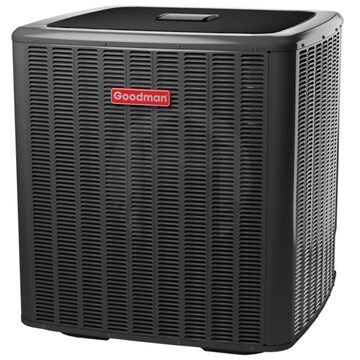

Goodman 2 Ton 16 SEER Air Conditioner Condenser 2 Stage Communicating

Name: Goodman 2 Ton 16 SEER Air Conditioner Condenser 2 Stage Communicating
Brand: Goodman
SKU: 80598
Availability: InStock
Rating: 5.00 (1 reviews)

Model: GSXC160241 Item Number: 80598

(1)

Ask a Question

Enlarge Image

View All

Add to Cart Form

Originally $2,181.00

Add to Cart for Lower Price

$346 / Month

Suggested monthly payments with 6 month financing.

Click for important monthly payment and offer information.

Factory-Direct

Ships in 4-6 Weeks

Goodman 2 Ton 16 SEER Air Conditioner Condenser 2 Stage Communicating Model: GSXC160241 Item Number: 80598

Factory-Direct

Accessories

Features

Specifications

Reviews

Product Q&A

Manuals

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.

Free Lift Gate

*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

180 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Product Category

Air Conditioning Condensers

UPC

663051578524

Size (Tons)

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features

Overview for Goodman GSXC160241

Overview for Goodman GSXC160241 Air Conditioner Condenser
When properly matched and installed, The Goodman GSXC160241 Air Conditioner Condenser offers up to 16 SEER high-efficiency performance. ”SEER” stands for Seasonal Energy Efficiency Ratio, a measure used by the U.S. Department of Energy to rate the efficiency of air conditioners. The higher the SEER, the greater the efficiency; and the lower the operating cost. In many applications, the efficiency of your Goodman brand GSXC16 Air Conditioner can be enhanced by using it in conjunction with a Goodman brand Gas Furnace that includes a variable-speed blower motor. The Goodman GSXC160241 Air Conditioner Condenser; a unit that provides you with high-efficiency, reliable performance and quiet operation.
The Goodman GSXC16 GSXC160241 Air Conditioner Condensers
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.

Product Features

Two-Stage Copeland UltraTech scroll compressor

High-density foam compressor sound blanket

ComfortNet Communicating System compatible

Expanded ComfortAlert diagnostics built in

Set-up capable with 2 low-voltage wires to outdoor unit

Diagnostic indicator lights and storage of 6 fault codes

Color-coded terminal strip for non-communicating set-up

High- and low-pressure switches

Charged for up to 15' of tubing length

Factory-installed filter dryer

Coil and ambient temperature sensors

Two-speed, super-quiet condenser fan motor

Sweat connection service valves with easy access to gauge ports

AHRI Certified; ETL Listed

Wire fan discharge grille

Steel louver coil guard

Baked-on powder paint finish

Rust-resistant coated screws

Compact footprint

Top and side maintenance access

Single-panel access to controls with space provided for field-installed accessories

When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

The manufacturer model number(s): Goodman GSXC160241

Our SKU number(s): Goodman GSXC160241

Product Note

The recommended line set size for this unit will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Accessories" tab.

Specifications

Overview

Product Category

Air Conditioning Condensers

UPC

663051578524

General Information

Type

Condenser

Product Line

GSXC16

Product Category

Air Conditioning Condensers

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Cooling

Refrigerant Type

R-410A

Installation Location

Outdoor

Compressor Stages

Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.

Two Stage

DOE Regional Compliance

In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.

Nationwide

Performance

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

2.0 Tons

Cooling BTU

24000

Cooling Capacity

24000 BTU

SEER

SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.

16.0

Maximum Sound Level

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

71 dB

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

14 Amps

Recommended Breaker Size

20 Amps

Dimensions

Suction Connection Size

3/4 Inch

Liquid Connection Size

3/8 Inch

Product Height

32 1/2 Inches

Product Width

29 1/4 Inches

Product Depth

29 1/4 Inches

Product Weight

180 Pounds

Shipping Weight

197 Pounds

Certifications

Country of Origin

United States

ETL Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

Limited* 10 Years

Compressor Warranty

LIFETIME Years

Reviews

(1)

Reviews

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals

Goodman GSXC16 Installation Instructions

Goodman GSXC16 Brochure

Goodman GSXC16 Spec Sheet

Goodman GSXC16 Warranty

Goodman GSXC18 Installation Manual
