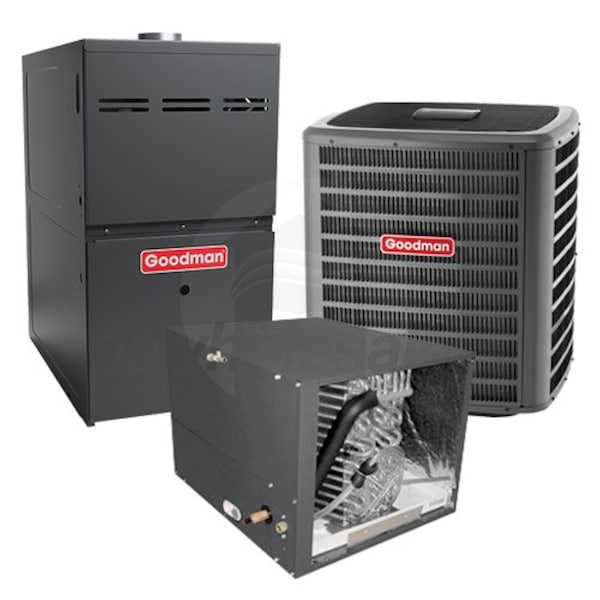

Goodman - 2.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 16.0 SEER - 81% AFUE - For Horizontal Installation

Model: GSXC160241 CHPF3642 GMVC81005 Item Number: 89222
Goodman GSXC160241 CHPF3642 GMVC81005
PREVIOUS
NEXT
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Enlarge Image
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    439 Pounds Learn More
    439 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
Bundle Includes 4 items
  • product image
    (1) Goodman 80% AFUE 100,000 BTU 2 Stage Upflow Variable Speed Gas Furnace (GMVC801005CX)
  • product image
    (1) Goodman GSXC16 - 2.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160241)
  • product image
    (1) Goodman 3 to 3.5 Ton 21 in. High Air Conditioner Horizontal Cased Coil (CHPF3642C6)
Installation Sale!
Save Up to $2000 on Select Goodman Replacement Installation.
Offer Ends 03/31/24
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSXC160241 CHPF3642 GMVC81005

When properly and installed, The Goodman GSXC160241 Air Conditioner Condenser offers up to 16 SEER high-efficiency performance. ”SEER” stands for Seasonal Energy Efficiency Ratio, a measure used by the U.S. Department of Energy to rate the efficiency of air conditioners. The higher the SEER, the greater the efficiency; and the lower the operating cost. In many applications, the efficiency of your Goodman brand GSXC16 Air Conditioner can be enhanced by using it in conjunction with a Goodman brand Gas Furnace that includes a variable-speed blower motor. The Goodman GSXC160241 Air Conditioner Condenser; a unit that provides you with high-efficiency, reliable performance and quiet operation.

The Goodman GSXC16 GSXC160241 Air Conditioner Condensers

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That’s because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

A cool history for the Goodman GSXC160241 air conditioner condenser

Long ago Goodman determined that the combination of copper tubing and aluminum fins provided the most efficient transfer of thermal heat available. Today, the Goodman GSXC160241 air conditioner has improved upon this industry standard by making the condenser coil copper tubing smaller and smarter. The result is a Goodman air conditioning unit that can offer high efficiency, use less refrigerant, and deliver money-saving and energy saving comfort to you for years.

The Goodman GSXC160241 will keep you as cool as a cucumber

Known as the best air conditioner the Goodman GSXC160241 is the kind you don’t have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSXC16 GSXC160241 is loaded with features designed to provide outstanding performance for years to come. The Goodman company use’s advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that’s designed to stay for many years.

Goodman brand air conditioners and heaters such as the GSXC160241 take pride in its company heritage.

Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSXC160241 air conditioners ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That’s why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

Goodman GSXC160241 air conditioner condensers are considered as the art of precision

Copeland Two-Stage Ultratech Scroll Compressor - - Inside of the Goodman GSXC160241 air conditioners you will find fewer moving parts and consuming less energy compared to reciprocating compressors, the compressor uses chlorine-free R-410A refrigerant and will provide years of reliable cooling comfort.

ComfortNet Communicating System Compatible - Continuously monitors the system’s operating performance and allows remote control of system as an option. The Goodman GSXC160241 air conditioners simply work the way they’re supposed to, making each one a thing of beauty.

ComfortAlert Diagnostics - Advanced diagnostics constantly monitor your air conditioner system, reducing failures and pinpointing trouble spots for a fast fix.

Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.

Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

Quiet Operation - An acoustically engineered sound control blanket helps reduce noise levels compared to units without sound control blankets.


Overview for Goodman CHPF3642C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil

The Goodman CHPF3642C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CHPF3642C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

Using this Goodman CHPF3642C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is a breeze.

The best indoor comfort system is the kind you don't have to think or worry about. The Goodman CHPF3642C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil starts to work the moment you need it and then runs quietly and efficiently year after year. The Goodman CHPF3642C6 Horizontal Cased Indoor Air Conditioner Evaporator Coils have features designed to provide outstanding performance. Goodman brand Air Conditioning Evaporator Coils use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy efficient trend you'll love for many years.

The Goodman CHPF3642C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is home comfort that won't blow your budget.

The Goodman Air Conditioner and Heater manufacturer wants you to smile every time you open your utility bill, so the Goodman CHPF3642C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is designed to function with a multitude of heating and cooling Goodman branded products. Goodman utilizes cutting edge, efficient technologies such as all aluminum coils, thermoplastic drain pans and is optimized for use with R410-A refrigerant. The All-Aluminum evaporator coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties.

Goodman takes pride in its company heritage when manufacturing the Goodman CHPF3642C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil.

Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy efficient indoor comfort solutions using advanced technology. But the company ultimately adheres to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.


Overview for Goodman GMVC81005CX Gas Furnace Heater

If you want we consider the best 80% AFUE gas furnace that the Goodman brand offers, but don't need the efficiency provided by a 90% furnace, install this furnace and enjoy the energy and money savings year after year. This gas furnace has an AFUE rating of 80%, which means that 80 cents of every $1.00 of heating energy expense warms your home.

The Goodman GMVC8 Two Stage, Variable speed, Multi-position ComfortNet Compatible Series GMVC81005CX Gas Furnace Heaters.

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That’s because Goodman Gas Furnace Heaters live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

The Goodman GMVC8 Two Stage, Variable speed, Multi-position ComfortNet Compatible Series GMVC81005CX Gas Furnace Heaters will keep you as warm as you wish.

The best gas furnace heater is the kind you don’t have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all winter long as needed. The Goodman GMVC8 Two Stage, Variable speed, Multi-position ComfortNet Compatible Series GMVC81005CX is loaded with features designed to provide outstanding performance for years to come. Goodman Gas Furnaces use advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy efficient warming trend that’s designed to stay for many years.

Do high utility bills make you hot blooded? Turn to a Goodman GMVC81005CX Gas Furnace!

High heating bills burn us up, too. Goodman offers a complete line of gas furnace heaters that are priced to help add comfort to your budget. Goodman wants you to smile every time you open your utility bill, so Goodman designed the GMVC81005CX gas furnace units with proven energy efficient technology. Goodman brand heaters and air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget.

Goodman brand heaters such as the GMVC81005CX Gas furnace take pride in its company heritage.

The Goodman GMVC81005CX air conditioners ultimately adhere to some old-fashioned values. Goodman believes in the integrity of the American worker and that’s why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States. The Goodman GMVC81005CX gas furnaces simply work the way they’re supposed to, making each one a thing of beauty. When you talk about the Goodman GMVC8 Two Stage, Variable speed, Multi-position ComfortNet Compatible Series GMVC81005CX it’s considered as the art of precision.

Heavy-Duty Aluminized-Steel Tubular Heat Exchanger - Constructed from tubular aluminized-steel, the primary heat exchanger is designed for outstanding durability and heat transfer. The use of wrinkle bend technology maintains the wall strength of the tubular design and aids in the efficient transfer of heat.

Two-Stage Gas Valve - Reduces energy needed during moderate demand to deliver outstanding comfort and efficiency as compared to single-stage gas valves. Goodman gas furnaces simply work the way they’re supposed to, making each one a thing of beauty.

Self-Diagnostic Control Board - Silently and consistently monitors the gas furnace to ensure the GMVC81005CX furnace components are all working properly and helps to achieve the energy efficient performance too. Also, this feature allows for quick troubleshooting of the Goodman GMVC8 Two Stage, Variable speed, Multi-position ComfortNet Compatible Series GMVC81005CX gas furnace.

Corrosion-Resistant Vent Variable-Speed Blower - Provides quiet system startup and shutdown with highly-efficient performance. Durable Silicon Nitride Igniter - This advanced energy-efficient technology eliminates the need for a traditional pilot light. The igniter is constructed for both strength and outstanding reliability.

Insulated Furnace Cabinet - Even the metal walls of this GMVC81005CX gas furnace support energy efficiency. A fully insulated cabinet helps to keep the heat inside the furnace and has less than a 2% air leakage rate. The insulation also assists with noise suppression when this Goodman GMVC8 Two Stage, Variable speed, Multi-position ComfortNet Compatible (%model) gas furnace is operating.

But best of all, this Goodman GCVC8 Two Stage, Variable-speed, Dedicated Downflow GMVC81005CX gas furnace is compatible with the ComfortNet system of communicating control products. The ComfortNet control system actively monitors and analyzes the entire HVAC system for any irregular conditions. If detected, the control will take appropriate action and display the results in the diagnostic menu on the ComfortNet control unit. This allows for outstanding performance and accurate detection of any system related issue.



Overview for Goodman TX2N4 Air Conditioner TXV Valve for R410A Refrigerant

The Goodman Goodman TX2N4 Air Conditioner TXV or thermal expansion valve (often abbreviated as TEV, TXV or TX valve) is a component in refrigeration and air conditioning systems that controls the amount of refrigerant flow into the evaporator thereby controlling the superheating at the outlet of the evaporator. Available in R410A Refrigerant to meet your installation requirements.

This Goodman TX2N4 Air Conditioner thermostatic expansion valve or TXV is a precision device. It is designed to regulate the rate at which liquid refrigerant flows into the evaporator from the condenser. This controlled flow is necessary to maximize the efficiency of the evaporator while preventing excess liquid refrigerant from returning to the compressor.

How does the Goodman TX2N4 Air Conditioner TXV Valve for R410A Refrigerant work?

As the Goodman TX2N4 Air Conditioner TXV regulates the rate at which liquid refrigerant flows into the evaporator, it maintains a proper supply of refrigerant by matching this flow rate against how quickly the refrigerant evaporates (boils off) in the evaporator coil. The Goodman TX2N4 Air Conditioner TXV responds to two variables in order to properly maintain efficiency. The temperature of the refrigerant vapor as it leaves the evaporator and the pressure in the evaporator itself. The Goodman TX2N4 Air Conditioner TXV does this by using a movable valve pin against the spring pressure to precisely control the flow of liquid refrigerant into the evaporator.

By performing these actions the Goodman TX2N4 Air Conditioner TXV can maintain the required pressure for the SEER Rating as dictated by your system. This Goodman TX2N4 Air Conditioner TXV is a field installed accessory. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
Product Note
NOTE: Model GMVC801005CX has been temporarily suspended from production. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
Bundle Includes 4 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
General Information
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Two Stage
Blower Motor Type
ECM Variable-Speed
Coil Width
21 Inches
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
North
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
81 %
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling Capacity
23600 BTU
Nominal Cooling Capacity
24000 BTU
Heating BTU
100000
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
13.0
Maximum Air Flow
860 CFM
Dimensions
Product Weight
439 Pounds
Shipping Weight
456 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10491646
General Information
Type
Gas Furnace
Product Line
GMVC80
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Two Stage
Blower Motor Type
ECM Variable-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide (Except CA)
Installation Available
Yes
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
80 %
Heating BTU
100000
High Fire Input
100000 BTU
High Fire Output
80000 BTU
Low Fire Input
70000 BTU
Low Fire Output
56000 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
No
Low NOx Emissions Learn More
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10.6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
4 Inches
Cabinet Width
21 Inches
Product Height
33 1/2 Inches
Product Width
21 Inches
Product Depth
28 Inches
Shipping Weight
124 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
202327701
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
10 Years
Heat Exchanger Warranty
Lifetime Years
General Information
Type
Condenser
Product Line
GSXC16
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Cooling Capacity
24000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14 Amps
Recommended Breaker Size
20 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 1/2 Inches
Product Width
29 1/4 Inches
Product Depth
29 1/4 Inches
Product Weight
180 Pounds
Shipping Weight
197 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Overview
Product Category
Air Conditioning Condensers
General Information
Type
Evaporator Coil
Product Line
CHPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Available
Yes
TXV Installed
No
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 - 3.5 Tons
Cooling BTU
42000
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
63 Pounds
Shipping Weight
73 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Evaporator Coil
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories
Reviews
View More

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Manuals
View More
Share
×
Goodman - 2.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 16.0 SEER - 81% AFUE - For Horizontal Installation
Goodman GSXC160241 CHPF3642 GMVC81005
Loading
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Watch Video
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
Goodman GSXC160241 CHPF3642 GMVC81005
×
Customer Review Images
Loading
Scroll Up ArrowTo Top
