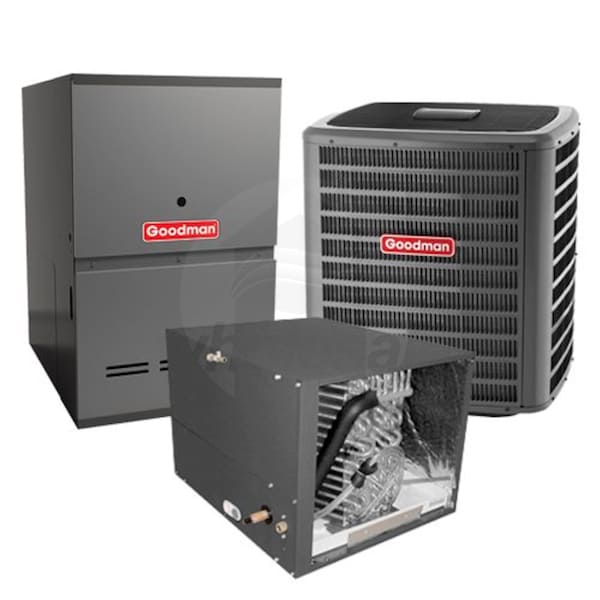

Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 16.0 SEER - 80% AFUE - For Horizontal Installation

Model: GSXC160241 CHPF3642 GCVC80603 Item Number: 89296
Goodman GSXC160241 CHPF3642 GCVC80603
PREVIOUS
NEXT
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Enlarge Image
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
View All
Originally $4,278.00
Add to Cart for Lower Price
synchrony card icon
$70 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 4-6 Weeks
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 16.0 SEER - 80% AFUE - For Horizontal Installation
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 16.0 SEER - 80% AFUE - For Horizontal Installation Model: GSXC160241 CHPF3642 GCVC80603 Item Number: 89296
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    350 Pounds Learn More
    350 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace & Air Conditioner Package
Bundle Includes 4 items
  • product image

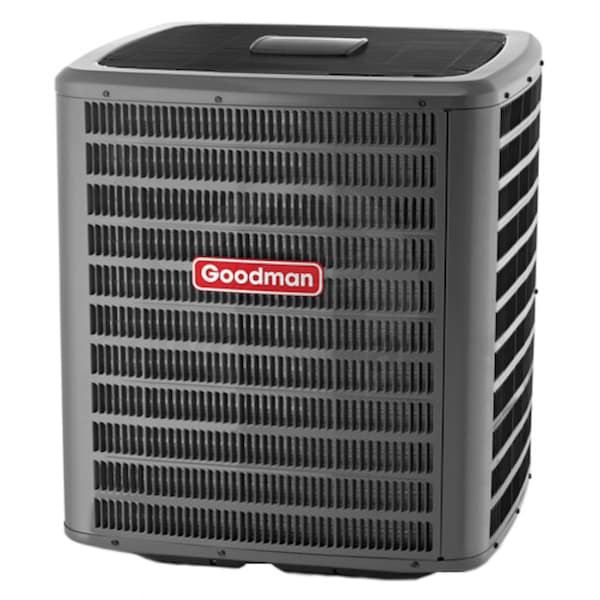

    (1) Goodman 2 Ton 16 SEER Air Conditioner Condenser 2 Stage Communicating (GSXC160241)
  • product image

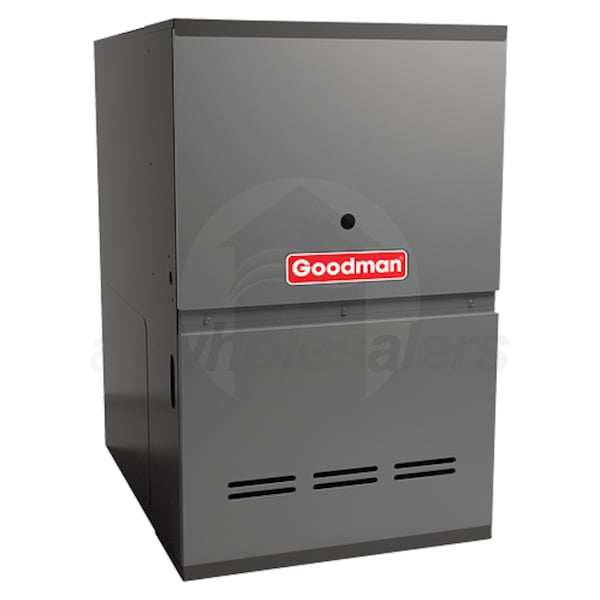

    (1) Goodman 80% AFUE 60,000 BTU 2-Stage Downflow/Horizontal Gas Furnace (GCVC800603BX)
  • product image

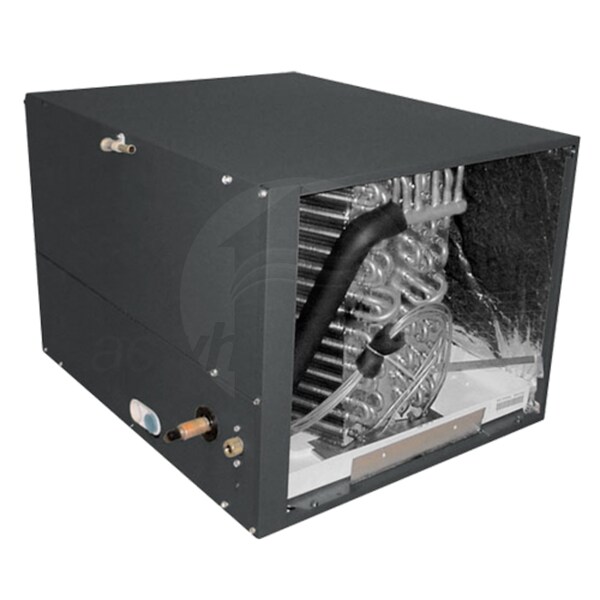

    (1) Goodman 3 to 3.5 Ton 21 in. High Air Conditioner Horizontal Cased Coil (CHPF3642C6)
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSXC160241 CHPF3642 GCVC80603

Product Note
NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
Bundle Includes 4 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Overview
Product Category
Furnace & Air Conditioner Package
General Information
Product Category
Furnace & Air Conditioner Package
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide (Except CA)
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
80 %
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling Capacity
23600 BTU
Nominal Cooling Capacity
24000 BTU
Heating BTU
60000
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
13.0
Maximum Air Flow
810 CFM
Dimensions
Product Weight
350 Pounds
Shipping Weight
367 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10491602
General Information
Type
Condenser
Product Line
GSXC16
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Cooling Capacity
24000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14 Amps
Recommended Breaker Size
20 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 1/2 Inches
Product Width
29 1/4 Inches
Product Depth
29 1/4 Inches
Product Weight
180 Pounds
Shipping Weight
197 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Overview
Product Category
Air Conditioning Condensers
General Information
Type
Gas Furnace
Product Line
GCVC80
Product Category
Furnace
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Two Stage
Blower Motor Speed
ECM Variable-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
80 %
Heating BTU
60000
High Fire Input
60000 BTU
High Fire Output
48000 BTU
Low Fire Input
42000 BTU
Low Fire Output
33600 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
No
Low NOx Emissions Learn More
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.75 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
4 Inches
Cabinet Width
17 1/2 Inches
Product Height
33 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 Inches
Shipping Weight
105 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
202274193
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
10 Years
Heat Exchanger Warranty
Lifetime Years
Overview
Product Category
Furnace
General Information
Type
Evaporator Coil
Product Line
CHPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 - 3.5 Tons
Cooling BTU
42000
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
63 Pounds
Shipping Weight
73 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Evaporator Coil
General Information
Type

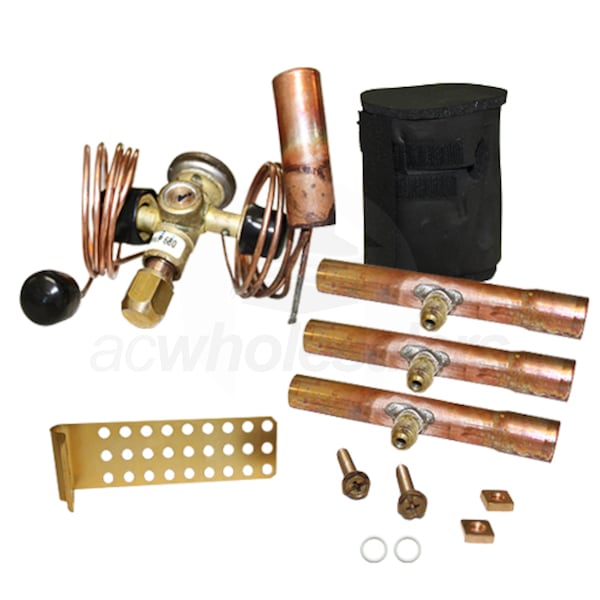

TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories
Reviews
View More

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Product Q&A
View More

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals
View More
Share
×
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 16.0 SEER - 80% AFUE - For Horizontal Installation
Goodman GSXC160241 CHPF3642 GCVC80603
Loading
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Watch Video
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
Goodman GSXC160241 CHPF3642 GCVC80603
×
Customer Review Images
Loading
Scroll Up ArrowTo Top
