Goodman - 1.5 Ton Cooling - Air Conditioner + Air Handler System - 16.0 SEER

Model: GSX1618ASPT Item Number: 75358
Goodman GSX1618ASPT
PREVIOUS
NEXT
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Enlarge Image
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Goodman GSX1618ASPT
Watch Video
Goodman GSX1618ASPT
Watch Video
Goodman GSX1618ASPT
Watch Video
Goodman GSX1618ASPT
Watch Video
Goodman GSX1618ASPT
Watch Video
Goodman GSX1618ASPT
Watch Video
Goodman GSX1618ASPT
Goodman GSX1618ASPT
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    261 Pounds Learn More
    261 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Conditioner & Air Handler Package
Bundle Includes 2 items
  • product image

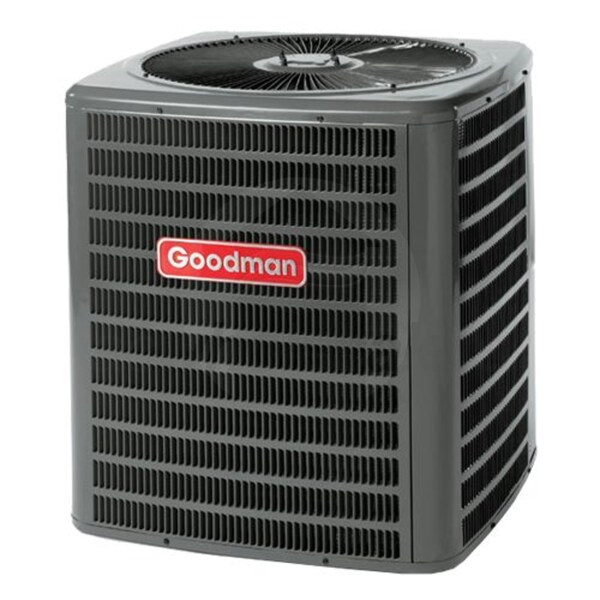

    (1) Goodman 1.5 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX160181)
  • product image

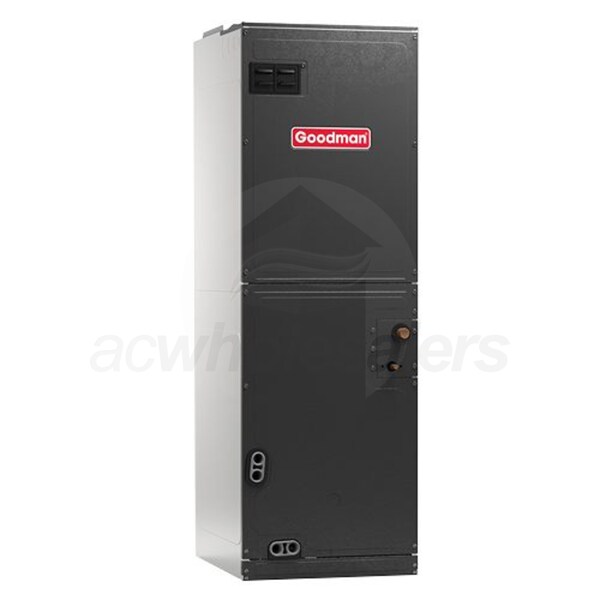

    (1) Goodman 2 Ton Air Conditioner Air Handler with Smart Frame Cabinet (ASPT25B14)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1618ASPT

A Goodman high efficiency central air kit is the perfect way to upgrade your home's HVAC system. This kit contains a GSX16 air conditioner and an ASPT air handler with a multi-speed blower motor. The multi-speed ECM motor provides you with energy efficient circulation. While each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, their energy efficiency is the real selling point. State-of-the-art design and technology make the GSX1618ASPT an excellent addition to nearly any household looking to reduce their energy spending.
  • Energy-Efficient Circulation
  • PSC blower motors are energy hogs. The ECM motor in the ASPT provides more efficient, more intelligent airflow for your home.
  • Advanced Coil Design
  • The condenser coil of this air conditioner is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • High-Efficiency Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.
  • Quiet Comfort
  • Goodman takes great pride in providing comfort that doesn't disrupt your home. The GSX16 features a three-bladed condenser fan, wire fan discharge grille, and louvered top, all designed to reduce noise levels without compromising performance.
  • Energy-Efficient Circulation
  • PSC blower motors are energy hogs. The ECM motor in the ASPT provides more efficient, more intelligent airflow for your home.
  • Dehumidification
  • Goodman's air handlers make it easy to stay cool. The ASPT is designed to remove moisture from the air, letting you feel cool at higher temperatures.
  • SmartFrame
  • This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Condensate Management
  • The ASPT's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Internal Thermostatic Expansion Valve
  • The ASPT Series Air Handler has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Bundle Includes 2 items
    • product kit image
      Goodman 1.5 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant
      Model: GSX160181
      Item Number: 26469
      Quantity: 1
    • product kit image
      Goodman 2 Ton Air Conditioner Air Handler with Smart Frame Cabinet
      Model: ASPT25B14
      Item Number: 61918
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Air Conditioner & Air Handler Package
    General Information
    Product Category
    Air Conditioner & Air Handler Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.5 Tons
    Cooling Capacity
    18000 BTU
    Nominal Cooling Capacity
    18000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    13.0
    Maximum Air Flow
    580 CFM
    Dimensions
    Product Weight
    261 Pounds
    Shipping Weight
    279 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8242074
    General Information
    Type
    Condenser
    Product Line
    GSX16
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.5 Tons
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    72 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    12 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    32 1/4 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    145 Pounds
    Shipping Weight
    163 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Type
    Air Handler
    Product Line
    ASPT
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    EEM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    Installation Available
    Yes
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling BTU
    24000
    Maximum Air Flow
    1475 CFM
    Minimum Air Flow
    640 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    6 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    45 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    102 Pounds
    Shipping Weight
    116 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Limited Years
    Overview
    Product Category
    Air Handler
