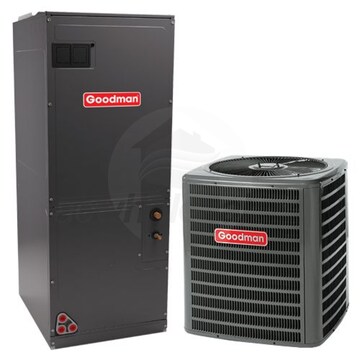

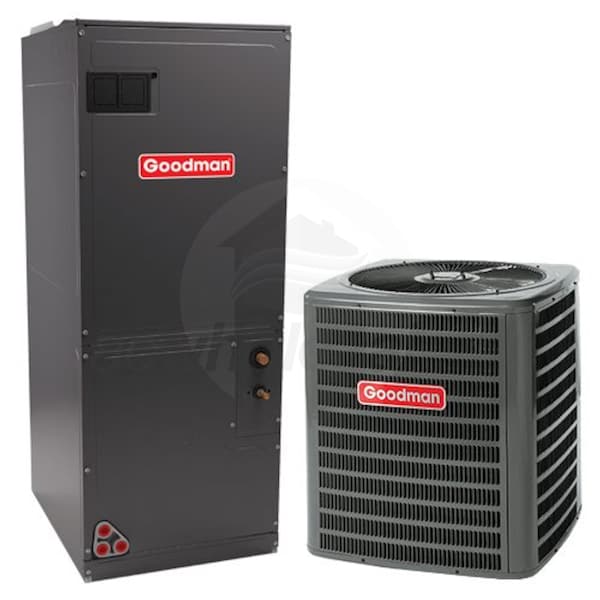

Goodman 2.5 Ton 16 SEER Air Conditioner Variable Speed Split System

Model: GSX160301 AVPTC37C14 Item Number: 87469
Ask a Question
Goodman GSX160301 AVPTC37C14
PREVIOUS
NEXT
Goodman GSX160301 AVPTC37C14
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Enlarge Image
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Watch Video
Goodman GSX160301 AVPTC37C14
Watch Video
Goodman GSX160301 AVPTC37C14
Watch Video
Goodman GSX160301 AVPTC37C14
Watch Video
Goodman GSX160301 AVPTC37C14
Watch Video
Goodman GSX160301 AVPTC37C14
Watch Video
Goodman GSX160301 AVPTC37C14
Watch Video
Goodman GSX160301 AVPTC37C14
Watch Video
Goodman GSX160301 AVPTC37C14
Watch Video
Goodman GSX160301 AVPTC37C14
Watch Video
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
Goodman GSX160301 AVPTC37C14
View All
Free Pro1 Thermostat
With Goodman System Purchase
Hurry, Offer Ends Soon!
Originally $2,387.00
Add to Cart for Lower Price

Backordered
Estimated Availability December 19, 2019
Goodman 2.5 Ton 16 SEER Air Conditioner Variable Speed Split System
Goodman 2.5 Ton 16 SEER Air Conditioner Variable Speed Split System Model: GSX160301 AVPTC37C14 Item Number: 87469
Backordered
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee Learn More Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    293 Pounds Learn More Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Operating Mode
    Cooling
    Configuration
    Multi-Position
View More
Bundle Includes 2 items
  • (1) Goodman 2.5 Ton 16 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX160301)
  • (1) Goodman 2.5 to 3.5 Ton Air Conditioner Air Handler Smart Frame Cabinet (AVPTC37C14)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX160301 AVPTC37C14

Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing building the most reliable and refreshingly affordable indoor comfort products in the market. The complete line of Goodman brand products are built on the principles of founder Harold Goodman, a former air conditioning contractor. Building Goodman products to Harold's standards, and protecting those products with some of the best limited warranties in the industry, has helped to make the Goodman brand widely recognized as a leading brand in the residential and light commercial heating, ventilation and air conditioning industry today.
  • The manufacturer model number(s): Goodman GSX160301-AVPTC37C14
  • Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    GSX160301 Specifications
    AVPTC37C14 Specifications
    General Information
    Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Configuration Learn More Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Installation Available
    Yes
    Performance
    Capacity Learn More Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 Tons
    Cooling Capacity
    28600 BTU
    Nominal Cooling Capacity
    30000 BTU
    SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    13.0
    Maximum Air Flow
    930 CFM
    Dimensions
    Product Weight
    293 Pounds
    Shipping Weight
    311 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8996155
    General Information
    Type
    Condenser
    Product Line
    GSX16
    Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single
    DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Installation Available
    Yes
    Performance
    Capacity Learn More Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 Tons
    Cooling BTU
    30000
    Cooling Capacity
    29000 BTU
    SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16
    Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    72 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    17 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    36 1/4 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    149 Pounds
    Shipping Weight
    167 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    General Information
    Type
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor
    Variable-Speed
    Motor Type
    ECM
    Configuration Learn More Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Installation Location
    Indoor
    Installation Available
    Yes
    Performance
    Capacity Learn More Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.5 Tons
    Cooling BTU
    36000
    Maximum Air Flow
    1275 CFM
    Minimum Air Flow
    845 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    53 7/16 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    109 Pounds
    Shipping Weight
    144 Pounds
    Liquid Valve Connection Size
    3/8 Inch
    Suction Valve Connection Size
    7/8 Inch
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Limited Years
