Goodman - 3 Ton Air Conditioner + Coil Kit - 14.5 SEER - 21" Coil Width - For Horizontal Installation

Model: GSX1436CHPF3743C6-H Item Number: 81769
Ask a Question
Goodman GSX1436CHPF3743C6-H
PREVIOUS
NEXT
Goodman GSX1436CHPF3743C6-H
Goodman GSX1436CHPF3743C6-H
Goodman GSX1436CHPF3743C6-H
Goodman GSX1436CHPF3743C6-H
Goodman GSX1436CHPF3743C6-H
Goodman GSX1436CHPF3743C6-H
Enlarge Image
Goodman GSX1436CHPF3743C6-H
Goodman GSX1436CHPF3743C6-H
Goodman GSX1436CHPF3743C6-H
Goodman GSX1436CHPF3743C6-H
Goodman GSX1436CHPF3743C6-H
Goodman GSX1436CHPF3743C6-H
View All
Originally $1,770.00
Add to Cart for Lower Price
synchrony card icon
$259 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships in 1-2 Business Days
Goodman - 3 Ton Air Conditioner + Coil Kit - 14.5 SEER - 21
Goodman - 3 Ton Air Conditioner + Coil Kit - 14.5 SEER - 21" Coil Width - For Horizontal Installation Model: GSX1436CHPF3743C6-H Item Number: 81769
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Operating Mode
    Cooling
    Refrigerant Type
    R-410A
    Coil Width
    21 Inches
View More
Bundle Includes 2 items
  • product image
    (1) Goodman 3 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140361)
  • product image
    (1) Goodman 3 to 3.5 Ton 21 in. High Air Conditioner Horizontal Cased Coil (CHPF3743C6)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1436CHPF3743C6-H

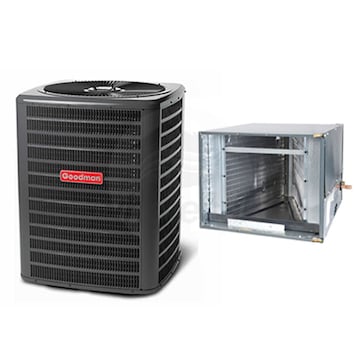

The Goodman GSX1436CHPF3743C6-H kit includes an outdoor condenser and evaporator coil to complete your home's central air system. The powerful GSX14 air conditioner features an advanced condenser coil design that provides efficient and reliable cooling. The CHPF3743C6 evaporator coil fits directly onto your existing 21" furnace or air handler cabinet, allowing conditioned air to be circulated into your home. The GSX14's galvanized steel construction paired with the all-aluminum evaporator coil design ensures your cooling system stays effective and efficient for years to come.
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
Bundle Includes 2 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
GSX140361 Specifications
CHPF3743C6 Specifications
General Information
Operating Mode Learn More
Cooling
Refrigerant Type
R-410A
Coil Width
21 Inches
Configuration Learn More
Horizontal
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
North and Southeast
Performance
Capacity Learn More
3.0 Tons
Cooling Capacity
34000 BTU
Nominal Cooling Capacity
36000 BTU
SEER Learn More
14.5
EER Learn More
11.5
Dimensions
Shipping Weight
262 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7516735
General Information
Type
Condenser
Product Line
GSX14
Operating Mode Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
North and Southeast
Installation Available
Yes
Performance
Capacity Learn More
3.0 Tons
Cooling BTU
36000
Cooling Capacity
36000 BTU
SEER Learn More
14.0
EER Learn More
12.0
Maximum Sound Level Learn More
73 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
162 Pounds
Shipping Weight
180 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Limited* 10 Years Years
General Information
Type
Evaporator Coil
Product Line
CHPF
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Horizontal
Installation Available
Yes
Performance
Capacity Learn More
3.0 - 3.5 Tons
Cooling BTU
42000
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
63 Pounds
Shipping Weight
73 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
5 Years
