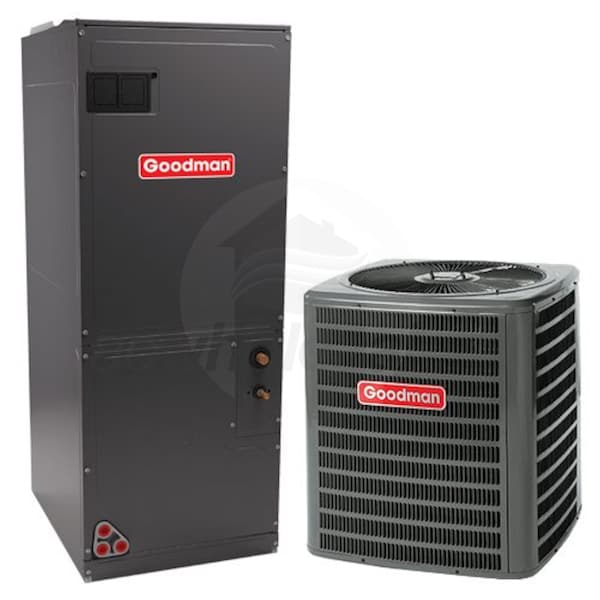

Goodman - 5.0 Ton Cooling - Air Conditioner + Air Handler System - 14.5 SEER

Model: GSX140601 AVPTC61D14 Item Number: 87582
Goodman GSX140601 AVPTC61D14
PREVIOUS
NEXT
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Enlarge Image
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Watch Video
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
Goodman GSX140601 AVPTC61D14
View All
Originally $3,850.00
Add to Cart for Lower Price
synchrony card icon
$67 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory items ship direct from the manufacturer
Shipping times vary
In-Stock
Ships in 2-5 Business Days
Shipping to60601
Goodman - 5.0 Ton Cooling - Air Conditioner + Air Handler System - 14.5 SEER
Goodman - 5.0 Ton Cooling - Air Conditioner + Air Handler System - 14.5 SEER Model: GSX140601 AVPTC61D14 Item Number: 87582
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    348 Pounds Learn More
    348 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Conditioner & Air Handler Package
Bundle Includes 2 items
  • product image
    (1) Goodman GSX14 - 5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSX140601)
  • product image
    (1) Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet (AVPTC61D14)
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX140601 AVPTC61D14

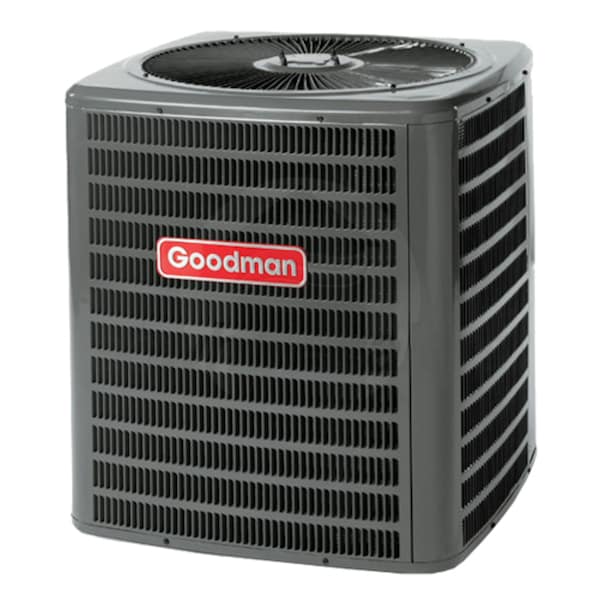

You can count on The Goodman GSX140481 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if that's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners.

The Goodman GSX14 GSX140481 Air Conditioner Condensers

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable

The Goodman GSX140481 will keep you as cool as a cucumber

Known as the best air conditioner the Goodman GSX140481 is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSX14 GSX140481 is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

Goodman brand air conditioners and heaters such as the GSX140481 take pride in its company heritage.

Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSX140481 air conditioners ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

When you think of the Goodman GSX140481 air conditioner condenser consider it as the art of precision

Energy-Efficient Scroll Compressor - Inside of the Goodman GSX140481 air conditioners you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.

Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX140481 air conditioners simply work the way they're supposed to, making each one a thing of beauty.

Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.

Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.

Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

Quiet Operation - An acoustically engineered sound control blanket helps reduce noise levels compared to units without sound control blankets.


Overview for Goodman AVPTC61D14 Air Conditioner Air Handler

The Goodman AVPTC61D14 Air Conditioner Air Handler design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. These Goodman AVPTC61D14 Air Conditioner air handler is ideal for either new or retrofit installations.

The Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

A history of the Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites

Known as the best modular blower around, the Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

Goodman brand Air handlers - Electric Furnaces such as the AVPTC61D14 take pride in its company heritage.

Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman modular blowers were designed to add a smile every time you open your utility bill. The Goodman AVPTC AVPTC61D14 Multi speed, Multi position Air Handler Electric Furnace ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites are considered as the art of precision

All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.

Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)

Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.

But best of all, this Goodman AVPTC AVPTC61D14 Multi speed, Multi position Air Handler Electric Furnace is compatible with the ComfortNet system of communicating control products. The ComfortNet control system actively monitors and analyzes the entire HVAC system for any irregular conditions. If detected, the control will take appropriate action and display the results in the diagnostic menu on the ComfortNet control unit. This allows for outstanding performance and accurate detection of any system related issue.

  • AHRI Reference Number: 8996151* *May change based on the Manufacturer revision
  • The manufacturer model number(s): Goodman GSX140601 AVPTC61D14
  • Product Note
    NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Air Conditioner & Air Handler Package
    General Information
    Product Category
    Air Conditioner & Air Handler Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Blower Motor Type
    ECM Variable-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling Capacity
    34000 BTU
    Nominal Cooling Capacity
    36000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.5
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    13.0
    Maximum Air Flow
    1175 CFM
    Dimensions
    Product Weight
    348 Pounds
    Shipping Weight
    370 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    202544062
    General Information
    Type
    Condenser
    Product Line
    GSX14
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling BTU
    60000
    Cooling Capacity
    60000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.7
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    75 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    33 Amps
    Recommended Breaker Size
    50 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    38 1/4 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    35 1/2 Inches
    Product Weight
    260 Pounds
    Shipping Weight
    280 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Type
    Air Handler
    Product Line
    AVPTC
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Variable-Speed
    Motor Type
    ECM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    Installation Available
    Yes
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling BTU
    60000
    Maximum Air Flow
    2035 CFM
    Minimum Air Flow
    1360 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    9 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    24 1/2 Inches
    Product Height
    58 Inches
    Product Width
    24 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    112 Pounds
    Shipping Weight
    167 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Limited Years
    Overview
    Product Category
    Air Handler
