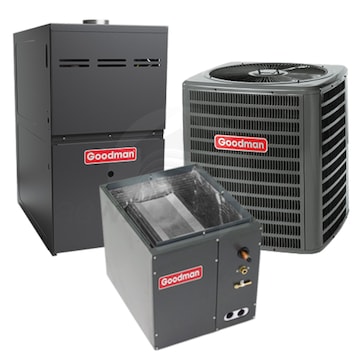

Goodman - 3.0 Ton Cooling - 60k BTU/Hr Heating Air Conditioner + Variable Speed Furnace Kit - 14.0 SEER - 80% AFUE - For Upflow Installation

Model: GSX140361 CAPF3137 GMVC80603 Item Number: 91318
Ask a Question
Goodman GSX140361 CAPF3137 GMVC80603
PREVIOUS
NEXT
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Enlarge Image
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
Goodman GSX140361 CAPF3137 GMVC80603
View All
Originally $3,317.00
Add to Cart for Lower Price
synchrony card icon
$50 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman - 3.0 Ton Cooling - 60k BTU/Hr Heating Air Conditioner + Variable Speed Furnace Kit - 14.0 SEER - 80% AFUE - For Upflow Installation
Goodman - 3.0 Ton Cooling - 60k BTU/Hr Heating Air Conditioner + Variable Speed Furnace Kit - 14.0 SEER - 80% AFUE - For Upflow Installation Model: GSX140361 CAPF3137 GMVC80603 Item Number: 91318
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    340 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More
Bundle Includes 4 items
  • product image
    (1) Goodman 80% AFUE 60,000 BTU 2 Stage Upflow Variable Speed Gas Furnace (GMVC800603BN)
  • product image
    (1) Goodman 3 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140361)
  • product image
    (1) Goodman 2.5 to 3 Ton 17.5 in. Wide Air Conditioner Cased Coil (CAPF3137B6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX140361 CAPF3137 GMVC80603

Overview for Goodman GSX140361 CAPF3137B6 GMVC80603BN TX3N4 Air Conditioner System
  • The manufacturer model number(s): Goodman GSX140361 GMVC80603BN CAPF3137B6 TX3N4
  • AHRI Reference Number: 9923378 * *May change based on the Manufacturer revision
  • Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GMVC800603BN Specifications
    GSX140361 Specifications
    CAPF3137B6 Specifications
    TX3N4 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Variable-Speed
    Coil Width
    17.5 Inches
    Configuration Learn More
    Upflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    80 %
    Capacity Learn More
    3.0 Tons
    Cooling Capacity
    33400 BTU
    Nominal Cooling Capacity
    36000 BTU
    Heating BTU
    60000
    SEER Learn More
    14.5
    EER Learn More
    12.0
    Maximum Air Flow
    1200 CFM
    Dimensions
    Product Weight
    340 Pounds
    Shipping Weight
    359 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    9923378
    General Information
    Type
    Gas Furnace
    Product Line
    GMVC80
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Chimney Vent
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Variable-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    80 %
    Heating BTU
    60000
    High Fire Input
    60000 BTU
    High Fire Output
    48000 BTU
    Low Fire Input
    42000 BTU
    Low Fire Output
    33600 BTU
    Maximum Air Flow
    1200 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    No
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7.75 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    33 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 Inches
    Shipping Weight
    105 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    202327715
    Warranty Information
    Unit Replacement Warranty
    10 Years
    Parts Warranty Learn More
    10 Years
    Heat Exchanger Warranty
    Lifetime Years
    General Information
    Type
    Condenser
    Product Line
    GSX14
    Operating Mode Learn More
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    North and Southeast
    Installation Available
    Yes
    Performance
    Capacity Learn More
    3.0 Tons
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    SEER Learn More
    14.0
    EER Learn More
    12.0
    Maximum Sound Level Learn More
    73 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    19 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    32 1/2 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    162 Pounds
    Shipping Weight
    180 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    2.5 - 3.0 Tons
    Cooling BTU
    36000
    Nominal Minimum Cooling Capacity
    30000 BTU
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    30 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    53 Pounds
    Shipping Weight
    63 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
    General Information
    Type
    TXV Kit
    Product Line
    TX
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
