Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 14.0 SEER - 80% AFUE - For Horizontal Installation

Model: GSX14025 CHPF3636 GMVC80603 Item Number: 90780

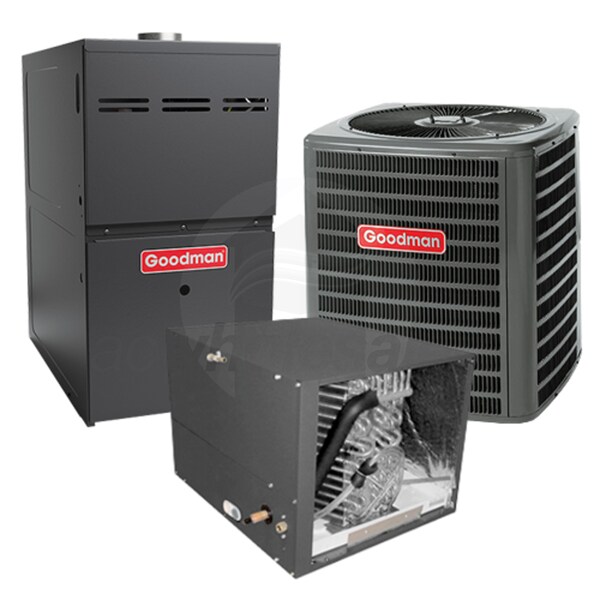

Goodman GSX14025 CHPF3636 GMVC80603
PREVIOUS
NEXT
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Enlarge Image
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
Goodman GSX14025 CHPF3636 GMVC80603
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    291 Pounds Learn More
    291 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace & Air Conditioner Package
Bundle Includes 3 items
  • product image
    (1) Goodman 80% AFUE 60,000 BTU 2 Stage Upflow Variable Speed Gas Furnace (GMVC800603BN)
  • product image
    (1) Goodman GSX14 - 2 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant - Designed For Southwest Region (GSX140251)
  • product image
    (1) Goodman 3 Ton 17.5 in. Air Conditioner Horizontal Cased Coil (CHPF3636B6)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX14025 CHPF3636 GMVC80603

Overview for Goodman GSX140251 CHPF3636B6 GMVC80603BN Goodman 2 Ton 14 SEER 80% AFUE Gas Electric Air Conditioner SystemOverview for Goodman GSX140251 2 Ton 14 SEER Air Conditioner CondenserYou can count on The Goodman GSX140251 Air Conditioner Condenser to keep you cool on even the hottest summer days. The high efficiency compressor operates in tandem with a high-efficiency coil, cooling your home effectively. And if That's not enough, Goodman goes one step farther: they install a liquid-line filter dryer in every air conditioner we build. The filter dryer prevents moisture and debris from entering the compressor motor and expansion device, thus helping to extend the life of the system. Many manufacturers leave this step out, but Goodman install filter dryers in all of our air conditioners. Please note that this product is regulated by DOE Efficiency Standards. (Learn More)Overview for Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator CoilThe Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.Using this Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is a breeze.The best indoor comfort system is the kind you don't have to think or worry about. The Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil starts to work the moment you need it and then runs quietly and efficiently year after year. The Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coils have features designed to provide outstanding performance. Goodman brand Air Conditioning Evaporator Coils use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy efficient trend you'll love for many years.The Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is home comfort that won't blow your budget.The Goodman Air Conditioner and Heater manufacturer wants you to smile every time you open your utility bill, so the Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is designed to function with a multitude of heating and cooling Goodman branded products. Goodman utilizes cutting edge, efficient technologies such as all aluminum coils, thermoplastic drain pans and is optimized for use with R410-A refrigerant. The All-Aluminum evaporator coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties.Goodman takes pride in its company heritage when manufacturing the Goodman CHPF3636B6 Horizontal Cased Indoor Air Conditioner Evaporator Coil.Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy efficient indoor comfort solutions using advanced technology. But the company ultimately adheres to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States. Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.
  • The manufacturer model number(s): Goodman GSX140251 GMVC80603BN CHPF3636B6
  • AHRI Reference Number: 9923315 * *May change based on the Manufacturer revision
  • Product Note
    NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Bundle Includes 3 items
    • product kit image
      Goodman 80% AFUE 60,000 BTU 2 Stage Upflow Variable Speed Gas Furnace
      Model: GMVC800603BN
      Item Number: 100098
      Quantity: 1
    • product kit image
      Goodman GSX14 - 2 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant - Designed For Southwest Region
      Model: GSX140251
      Item Number: 26628
      Quantity: 1
    • product kit image
      Goodman 3 Ton 17.5 in. Air Conditioner Horizontal Cased Coil
      Model: CHPF3636B6
      Item Number: 26349
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Furnace & Air Conditioner Package
    General Information
    Product Category
    Furnace & Air Conditioner Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Variable-Speed
    Coil Width
    17.5 Inches
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling Capacity
    23600 BTU
    Nominal Cooling Capacity
    24000 BTU
    Heating BTU
    60000
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    15.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.5
    Maximum Air Flow
    750 CFM
    Dimensions
    Product Weight
    291 Pounds
    Shipping Weight
    308 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    9923315
    General Information
    Type
    Gas Furnace
    Product Line
    GMVC80
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Variable-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    Installation Available
    Yes
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Heating BTU
    60000
    High Fire Input
    60000 BTU
    High Fire Output
    48000 BTU
    Low Fire Input
    42000 BTU
    Low Fire Output
    33600 BTU
    Maximum Air Flow
    1200 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    No
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7.75 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    33 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 Inches
    Shipping Weight
    105 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    202327715
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Heat Exchanger Warranty
    Lifetime Years
    Overview
    Product Category
    Furnace
    General Information
    Type
    Condenser
    Product Line
    GSX14
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.2
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    71 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    18 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    32 1/2 Inches
    Product Width
    26 Inches
    Product Depth
    26 Inches
    Product Weight
    136 Pounds
    Shipping Weight
    153 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Type
    Evaporator Coil
    Product Line
    CHPF
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Installation Available
    Yes
    TXV Installed
    No
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling BTU
    36000
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    17 1/2 Inches
    Product Width
    26 Inches
    Product Depth
    21 1/8 Inches
    Product Weight
    50 Pounds
    Shipping Weight
    60 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Evaporator Coil
