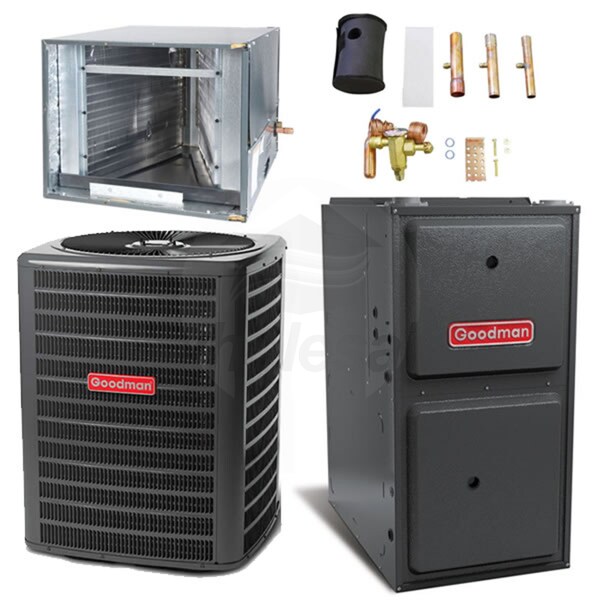

Goodman - 5.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 13.5 SEER - 97% AFUE - For Horizontal Installation

Model: GSX1360GMVM97080H Item Number: 75538
Ask a Question
Goodman GSX1360GMVM97080H
PREVIOUS
NEXT
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Enlarge Image
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
Goodman GSX1360GMVM97080H
View All
Originally $4,505.00
Add to Cart for Lower Price
synchrony card icon
$51 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Ships in 4-6 Weeks
Goodman - 5.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 13.5 SEER - 97% AFUE - For Horizontal Installation
Goodman - 5.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 13.5 SEER - 97% AFUE - For Horizontal Installation Model: GSX1360GMVM97080H Item Number: 75538
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    405 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Modulating
View More
Bundle Includes 4 items
  • product image
    (1) Goodman 98% AFUE 80,000 BTU Variable Speed Upflow Gas Furnace (GMVM970804CN)
  • product image
    (1) Goodman 5 Ton 13 SEER Air Conditioner Condenser with R410A Refrigerant (GSX130601)
  • product image
    (1) Goodman 4 to 5 Ton 24.5 in. High Air Conditioner Horizontal Cased Coil (CHPF4860D6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1360GMVM97080H

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX13 air conditioner, a GMVM97 furnace, and a cased evaporator coil making it the ideal solution for the northern parts the country. It's the perfect kit for areas that use a less than average amount of cooling but want an efficient variable speed furnace for the long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX1360GMVM97080H air conditioner and furnace kit fits the bill perfectly.
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help. This kit contains a furnace that is narrower than the coil supplied. The included Z-bracket should be used to make the connection between the furnace and coil. Please see the coil installation manual under the "Manuals" tab for more information.
Bundle Includes 4 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
GMVM970804CN Specifications
GSX130601 Specifications
CHPF4860D6 Specifications
TX5N4 Specifications
General Information
Operating Mode Learn More
Heating and Cooling
Modulating/Staging Learn More
Modulating
Blower Motor
ECM Variable-Speed
Coil Width
24.5 Inches
Configuration Learn More
Horizontal
DOE Regional Compliance Learn More
Nationwide (Except CA, TX and UT)
Performance
AFUE Learn More
97 %
Capacity Learn More
5.0 Tons
Cooling Capacity
54000 BTU
Heating BTU
80000
SEER Learn More
13.5
EER Learn More
11.0
Maximum Air Flow
1585 CFM
Dimensions
Product Weight
405 Pounds
Shipping Weight
423 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7354173
General Information
Type
Gas Furnace
Product Line
GMVM97
Fuel Type Learn More
Natural Gas
Vent Type Learn More
Direct Vent
Modulating/Staging Learn More
Modulating
Blower Motor
ECM Variable-Speed
Configuration Learn More
Upflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
Performance
AFUE Learn More
97 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
77600 BTU
Low Fire Input
40000 BTU
Low Fire Output
38800 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions Learn More
No
Low NOx Emissions Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 or 3 Inches
Cabinet Width
21 Inches
Product Height
34 1/2 Inches
Product Width
21 Inches
Product Depth
28 3/4 Inches
Product Weight
142 Pounds
Shipping Weight
142 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7424267
Warranty Information
Unit Replacement Warranty
10 Years
Parts Warranty Learn More
5 Years
Heat Exchanger Warranty
20 Years
General Information
Type
Condenser
Product Line
GSX13
Operating Mode Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
North
Installation Available
Yes
Performance
Capacity Learn More
5.0 Tons
Cooling BTU
60000
Cooling Capacity
60000 BTU
SEER Learn More
13.0
EER Learn More
11.0
Maximum Sound Level Learn More
77 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
33 Amps
Recommended Breaker Size
50 Amps
Dimensions
Suction Connection Size
1 1/8 Inches
Liquid Connection Size
3/8 Inch
Product Height
40 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
184 Pounds
Shipping Weight
202 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Limited* 10 Years Years
General Information
Type
Evaporator Coil
Product Line
CHPF
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Horizontal
Installation Available
Yes
Performance
Capacity Learn More
4.0 - 5.0 Tons
Cooling BTU
60000
Nominal Minimum Cooling Capacity
48000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
24 1/2 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
77 Pounds
Shipping Weight
87 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
5 Years
General Information
Type
TXV Kit
Product Line
TX
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Reviews
View More

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Product Q&A
View More

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.
