Goodman - 4.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 14.0 SEER - 96% AFUE - For Downflow Installation

Model: GSX1348GCVC96100D Item Number: 81097
Ask a Question
Goodman GSX1348GCVC96100D
PREVIOUS
NEXT
Goodman GSX1348GCVC96100D
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Enlarge Image
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Watch Video
Goodman GSX1348GCVC96100D
Watch Video
Goodman GSX1348GCVC96100D
Watch Video
Goodman GSX1348GCVC96100D
Watch Video
Goodman GSX1348GCVC96100D
Watch Video
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
Goodman GSX1348GCVC96100D
View All
Originally $4,384.00
Add to Cart for Lower Price
synchrony card icon
$70 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Backordered
Estimated Availability September 29, 2021
Goodman - 4.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 14.0 SEER - 96% AFUE - For Downflow Installation
Goodman - 4.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 14.0 SEER - 96% AFUE - For Downflow Installation Model: GSX1348GCVC96100D Item Number: 81097
Backordered
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    395 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More

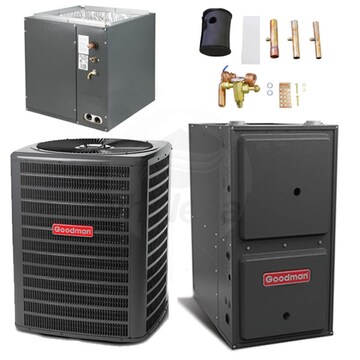

Bundle Includes 4 items
  • product image
    (1) Goodman 96% AFUE 100,000 BTU Variable Speed Downflow Gas Furnace (GCVC961005CN)
  • product image
    (1) Goodman 4 Ton 13 SEER Air Conditioner Condenser with R410A Refrigerant (GSX130481)
  • product image
    (1) Goodman 4 to 5 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF4961C6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1348GCVC96100D

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX13 air conditioner, a GCVC96 furnace, and a cased evaporator coil to provide you with a budget friendly heating and cooling solution. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX1348GCVC96100D air conditioner and furnace kit fits the bill perfectly.
  • The manufacturer model number(s): Goodman GSX130481 GCVC961005CN CAPF4961C6 TX5N4
  • AHRI Reference Number: 7354099 * *May change based on the Manufacturer revision
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GCVC961005CN Specifications
    GSX130481 Specifications
    CAPF4961C6 Specifications
    TX5N4 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Variable-Speed
    Coil Width
    21 Inches
    Configuration Learn More
    Downflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    96 %
    Capacity Learn More
    4.0 Tons
    Cooling Capacity
    45000 BTU
    Nominal Cooling Capacity
    48000 BTU
    Heating BTU
    100000
    SEER Learn More
    14.0
    EER Learn More
    11.5
    Maximum Air Flow
    1520 CFM
    Dimensions
    Product Weight
    395 Pounds
    Shipping Weight
    413 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    7354099

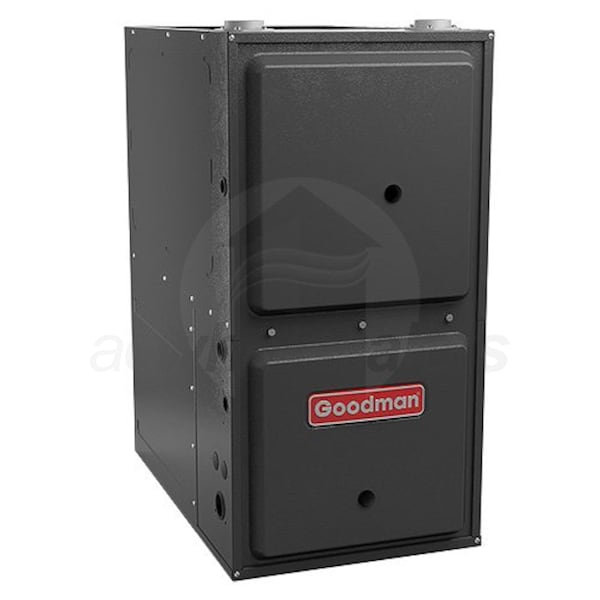

    General Information
    Type
    Gas Furnace
    Product Line
    GCVC96
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Direct Vent
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Variable-Speed
    Configuration Learn More
    Downflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    96 %
    Heating BTU
    100000
    High Fire Input
    100000 BTU
    High Fire Output
    96000 BTU
    Low Fire Input
    70000 BTU
    Low Fire Output
    67200 BTU
    Maximum Air Flow
    2000 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    14.4 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    21 Inches
    Product Height
    34 1/2 Inches
    Product Width
    21 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    145 Pounds
    Shipping Weight
    145 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7368844
    Warranty Information
    Unit Replacement Warranty
    10 Years
    Parts Warranty Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Condenser
    Product Line
    GSX13
    Operating Mode Learn More
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    4.0 Tons
    Cooling BTU
    48000
    Cooling Capacity
    48000 BTU
    SEER Learn More
    13.0
    EER Learn More
    11.0
    Maximum Sound Level Learn More
    76 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    26 Amps
    Recommended Breaker Size
    45 Amps
    Dimensions
    Suction Connection Size
    1 1/8 Inches
    Liquid Connection Size
    3/8 Inch
    Product Height
    36 1/4 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    175 Pounds
    Shipping Weight
    193 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years

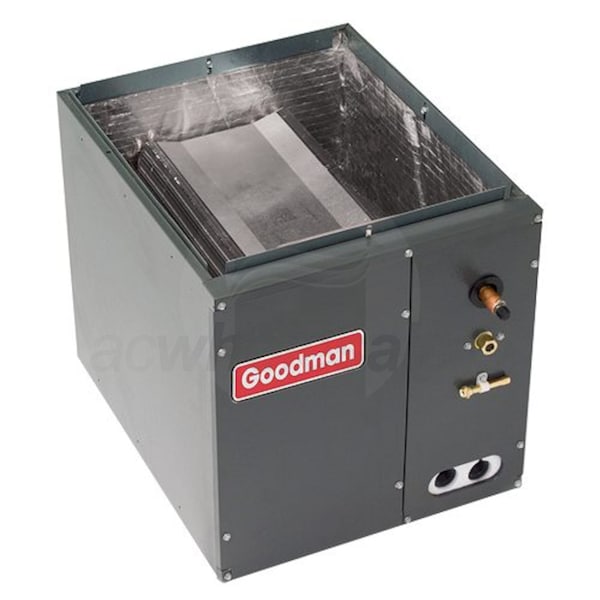

    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    4.0 - 5.0 Tons
    Cooling BTU
    60000
    Nominal Minimum Cooling Capacity
    48000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    73 Pounds
    Shipping Weight
    83 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years

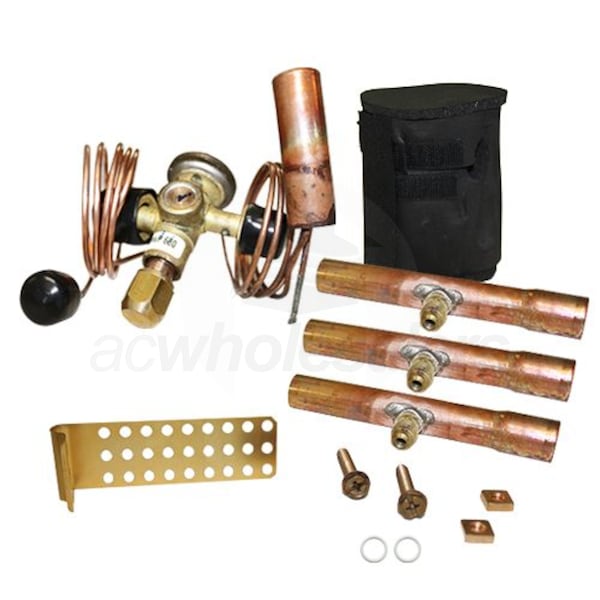

    General Information
    Type
    TXV Kit
    Product Line
    TX
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
