Goodman - 1.5 Ton Air Conditioner + Coil Kit - 13.0 SEER - 14" Coil Width - For Horizontal Installation

Model: GSX1318CHPF1824A6-H Item Number: 81703
Goodman GSX1318CHPF1824A6-H
PREVIOUS
NEXT
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Enlarge Image
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
Goodman GSX1318CHPF1824A6-H
View All
Originally $1,540.00
Add to Cart for Lower Price
synchrony card icon
$231 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-6 Weeks
Goodman - 1.5 Ton Air Conditioner + Coil Kit - 13.0 SEER - 14
Goodman - 1.5 Ton Air Conditioner + Coil Kit - 13.0 SEER - 14" Coil Width - For Horizontal Installation Model: GSX1318CHPF1824A6-H Item Number: 81703
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Air Conditioner & Coil Package

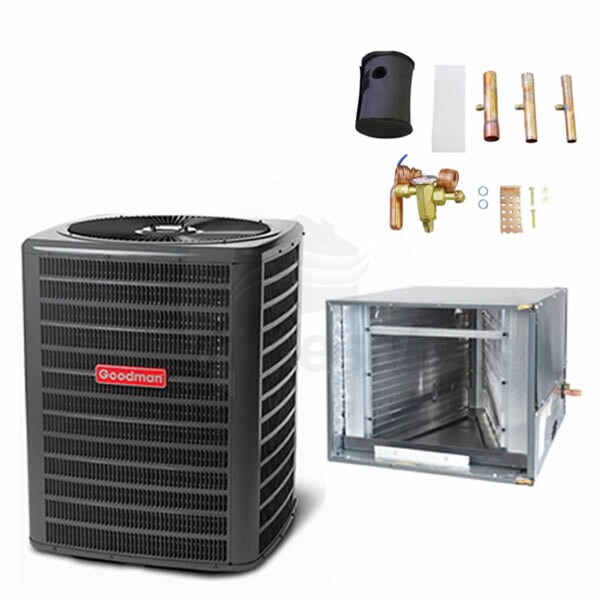

Bundle Includes 3 items
  • product image
    (1) Goodman 1.5 Ton 13 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX130181)
  • product image
    (1) Goodman 1.5 to 2 Ton 14 in. High Air Conditioner Horizontal Cased Coil (CHPF1824A6)
  • product image
    (1) Goodman 1.5 to 2 Ton Air Conditioner TXV Kit R410A Refrigerant (TX2N4)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1318CHPF1824A6-H

The Goodman GSX1318CHPF1824A6-H kit includes an outdoor condenser and evaporator coil to complete your home's central air system. The powerful GSX13 air conditioner features an advanced condenser coil design that provides efficient and reliable cooling. The CHPF1824A6 evaporator coil fits directly onto your existing 14" furnace or air handler cabinet, allowing conditioned air to be circulated into your home. The GSX13's galvanized steel construction paired with the all-aluminum evaporator coil design ensures your cooling system stays effective and efficient for years to come.
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
Bundle Includes 3 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Overview
Product Category
Air Conditioner & Coil Package
General Information
Product Category
Air Conditioner & Coil Package
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410A
Coil Width
14 Inches
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
North
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 Tons
Cooling Capacity
17800 BTU
Nominal Cooling Capacity
18000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
13.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
11.0
Dimensions
Shipping Weight
153 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5039752
General Information
Type
Condenser
Product Line
GSX13
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 Tons
Cooling BTU
18000
Cooling Capacity
18000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
13.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
11.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
25 3/4 Inches
Product Width
23 Inches
Product Depth
23 Inches
Product Weight
102 Pounds
Shipping Weight
117 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
General Information
Type
Evaporator Coil
Product Line
CHPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 - 2.0 Tons
Cooling BTU
24000
Nominal Minimum Cooling Capacity
18000 BTU
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
14 Inches
Product Height
14 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
36 Pounds
Shipping Weight
46 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Evaporator Coil
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories
