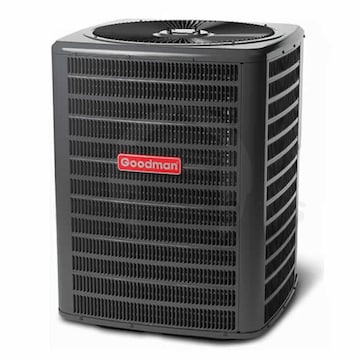

Goodman 5 Ton 13 SEER Air Conditioner Condenser with R410A Refrigerant

Name: Goodman 5 Ton 13 SEER Air Conditioner Condenser with R410A Refrigerant
Brand: Goodman
SKU: 26122
Price: 2027.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

Model: GSX130601 Item Number: 26122

(1)

Ask a Question

Enlarge Image

View All

Add to Cart Form

Originally $2,027.00

Add to Cart for Lower Price

$321 / Month

Suggested monthly payments with 6 month financing.

Click for important monthly payment and offer information.

In-Stock

Ships Tuesday, June 6th

Shipping to60601

Goodman 5 Ton 13 SEER Air Conditioner Condenser with R410A Refrigerant Model: GSX130601 Item Number: 26122

In-Stock

Accessories

Features

Specifications

Reviews

Product Q&A

Manuals

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.

Free Lift Gate

*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

184 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Product Category

Air Conditioning Condensers

UPC

663051605251

Size (Tons)

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features

Overview for Goodman GSX130601

Overview for Goodman GSX130601 Air Conditioner Condenser
The Goodman brand is one of the biggest names in home cooling and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.
PLEASE NOTE The US Department of Energy (DOE) regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions for the United States. We are required to abide by these regulations when selling these types of products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you live in any of the following states - AL, AR, DC, DE, FL, GA, KY, LA, MD, MS, NC, OK, SC, TN, TX or VA and are planning to have the product shipped to those states it is strongly recommend you call us or email us before you place your order so we can offer an alternate product. We unfortunately will not ship equipment that falls under the minimum DOE requirements to those states.
The Goodman GSX130601 Air Conditioner Condenser with a SEER rating up to 14 SEER will keep you as cool as a cucumber
Known as the best air conditioner the Goodman GSX130601 air conditioner condenser is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSX13 GSX130601 air conditioner condenser is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

Goodman brand air conditioners such as the GSX130601 take pride in its company heritage.
Goodman brand air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSX130601 air conditioner condensers ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand cooling systems are designed, engineered and assembled in the United States.
When you think of the Goodman GSX130601 air conditioner condenser, consider it as the art of precision
Energy-Efficient Scroll Compressor - Inside of the Goodman GSX130601 air conditioner condensers you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.
Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX130601 air conditioner condenser simply work the way they're supposed to, making each one a thing of beauty.
Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

Advanced Coil Design

The condenser coil of this air conditioner is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.

Secure Cabinet

The cabinet of the GSX130601 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.

Filter Drier

A filter drier is installed in the liquid line of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.

Quiet Comfort

The louvered top and three-bladed condenser fan of the GSX130601 were designed to reduce noise levels without compromising performance.

Extended Warranty

Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

Product Note

The recommended line set size for this unit will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.

Specifications

Overview

Product Category

Air Conditioning Condensers

UPC

663051605251

General Information

Type

Condenser

Product Line

GSX13

Product Category

Air Conditioning Condensers

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Cooling

Refrigerant Type

R-410a

Installation Location

Outdoor

Compressor Stages

Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.

Single Stage

DOE Regional Compliance

In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.

North

Performance

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

5.0 Tons

Cooling BTU

60000

Cooling Capacity

60000 BTU

SEER

SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.

13.0

EER

EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.

11.0

Maximum Sound Level

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

77 dB

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

33 Amps

Recommended Breaker Size

50 Amps

Dimensions

Suction Connection Size

1 1/8 Inches

Liquid Connection Size

3/8 Inch

Product Height

40 Inches

Product Width

29 Inches

Product Depth

29 Inches

Product Weight

184 Pounds

Shipping Weight

202 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

Limited* 10 Years Years

Reviews

(1)

Reviews

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals

Goodman GSX13 Brochure

Goodman GSX13 Technical Manual

Goodman GSX13 Service Manual

Goodman GSX13 Spec Sheet

Goodman GSX13 Installation Manual

Goodman GSX13 Warranty
