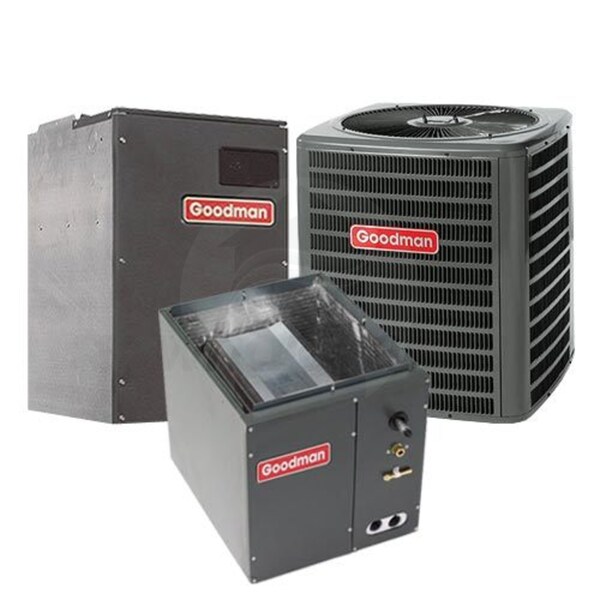

Goodman - 3.0 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER

Model: GSX130361 MBVC1600AA-1 CAPFA3626C6 Item Number: 118548
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
PREVIOUS
NEXT
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Enlarge Image
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6
View All
Originally $2,871.00
Add to Cart for Lower Price
synchrony card icon
$46 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 4-6 Weeks
Goodman - 3.0 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER
Goodman - 3.0 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER Model: GSX130361 MBVC1600AA-1 CAPFA3626C6 Item Number: 118548
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    248 Pounds Learn More
    248 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Conditioner & Air Handler Package
Bundle Includes 3 items
  • product image
    (1) Goodman 3 Ton 13 SEER Air Conditioner Condenser with R410A Refrigerant (GSX130361)
  • product image
    (1) Goodman 3.5 to 4 Ton Air Conditioner Modular Blower Variable Speed (MBVC1600AA-1)
  • product image
    (1) Goodman 3 Tons 21 in. Wide Air Conditioner Cased Coil (CAPFA3626C6)
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX13 air conditioner, a MBVC16 modular blower, and a cased CAPFA evaporator coil making it the ideal solution for most parts of the country. It's the perfect kit for areas that use an average amount of cooling but want a multi-speed furnace for the long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX130361 MBVC1600AA-1 CAPFA3626C6 air conditioner and furnace kit fits the bill perfectly.
  • The manufacturer model number(s): Goodman GSX130361 MBVC1600AA-1 CAPF3642C6
  • AHRI Reference Number: 8655543 * *May change based on the Manufacturer revision
  • Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Air Conditioner & Air Handler Package
    General Information
    Product Category
    Air Conditioner & Air Handler Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Blower Motor
    ECM Variable-Speed
    Coil Width
    21 Inches
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North and Southeast
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling Capacity
    34000 BTU
    Nominal Cooling Capacity
    24000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.5
    Maximum Air Flow
    735 CFM
    Dimensions
    Product Weight
    248 Pounds
    Shipping Weight
    263 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    205282624
    General Information
    Type
    Condenser
    Product Line
    GSX13
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    13.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.0
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    74 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    19 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    27 1/2 Inches
    Product Width
    26 Inches
    Product Depth
    26 Inches
    Product Weight
    139 Pounds
    Shipping Weight
    157 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Type
    Air Handler
    Product Line
    MBVC
    Product Category
    Forced Air Blower
    Blower Motor
    Variable Speed
    Motor Type
    ECM
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Electric Heat
    Available
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 Tons
    Maximum Air Flow
    1600 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    6.3 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Product Height
    30 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    80 Pounds
    Shipping Weight
    90 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years
    Overview
    Product Category
    Forced Air Blower
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-22/R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling BTU
    36000
    Nominal Minimum Cooling Capacity
    36000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    26 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    39 Pounds
    Shipping Weight
    49 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Overview
    Product Category
    Evaporator Coil
