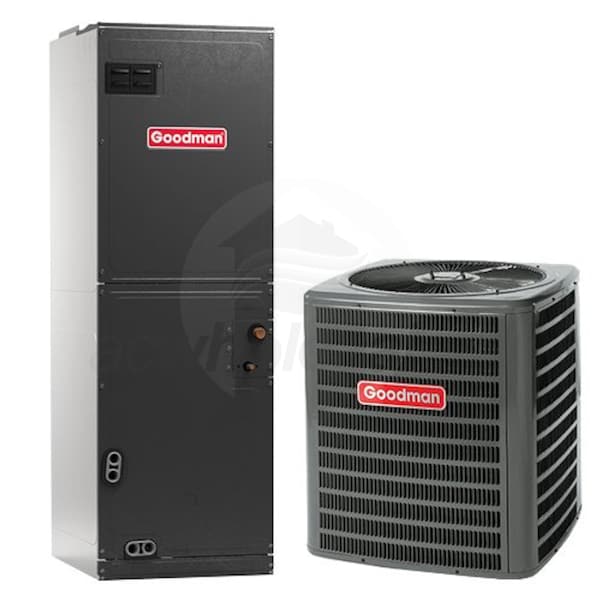

Goodman - 2.0 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER

Name: Goodman - 2.0 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER
Brand: Goodman
SKU: 87429
Availability: OutOfStock

Model: GSX13024 ASPT29B14 Item Number: 87429

(0)

Write A Review

Enlarge Image

View All

(0)

Write A Review

Specification Highlights

Condition

New

Weight

231 Pounds

Product Category

Air Conditioner & Air Handler Package

Bundle Includes 2 items

(1) Goodman 2 Ton 13 SEER Air Conditioner Condenser with R410A Refrigerant (GSX130241)
(1) Goodman 2 Ton Air Conditioner Air Handler with Smart Frame Cabinet (ASPT29B14)

View Full Bundle

Features & Bundle Details

Overview for Goodman GSX13024 ASPT29B14

The Goodman brand is one of the biggest names in home cooling and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

PLEASE NOTE

The US Department of Energy (DOE) regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions for the United States. We are required to abide by these regulations when selling these types of products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you live in any of the following states - AL, AR, DC, DE, FL, GA, KY, LA, MD, MS, NC, OK, SC, TN, TX or VA and are planning to have the product shipped to those states it is strongly recommend you call us or email us before you place your order so we can offer an alternate product. We unfortunately will not ship equipment that falls under the minimum DOE requirements to those states. (Learn More)

The Goodman GSX130241 Air Conditioner Condenser with a SEER rating up to 14 SEER will keep you as cool as a cucumber

Known as the best air conditioner the Goodman GSX130241 air conditioner condenser is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSX13 GSX130241 air conditioner condenser is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

Goodman brand air conditioners such as the GSX130241 take pride in its company heritage.

Goodman brand air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSX130241 air conditioner condensers ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand cooling systems are designed, engineered and assembled in the United States.

When you think of the Goodman GSX130241 air conditioner condenser, consider it as the art of precision

Energy-Efficient Scroll Compressor- Inside of the Goodman GSX130241 air conditioner condensers you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.

Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX130241 air conditioner condenser simply work the way they're supposed to, making each one a thing of beauty.

Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.

Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.

Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

Overview for Goodman ASPT29B14 Air Conditioner Air Handler

The Goodman ASPT29B14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate and the cabinet is fully painted in an Architectural Gray finish. The Goodman ASPT29B14 Air Conditioner Air Handler feature a direct-drive, multi-speed ECM blower motor. Also the Goodman ASPT29B14 Air Conditioner Air Handler reduces the likelihood of hot and cold spots in the house and provides increased efficiency over standard efficiency motors. All functional parts are covered by a 10-Year Parts Limited Warranty.

The Goodman ASPT ASPT29B14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

A history of the Goodman ASPT ASPT29B14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor

Known as the best modular blower around, the Goodman ASPT ASPT29B14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman ASPT ASPT29B14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

Goodman brand Air handlers - Electric Furnaces such as the ASPT29B14 take pride in its company heritage.

Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman modular blowers were designed to add a smile every time you open your utility bill. The Goodman ASPT ASPT29B14 Multi speed, Multi position Air Handler Electric Furnace ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

Goodman ASPT ASPT29B14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor are considered as the art of precision

All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.

Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)

Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.

AHRI Reference Number: 8377349* *May change based on the Manufacturer revision

The manufacturer model number(s): Goodman GSX130241 ASPT29B14

Bundle Includes 2 items

Goodman 2 Ton 13 SEER Air Conditioner Condenser with R410A Refrigerant
Model: GSX130241
Item Number: 26117
Quantity: 1
Goodman 2 Ton Air Conditioner Air Handler with Smart Frame Cabinet
Model: ASPT29B14
Item Number: 61919
Quantity: 1

Specifications

Included In This Bundle

Bundle Overview

GSX130241 Specifications

ASPT29B14 Specifications

Overview

Product Category

Air Conditioner & Air Handler Package

General Information

Product Category

Air Conditioner & Air Handler Package

Operating Mode

Cooling

Configuration

Multi-Position

DOE Regional Compliance

North

Performance

Capacity

2.0 Tons

Cooling Capacity

22800 BTU

Nominal Cooling Capacity

24000 BTU

SEER

14.0

EER

12.0

Maximum Air Flow

790 CFM

Dimensions

Product Weight

231 Pounds

Shipping Weight

244 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

AHRI Reference Number

204737873

General Information

Type

Condenser

Product Line

GSX13

Product Category

Air Conditioning Condensers

Operating Mode

Cooling

Refrigerant Type

R-410a

Installation Location

Outdoor

Compressor Stages

Single Stage

DOE Regional Compliance

North

Installation Available

Yes

Performance

Capacity

2.0 Tons

Cooling BTU

24000

Cooling Capacity

24000 BTU

SEER

13.0

EER

11.0

Maximum Sound Level

75 dB

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

18 Amps

Recommended Breaker Size

30 Amps

Dimensions

Suction Connection Size

3/4 Inch

Liquid Connection Size

3/8 Inch

Product Height

25 3/4 Inches

Product Width

23 Inches

Product Depth

23 Inches

Product Weight

115 Pounds

Shipping Weight

128 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

Warranty Information

Parts Warranty

Limited* 10 Years Years

Overview

Product Category

Air Conditioning Condensers

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Manuals

Goodman GSX13 Warranty

Goodman GSX13 Brochure

Goodman GSX13 Technical Manual

Goodman GSX13 Service Manual

Goodman GSX13 Spec Sheet

Goodman GSX13 Installation Manual

Goodman ASPT Warranty

Goodman ASPT Spec Sheet

Goodman ASPT Brochure

Goodman ASPT Installation Manual

Goodman ASPT Service Manual
