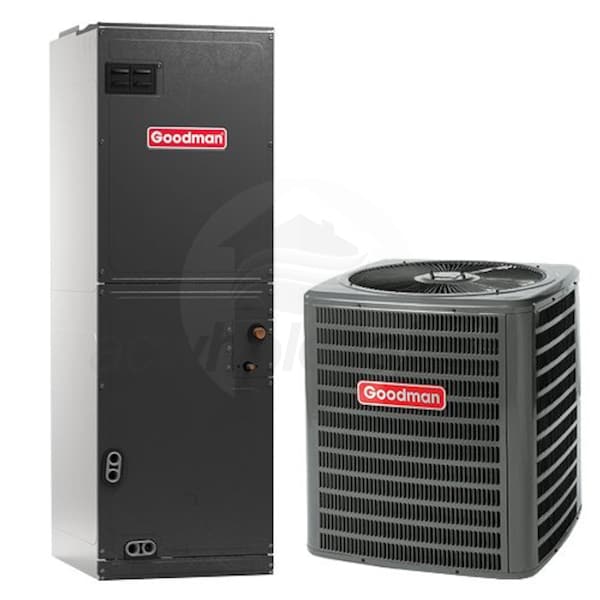

Goodman - 1.5 Ton Cooling - Air Conditioner + Air Handler System - 14.0 SEER

Model: GSX13018 ASPT33C14 CSR-U-1 Item Number: 88948
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Goodman GSX13018 ASPT33C14 CSR-U-1
PREVIOUS
NEXT
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Enlarge Image
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Watch Video
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
Goodman GSX13018 ASPT33C14 CSR-U-1
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    221 Pounds Learn More
    221 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Conditioner & Air Handler Package
View More
Bundle Includes 3 items
  • product image
    (1) Goodman 2.5 Ton Air Conditioner Air Handler with Smart Frame Cabinet (ASPT33C14)
  • product image

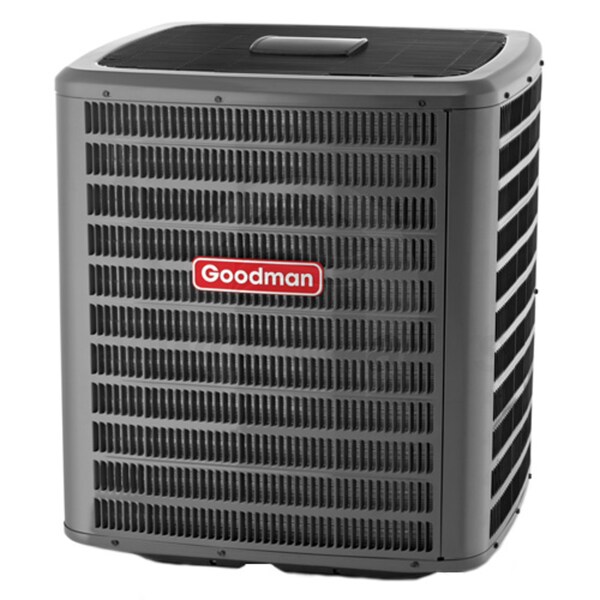

    (1) Goodman 1.5 Ton 13 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX130181)
  • product image
    (1) Goodman Hard Start Kit for 1 to 3 Ton Units (CSR-U-1)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX13018 ASPT33C14 CSR-U-1

Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing - building the most reliable and refreshingly affordable indoor comfort products in the market. The complete line of Goodman brand products are built on the principles of founder Harold Goodman, a former air conditioning contractor. Building Goodman products to Harold's standards, and protecting those products with some of the best limited warranties in the industry, has helped to make the Goodman brand widely recognized as a leading brand in the residential and light commercial heating, ventilation and air conditioning industry today.
  • The manufacturer model number(s): Goodman GSX130181 ASPT33C14 CSR-U-1
  • AHRI Reference Number: 201498141 * *May change based on the Manufacturer revision
    • Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    ASPT33C14 Specifications
    GSX130181 Specifications
    CSR-U-1 Specifications
    Overview
    Product Category
    Air Conditioner & Air Handler Package
    General Information
    Product Category
    Air Conditioner & Air Handler Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.5 Tons
    Cooling Capacity
    18000 BTU
    Nominal Cooling Capacity
    18000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.0
    Maximum Air Flow
    615 CFM
    Dimensions
    Product Weight
    221 Pounds
    Shipping Weight
    236 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    201830153
    General Information
    Type
    Air Handler
    Product Line
    ASPT
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    EEM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    Installation Available
    Yes
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling BTU
    24000
    Maximum Air Flow
    1560 CFM
    Minimum Air Flow
    865 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    6 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    49 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    102 Pounds
    Shipping Weight
    118 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Limited Years
    Overview
    Product Category
    Air Handler
    General Information
    Type
    Condenser
    Product Line
    GSX13
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.5 Tons
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    13.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.0
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    75 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    9 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    25 3/4 Inches
    Product Width
    23 Inches
    Product Depth
    23 Inches
    Product Weight
    102 Pounds
    Shipping Weight
    117 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Product Category
    Forced Air Accessories
    Dimensions
    Shipping Height
    3 29/48 Inches
    Shipping Width
    4 43/48 Inches
    Shipping Length
    12 19/48 Inches
    Shipping Weight
    0.5 Pounds
