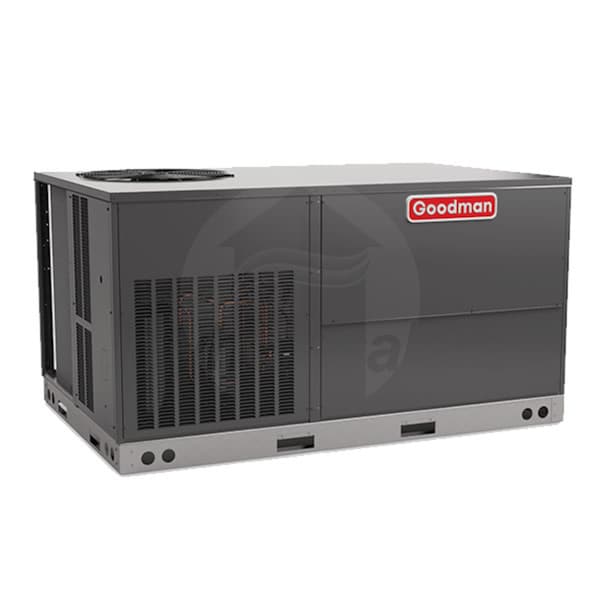

Goodman GPH16M - 5.0 Ton - Packaged Heat Pump System - 16.0 SEER - 8.2 HSPF - Downflow/Horizontal - 208-230/1/60
Goodman GPH16M - 5.0 Ton - Packaged Heat Pump System - 16.0 SEER - 8.2 HSPF - Downflow/Horizontal - 208-230/1/60 Model: GPH1660M41 Item Number: 72285
$6,559.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    583 Pounds Learn More
    583 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Packaged HVAC Unit
    UPC
    663051537439
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman GPH1660M41

Goodman\'s packaged units are the perfect all-in-one comfort solution for nearly any residential or light commercial application. The GPH16M combines a Goodman heat pump, evaporator coil, and blower to provide efficient heating and cooling IN a single unit. A rotary compressor means less maintenance, and Goodman\'s superior coil design helps to ensure efficient energy use. The GPH16M even features convenient access panels that make installation and maintenance a breeze.
  • Product Features
  • Two-stage heating and cooling
  • Multi-Speed Product Features
  • Liquid-line filter drier
  • Convertible airflow: horizontal or downflow
  • Copper tube / aluminum fin condenser coils
  • All-aluminum evaporator coil
  • Totally enclosed, permanently lubricated condenser fan motor
  • Electric heat kit available as a field-installed option
  • Our SKU number(s): Goodman GPH1660M41
  • The manufacturer model number(s): Goodman GPH1660M41
  • Product Note
    NOTE: This model has been temporarily suspended from production.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Packaged HVAC Unit
    UPC
    663051537439
    General Information
    Type
    Heat Pump Packaged Unit
    Product Line
    GPH16M
    Product Category
    Packaged HVAC Unit
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Blower Motor Speed
    Multi-Speed
    Motor Type
    EEM
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow/Horizontal
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    5.0 Tons
    Cooling BTU
    60000
    Heating Capacity
    55000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.0
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    8.2
    Maximum Air Flow
    1811 CFM
    Minimum Air Flow
    1233 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    78 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    42.5 Amps
    Recommended Breaker Size
    60 Amps
    Dimensions
    Product Height
    42 3/4 Inches
    Product Width
    47 Inches
    Product Depth
    51 Inches
    Product Weight
    583 Pounds
    Shipping Weight
    612 Pounds
    Certifications
    ETL Listed
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    9134480
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    Limited* 10 Years
    Compressor Warranty
    Limited* 10 Years
