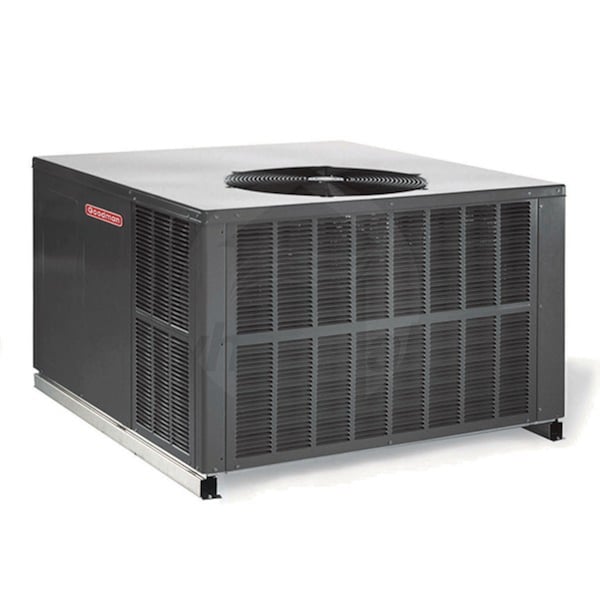

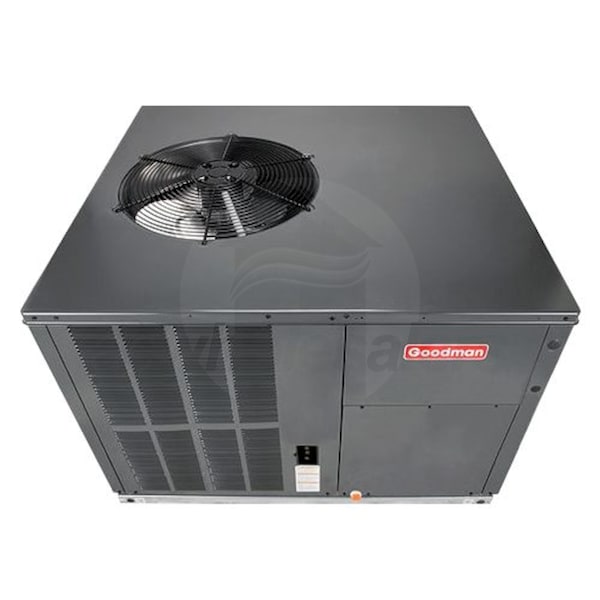

Goodman 3 Ton 16 SEER 80,000 BTU Gas/Electric Package Unit

Name: Goodman 3 Ton 16 SEER 80,000 BTU Gas/Electric Package Unit
Brand: Goodman
SKU: 61985
Availability: InStock

Model: GPG1636080M41 Item Number: 61985

Ask a Question

Enlarge Image

View All

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

375 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Product Category

Packaged HVAC Unit

UPC

663051513143

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features

Overview for Goodman GPG1636080M41

Overview for Goodman GPG1636080M41
The Goodman GPG1636080M41 3 Ton 16 SEER 80,000 BTU Gas Electric Air Conditioner Package Unit provides efficient electric heating and cooling to your home or business, keeping you cool in the summer and warm with gas heat in the winter. Also the Goodman GPG1636080M41 Gas Electric Air Conditioner Package Unit offer's the legendary quality and affordability associated with the Goodman brand and is backed by some of the best warranty coverages in the heating and cooling industry.

Aluminized-Steel Heat Exchanger

The GPG16's furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized-steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

High-Efficiency Coils

The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer

Second Stage

This unit features a two-stage gas valve to ensure consistent, efficient heating. When the heating demand in your home is low, the furnace will consume less fuel. If more heat is needed, it can just step up to the second stage.

Secure Design

The cabinet of the GPG1636080M41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.

Filter Drier

A filter drier is installed in the liquid line of this packaged unit's air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the condenser.

Quiet Comfort

A sound insulated blower compartment means that the GPG1636080M41 provides year-round comfort without disrupting your home.

Scroll Compressor

This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.

ECM Blower

PSC blower motors are energy hogs. The ECM motor in the GPG1636080M41 consumes less electricity, ensuring energy-efficient circulation.

Extended Warranty

Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

Product Note

The Goodman 20464502PDGK Horizontal Duct Cover Kit is required for downflow installation. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.

Specifications

Overview

Product Category

Packaged HVAC Unit

UPC

663051513143

General Information

Type

Gas/Electric Packaged Unit

Product Line

GPG16

Product Category

Packaged HVAC Unit

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Heating and Cooling

Fuel Type

To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.

Natural Gas

Modulating/Staging

Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.

Two Stage

Refrigerant Type

R-410A

Blower Motor Speed

Multi-Speed

Motor Type

ECM

Configuration

Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.

Downflow/Horizontal

Installation Location

Outdoor

Gas Conversion Kit

Available

Compressor Stages

Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.

Two Stage

DOE Regional Compliance

In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.

Nationwide (Except CA)

Performance

AFUE

AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.

81 %

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

3.0 Tons

Cooling Capacity

34000 BTU

Heating Capacity

80000 BTU

SEER

SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.

16.0

EER

EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.

12.0

Maximum Air Flow

1577 CFM

Minimum Air Flow

1151 CFM

Maximum Sound Level

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

76 dB

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

27 Amps

Recommended Breaker Size

40 Amps

Dimensions

Product Height

35 Inches

Product Width

66 Inches

Product Depth

34 Inches

Product Weight

375 Pounds

Shipping Weight

385 Pounds

Certifications

ETL Listed

Yes

Energy Star Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

AHRI Reference Number

8082384

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

10 Limited Years

Compressor Warranty

Limited* 10 Years
