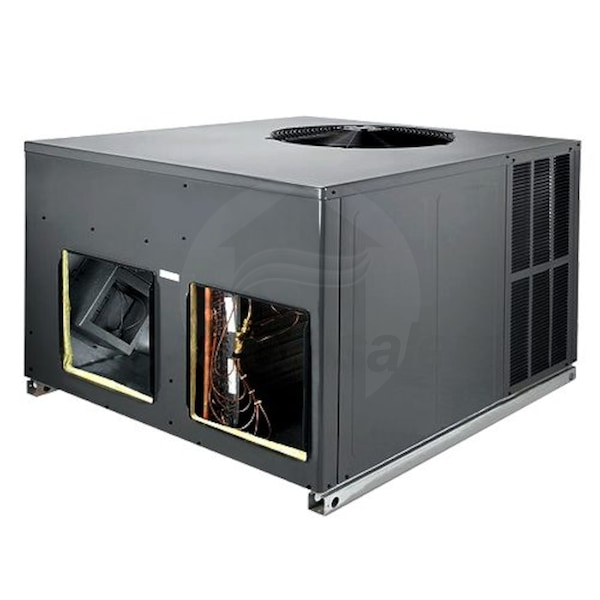

Goodman 2.5 Ton 15.5 SEER 80,000 BTU Gas/Electric Package Unit

Model: GPG1630080M41 Item Number: 61984
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Goodman GPG1630080M41
PREVIOUS
NEXT
Goodman GPG1630080M41
Goodman GPG1630080M41
Goodman GPG1630080M41
Enlarge Image
Goodman GPG1630080M41
Goodman GPG1630080M41
Watch Video
Goodman GPG1630080M41
Watch Video
Goodman GPG1630080M41
Watch Video
Goodman GPG1630080M41
Watch Video
Goodman GPG1630080M41
Watch Video
Goodman GPG1630080M41
Goodman GPG1630080M41
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    315 Pounds Learn More
    315 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Gas/Electric Packaged Unit
    Product Line
    GPG16
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman GPG1630080M41

Overview for Goodman GPG1630080M41
The Goodman GPG1630080M41 2.5 Ton 16 SEER 80,000 BTU Gas Electric Air Conditioner Package Unit provides efficient electric heating and cooling to your home or business, keeping you cool in the summer and warm with gas heat in the winter. Also the Goodman GPG1630080M41 Gas Electric Air Conditioner Package Unit offer's the legendary quality and affordability associated with the Goodman brand and is backed by some of the best warranty coverages in the heating and cooling industry.
  • Aluminized-Steel Heat Exchanger
  • The GPG16's furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized-steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
  • High-Efficiency Coils
  • The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer
  • Second Stage
  • This unit features a two-stage gas valve to ensure consistent, efficient heating. When the heating demand in your home is low, the furnace will consume less fuel. If more heat is needed, it can just step up to the second stage.
  • Secure Design
  • The cabinet of the GPG1630080M41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.
  • Filter Drier
  • A filter drier is installed in the liquid line of this packaged unit's air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the condenser.
  • Quiet Comfort
  • A sound insulated blower compartment means that the GPG1630080M41 provides year-round comfort without disrupting your home.
  • Scroll Compressor
  • This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • ECM Blower
  • PSC blower motors are energy hogs. The ECM motor in the GPG1630080M41 consumes less electricity, ensuring energy-efficient circulation.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
    • Product Note
    The Goodman 20464501PDGK Horizontal Duct Cover Kit is required for downflow installation. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Specifications
    View More

    Specifications

    General Information
    Type
    Gas/Electric Packaged Unit
    Product Line
    GPG16
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    ECM
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow/Horizontal
    Installation Location
    Outdoor
    Gas Conversion Kit
    Available
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Two Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    UPC
    663051513136
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    81 %
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 Tons
    Cooling Capacity
    29000 BTU
    Heating Capacity
    80000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.0
    Maximum Air Flow
    1462 CFM
    Minimum Air Flow
    1005 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    76 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    23 Amps
    Recommended Breaker Size
    35 Amps
    Dimensions
    Product Height
    30 Inches
    Product Width
    66 Inches
    Product Depth
    34 Inches
    Product Weight
    315 Pounds
    Shipping Weight
    325 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    8082383
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
    Compressor Warranty
    Limited* 10 Years
