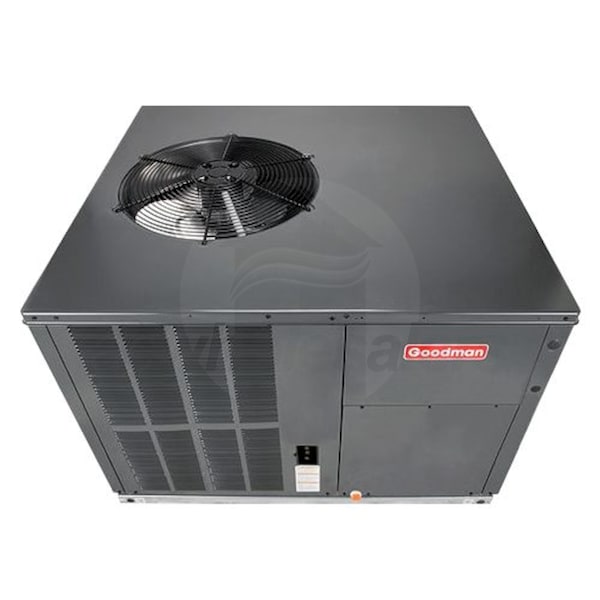

Goodman 5 Ton 14 SEER 100,000 BTU Gas/Electric Package Unit

Name: Goodman 5 Ton 14 SEER 100,000 BTU Gas/Electric Package Unit
Brand: Goodman
SKU: 61981
Availability: InStock
Rating: 4.00 (1 reviews)

Model: GPG1461100M41 Item Number: 61981

(1)

Ask a Question

Enlarge Image

View All

Originally $3,954.00

Add to Cart for Lower Price

$63 / Month

With our 86 months 11.99% APR*

86 fixed monthly payments required.

Click for important monthly payment and offer information.

Ships in 4-6 Weeks

Goodman 5 Ton 14 SEER 100,000 BTU Gas/Electric Package Unit Model: GPG1461100M41 Item Number: 61981

Accessories

Features

Specifications

Reviews

Product Q&A

Manuals

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.

Free Lift Gate

*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.

Low Price Guarantee

Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

538 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Type

Gas/Electric Packaged Unit

Product Line

GPG14

Cooling Capacity (Tons)

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

Heating Capacity (BTU)

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features

Overview for Goodman GPG1461100M41

Overview for Goodman GPG1461100M41
The Goodman GPG1461100M41 5 Ton 14 SEER 100,000 BTU Gas Electric Air Conditioner Package Unit provides efficient electric heating and cooling to your home or business, keeping you cool in the summer and warm with gas heat in the winter. Also the Goodman GPG1461100M41 Gas Electric Air Conditioner Package Unit offer's the legendary quality and affordability associated with the Goodman brand and is backed by some of the best warranty coverages in the heating and cooling industry.

Product Features

ECM blower motor

R-410A chlorine-free refrigerant

Durable, corrosion-resistant aluminized steel tubular heat exchanger

Aluminum tube / aluminum fin coils

Direct spark ignition system

Self-diagnostic blower operation and safety circuits

Redundant gas valve and easy conversion to propane

Louvered condenser coil protection

All models comply with California Low NOx emission standards

AHRI certified; ETL listed

Our SKU number(s): Goodman GPG1461100M41

The manufacturer model number(s): Goodman GPG1461100M41

Product Note

The Goodman 20464502PDGK Horizontal Duct Cover Kit is required for downflow installation.

Specifications

General Information

Type

Gas/Electric Packaged Unit

Product Line

GPG14

Operating Mode

Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.

Heating and Cooling

Fuel Type

To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.

Natural Gas

Modulating/Staging

Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.

Two Stage

Refrigerant Type

R-410A

Blower Motor

Multi-Speed

Motor Type

ECM

Configuration

Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.

Downflow/Horizontal

Installation Location

Outdoor

Gas Conversion Kit

Available

Compressor Stages

Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.

Two

DOE Regional Compliance

In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.

Nationwide

UPC

663051520752

Performance

AFUE

AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.

81 %

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

5.0 Tons

Cooling Capacity

58000 BTU

Heating Capacity

100000 BTU

SEER

SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.

14.0

EER

EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.

11.0

Maximum Air Flow

1940 CFM

Minimum Air Flow

1660 CFM

Maximum Sound Level

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

78 dB

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

35 Amps

Recommended Breaker Size

50 Amps

Dimensions

Product Height

42 3/4 Inches

Product Width

47 Inches

Product Depth

51 Inches

Product Weight

538 Pounds

Shipping Weight

560 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

AHRI Reference Number

8321898

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

10 Limited Years

Heat Exchanger Warranty

10 Limited Years

Compressor Warranty

Limited* 10 Years

Reviews

(1)

Reviews

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals

Goodman Warranty

Goodman Catalog

Goodman GPG14M Installation Manual

Goodman GPG14M Service Manual

Goodman GPG14M Spec Sheet

Goodman GPG14M User Manual
