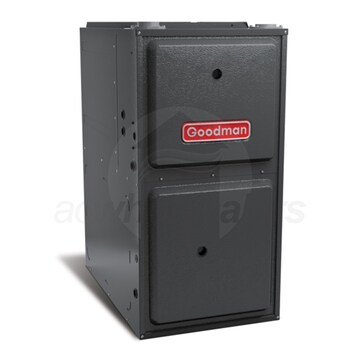

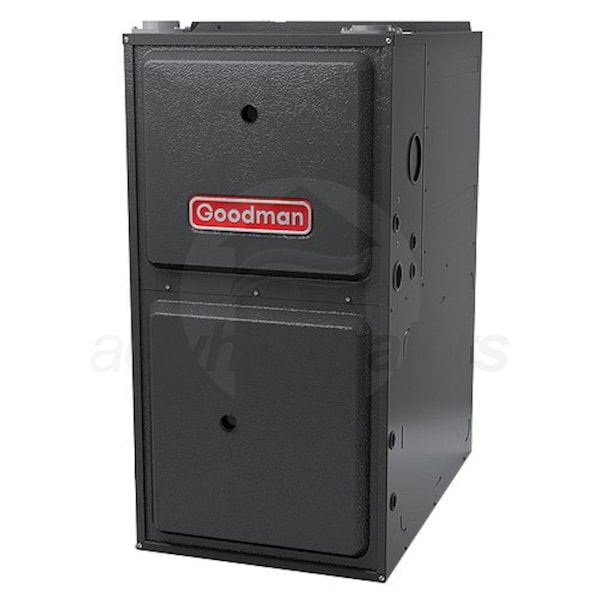

Goodman 92% AFUE 60,000 BTU Upflow 1 Stage Gas Furnace Heater

Model: GMSS920603BN Item Number: 26564
(4)
Ask a Question
Goodman GMSS920603BN
Goodman GMSS920603BN
Goodman GMSS920603BN
Goodman GMSS920603BN
Goodman GMSS920603BN
Goodman GMSS920603BN
View All
Goodman GMSS920603BN
Goodman GMSS920603BN
Goodman GMSS920603BN
Enlarge Image

Price Match

PLUS Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
$788.00
24 In-Stock
Ships Wednesday, Nov 14th
Free Shipping *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Free Lift Gate *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Goodman 92% AFUE 60,000 BTU Upflow 1 Stage Gas Furnace Heater Model: GMSS920603BN Item Number: 26564
$788.00
24 In-Stock
QTY
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Save For Later
Ask a Question
Condition: New This product is new and has never been used. It's in its original packaging, which has not been opened.
Specification Highlights
    Type
    Gas Furnace
    Product Line
    GMSS92
    Fuel Type
    Natural Gas
    Vent Type
    Direct Vent
View More
Orientation
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Recommended Accessories
Required Accessories Add All Required
Optional Accessories
Features

Features

Overview for Goodman GMSS920603BN

    Overview for Goodman GMSS920603BN Gas Furnace Heater

    The Goodman GMSS92 Gas Furnace with single-stage gas valve and a multi-speed circulating blower provides efficient and economical performance. This furnace's 92% AFUE rating means 92 cents of every $1.00 of heating energy expense warms your home. Some older central heating systems rate at 60% AFUE, meaning only 60 cents of every $1.00 of heating energy expense warms your home.

    The Goodman GMSS92 92% AFUE Single Stage, Multi-speed, Multi position Upflow Series GMSS920603BN Gas Furnace Heaters.

    The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That
  • All models comply with California Low NOx emissions standards
  • Color-coded low-voltage terminals
  • Self-diagnostic control board
  • Quiet single-speed induced draft blower
  • Durable Silicon Nitride igniter
  • Single-stage gas valve
  • Stainless-steel secondary heat exchanger
  • Heavy-duty aluminized-steel tubular heat exchanger
  • Our SKU number(s): Goodman GMSS920603BN
  • The manufacturer model number(s): Goodman GMSS920603BN
  • AHRI Reference Number: 7367472*
    *May change based on the Manufacturer revision
Specifications

Specifications

General Information
Type
Gas Furnace
Product Line
GMSS92
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Single Stage
Blower Type Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
PSC Multi-Speed
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
UPC
663051496439
Performance
Nominal Heating Capacity
60000 BTU
High Fire Input
60000 BTU
High Fire Output
55260 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
92 %
Maximum Air Flow
1200 CFM
Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9.6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 Inches
Product Height
34.5 Inches
Product Width
17.5 Inches
Product Depth
28.75 Inches
Shipping Weight
112 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7367472
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Heat Exchanger Warranty
20 Years
