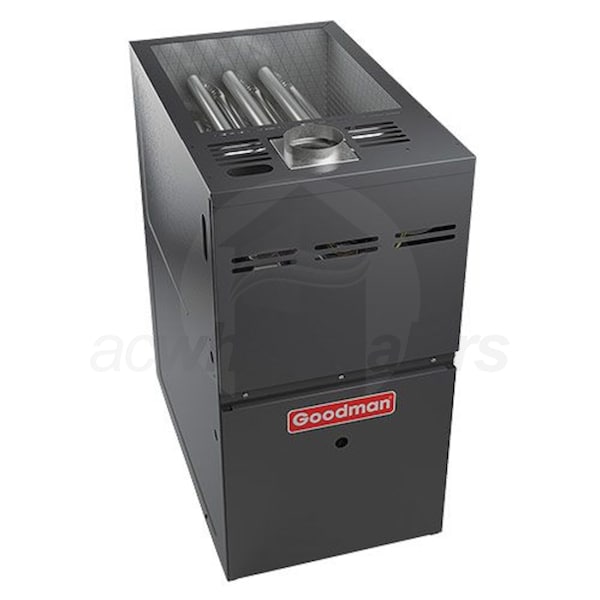

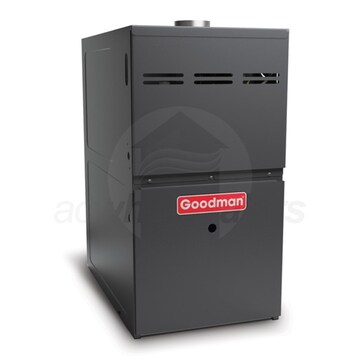

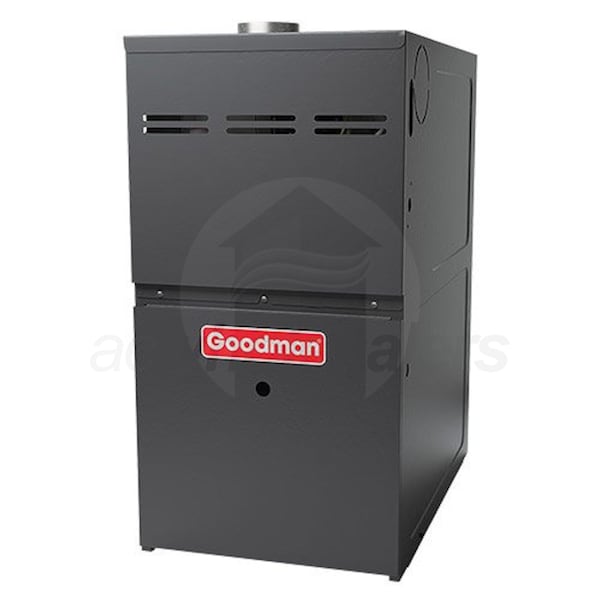

Goodman 80% AFUE 100,000 BTU 2 Stage Upflow/Horizontal Gas Furnace
Goodman 80% AFUE 100,000 BTU 2 Stage Upflow/Horizontal Gas Furnace Model: GMH81005CN Item Number: 26190
7 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping ? *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate ? *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee ? Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New ? This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Gas Furnace
    Product Line
    GMH8
    Fuel Type
    Natural Gas
View More
Gas Valve Stages
? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Select Attribute
Low NOx Output
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman GMH81005CN

Overview for Goodman GMH81005CN Gas Furnace HeaterUnlike conventional, single-stage furnace technology, Goodman's Dual Saver technology eliminates the temperature swings resulting from abrupt, high-stage stops and starts of the furnace by operating at a low heating state the majority of the time. This gas furnace has an AFUE rating of 80%, which means that 80 cents of every $1.00 of heating energy expense warms your home. The Goodman GME8 Two Stage, Multi-speed, Multi-position ECM Motor Series GMH81005CN Gas Furnace Heaters. The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That

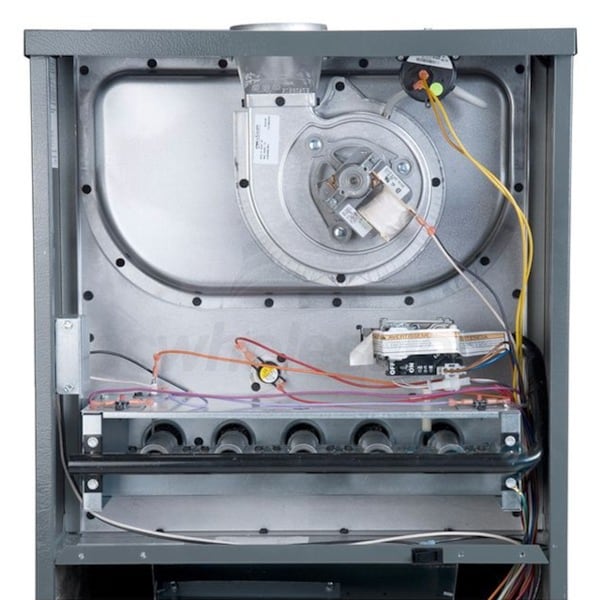

  • Dual-diameter tubular heat exchanger
  • Two-stage gas valve control technology allows installer to activate the two-stage valve with the flip of a dipswitch
  • 110V Silicon Nitride igniter
  • Quiet four-speed direct-drive circulating blower motor

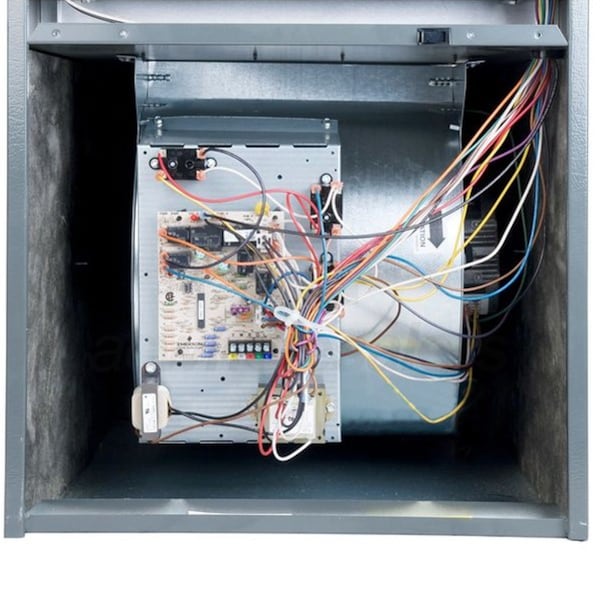

  • Furnace control board with self-diagnostics, color-coded low-voltage terminals and provisions for electronic air cleaner and 24-volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self-adjusting feature automatically adjusts furnace to high- or low-stage operation based on outside temperature without an outdoor temperature sensor
  • Certain models available with low NOx emissions
  • Our SKU number(s): Goodman GMH81005CN
  • The manufacturer model number(s): Goodman GMH81005CN
  • Specifications
    View More

    Specifications

    General Information
    Type
    Gas Furnace
    Product Line
    GMH8
    Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Type ? Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
    PSC Multi-Speed
    Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    UPC
    663051572522
    Performance
    Nominal Heating Capacity
    100000 BTU
    High Fire Input
    100000 BTU
    High Fire Output
    80000 BTU
    Low Fire Input
    75000 BTU
    Low Fire Output
    60000 BTU
    AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Maximum Air Flow
    2000 CFM
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    12.5 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    21 Inches
    Product Height
    33 3/8 Inches
    Product Width
    21 Inches
    Product Depth
    28 3/4 Inches
    Shipping Weight
    154 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    5012611
    Warranty Information
    Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
