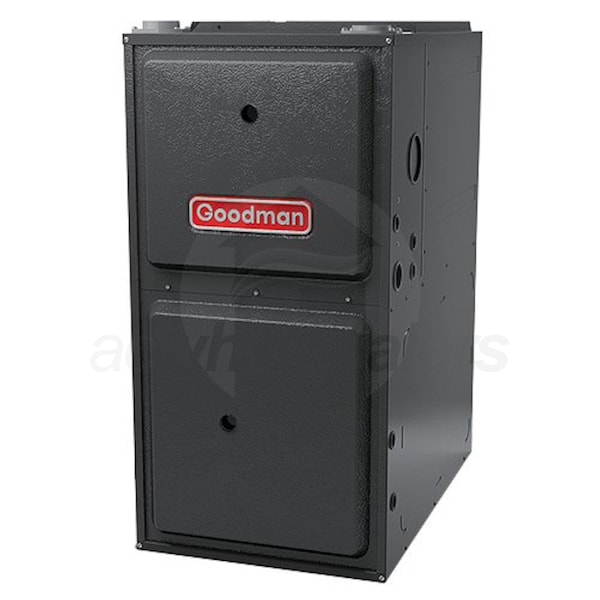

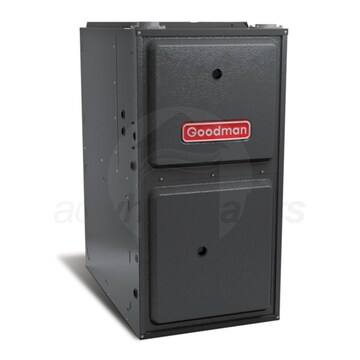

Goodman 96% AFUE 100,000 BTU Upflow 2 Stage Gas Furnace Heater

Model: GMEC961004CN Item Number: 26590
(5)
Ask a Question
Goodman GMEC961004CN
Goodman GMEC961004CN
Goodman GMEC961004CN
Goodman GMEC961004CN
Goodman GMEC961004CN
Goodman GMEC961004CN
View All
Goodman GMEC961004CN
Goodman GMEC961004CN
Goodman GMEC961004CN
Enlarge Image

Price Match

PLUS Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
$1,381.00
17 In-Stock
Ships Wednesday, Nov 14th
Free Shipping *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Free Lift Gate *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Goodman 96% AFUE 100,000 BTU Upflow 2 Stage Gas Furnace Heater Model: GMEC961004CN Item Number: 26590
$1,381.00
17 In-Stock
QTY
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Save For Later
Ask a Question
Condition: New This product is new and has never been used. It's in its original packaging, which has not been opened.
Specification Highlights
    Type
    Gas Furnace
    Product Line
    GMEC96
    Fuel Type
    Natural Gas
    Vent Type
    Direct Vent
View More
Orientation
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Gas Valve Stages
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Motor/Blower Type
Max. Airflow (CFM)
Recommended Accessories
Required Accessories Add All Required
Optional Accessories
Features

Features

Overview for Goodman GMEC961004CN

    Overview for Goodman GMEC961004CN Gas Furnace Heater

    The Goodman GMEC96 High-Efficiency Gas Furnace with two-stage gas valve and a multi-speed circulating blower provides efficient and economical performance. This gas furnace has an AFUE rating of up to 96%, which means that up to 96 cents of every $1.00 of heating energy expense warms your home.

    The Goodman GMEC96 96% AFUE Two Stage, ECM Motor, Multi position Upflow ComfortNet Compatible Series GMEC961004CN Gas Furnace Heaters.

    The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That
  • All models comply with California Low NOx emissions standards
  • Low continuous fan speed options offer quiet air circulation
  • Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
  • Self-diagnostic control board with constant memory fault code history output to a LED
  • Quiet two-speed induced draft blower
  • Durable Silicon Nitride igniter
  • Two-stage gas valve provides quiet, economical heating
  • Stainless-steel secondary heat exchanger
  • Heavy-duty, aluminized-steel tubular heat exchanger
  • Energy-efficient, multi-speed ECM blower motor
  • Our SKU number(s): Goodman GMEC961004CN
  • The manufacturer model number(s): Goodman GMEC961004CN
  • AHRI Reference Number: 7423789*
    *May change based on the Manufacturer revision
Specifications

Specifications

General Information
Type
Gas Furnace
Product Line
GMEC96
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Two Stage
Blower Type Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
ECM Multi-Speed
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
UPC
663051553965
Performance
Nominal Heating Capacity
100000 BTU
High Fire Input
100000 BTU
High Fire Output
96000 BTU
Low Fire Input
70000 BTU
Low Fire Output
67200 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
96 %
Maximum Air Flow
1600 CFM
Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13.3 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 Inches
Product Height
34.5 Inches
Product Width
21 Inches
Product Depth
28.75 Inches
Shipping Weight
140 Pounds
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7423789
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Heat Exchanger Warranty
20 Years
