New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
315 Pounds 315 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
(1) Goodman 3 Ton Air Conditioner Air Handler with Smart Frame Cabinet (ARUF37C14)
(1) Goodman 2.5 to 3 Ton Air Conditioner TXV Kit R410A Refrigerant (TX3N4)
View Full Bundle
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features & Bundle Details
Features & Bundle Details
Overview for Goodman GHP140036036M-C
A Goodman high efficiency central air package is the perfect way to upgrade your home's HVAC system. This pack contains a GSZ14 heat pump and an ARUF air handler. Each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, but their energy efficiency is the real selling point. State-of-the-art design and technology make the GHP140036036M-C an excellent addition to nearly any household looking to reduce their energy spending.
Advanced Coil Design
The coils of the GSZ140361 and ARUF37C14 feature aluminum fins and grooved tubing. This design maximizes surface area and optimizes heat transfer for efficient comfort.
High-Efficiency Compressor
This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
Intelligent Circulation
By scaling the airflow to the demands and challenges of your home, the advanced variable speed blower motor in the ARUF provides ideal circulation in nearly any application while using less energy than traditional motors.
Quiet Comfort
The wire fan discharge grille and condenser fan motor of the GSZ140361 were designed to reduce noise levels without compromising performance.
SmartShift
Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives the GSZ140361 heat pump a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.
Dehumidification
Goodman's air handlers make it easy to stay cool. The ARUF is designed to remove moisture from the air, letting you feel cool at higher temperatures.
SmartFrame
This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
Secure Cabinet
Both components in this system possess a durable cabinet designed to improve the longevity of the system. Additionally, the ARUF37C14's cabinet is reinforced to prevent air and sound leakage.
Product Includes

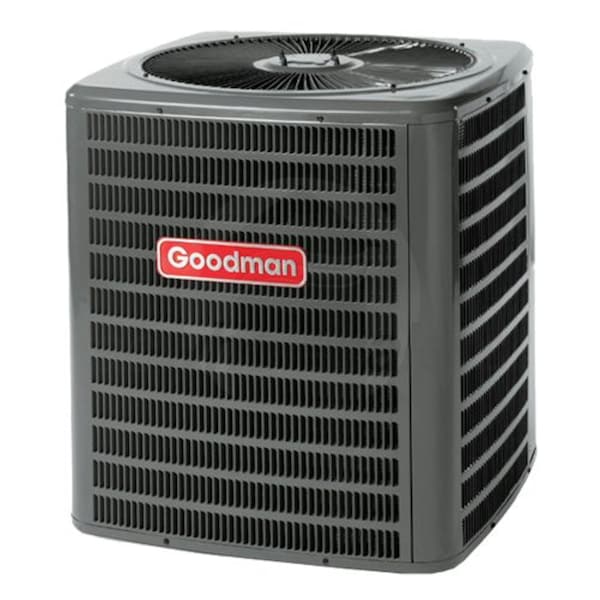

(1) Goodman GSZ140361 Heat Pump

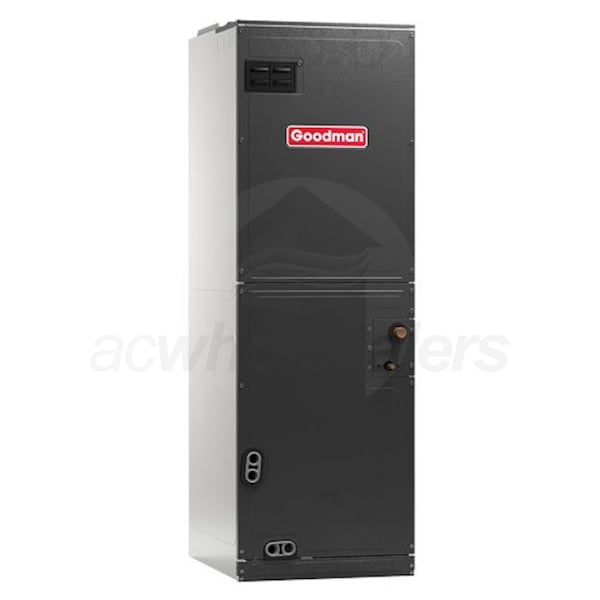

(1) Goodman ARUF37C14 Air Handler
(1) Goodman TX3N4 Thermostatic Expansion Valve
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3 Tons
Cooling Capacity
34600 BTU
Nominal Cooling Capacity
36000 BTU
Heating Capacity
32800 BTU
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
14.0
EER EEREER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
11.5
Maximum Air Flow
1070 CFM
Dimensions
Cabinet Width
21 Inches
Product Weight
315 Pounds
Shipping Weight
331 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7995253
General Information
Type
Heat Pump Condenser
Product Line
GSZ14
Product Category
Heat Pump
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Compressor StagesStages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Installation Available
Yes
Performance
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Cooling Capacity
36000 BTU
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
14.0
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20 Amps
Recommended Breaker Size
35 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
36 1/4 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
183 Pounds
Shipping Weight
199 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
Limited* 10 Years Years
Overview
Product Category
Heat Pump
General Information
Type
Air Handler
Product Line
ARUF
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
PSC
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
No
Performance
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Maximum Air Flow
1625 CFM
Minimum Air Flow
1120 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
53 7/16 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
130 Pounds
Shipping Weight
145 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
10 Limited Years
Overview
Product Category
Air Handler
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories
