Goodman Standard Efficiency - 3 Ton Cooling - 100,000 BTU/Hr Heating - Air Conditioner & Furnace Package - 13 SEER - 80% AFUE - Upflow

Model: GFC138033100U-3 Item Number: 56796
Goodman GFC138033100U-3
PREVIOUS
NEXT
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Enlarge Image
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Watch Video
Goodman GFC138033100U-3
Watch Video
Goodman GFC138033100U-3
Watch Video
Goodman GFC138033100U-3
Watch Video
Goodman GFC138033100U-3
Watch Video
Goodman GFC138033100U-3
Watch Video
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
Goodman GFC138033100U-3
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    310 Pounds Learn More
    310 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Operating Mode
    Heating and Cooling
    Configuration
    Upflow
Bundle Includes 3 items
  • product image
    (1) Goodman 3 Ton 13 SEER Air Conditioner Condenser with R410A Refrigerant (GSX130361)
  • product image
    (1) Goodman 80% AFUE 100,000 BTU 1 Stage Upflow/Horizontal Gas Furnace (GMS81005CN)
  • product image
    (1) Goodman 3 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil (CAPF3636C6)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GFC138033100U-3

A Goodman standard efficiency central air package is the perfect way to update your home's HVAC system. This pack contains a GSX13 air conditioner, a GMS8 furnace, and a cased evaporator coil. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GFC138033100U-3 air conditioner and furnace package fits the bill perfectly.

Product Features

Advanced Coil Design
The coils of the GSX130361 and CAPF3636C6 feature aluminum fins and grooved tubing. This design maximizes surface area and optimizes heat transfer for efficient comfort.

Advanced Heat Exchanger Design
The GMS8 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized-steel is used in construction for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

Quiet Comfort
Goodman takes great pride in providing comfort that doesn't disrupt your home. The GSX130361 and the GMS81005CN feature components that reduce operational noise without compromising performance.

Secure Cabinet
All three components in this system possess a durable cabinet designed to improve the longevity of the system. Additionally, the GMS81005CN's cabinet is reinforced to prevent air and sound leakage.

Product Includes

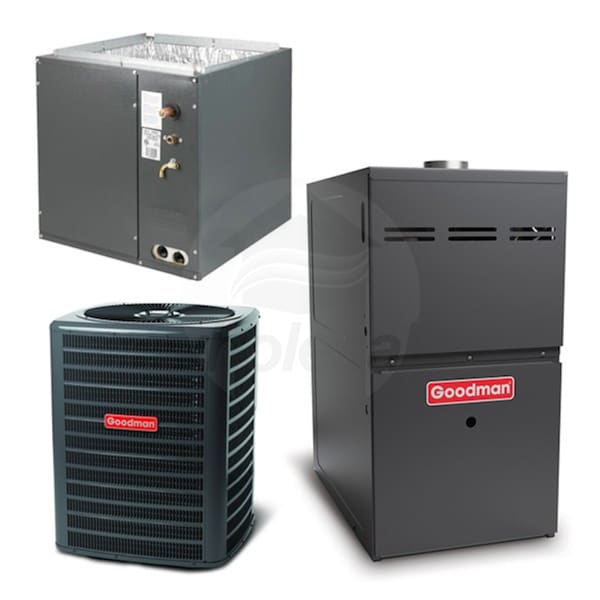

  • (1) Goodman GSX130361 Air Conditioner
  • (1) Goodman GMS81005CN Gas-Fired Furnace
  • (1) Goodman CAPF3636C6 Evaporator Coil
Bundle Includes 3 items
  • product kit image

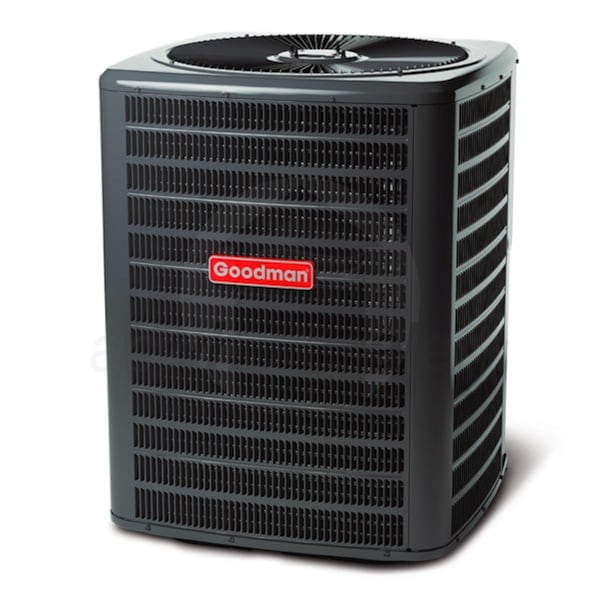

    Goodman 3 Ton 13 SEER Air Conditioner Condenser with R410A Refrigerant
    Model: GSX130361
    Item Number: 26119
    Quantity: 1
  • product kit image
    Goodman 80% AFUE 100,000 BTU 1 Stage Upflow/Horizontal Gas Furnace
    Model: GMS81005CN
    Item Number: 26212
    Quantity: 1
  • product kit image

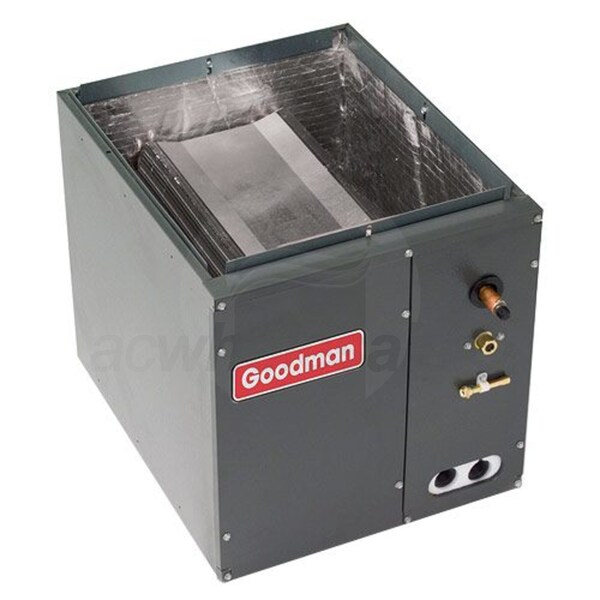

    Goodman 3 Ton 21 in. Wide Air Conditioner Evaporator Cased Coil
    Model: CAPF3636C6
    Item Number: 26366
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
General Information
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide (Except CA, TX and UT)
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
80 %
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3 Tons
Cooling Capacity
33600 BTU
Heating BTU
100000
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
13.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
11.0
Maximum Air Flow
1200 CFM
Dimensions
Product Weight
310 Pounds
Shipping Weight
328 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5696608
General Information
Type
Condenser
Product Line
GSX13
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Cooling Capacity
36000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
13.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
11.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
27 1/2 Inches
Product Width
26 Inches
Product Depth
26 Inches
Product Weight
139 Pounds
Shipping Weight
157 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
General Information
Type
Gas Furnace
Product Line
GMS8
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Single Stage
Blower Motor Type
PSC Multi-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide (Except CA)
Installation Available
Yes
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
80 %
Heating BTU
100000
High Fire Input
100000 BTU
High Fire Output
80000 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
No
Low NOx Emissions Learn More
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
No
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
12.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
4 Inches
Cabinet Width
21 Inches
Product Height
33 3/8 Inches
Product Width
21 Inches
Product Depth
28 3/4 Inches
Product Weight
118 Pounds
Shipping Weight
118 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
5012603
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Heat Exchanger Warranty
20 Years
General Information
Type
Evaporator Coil
Product Line
CAPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
TXV Installed
No
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
22 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
53 Pounds
Shipping Weight
63 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
