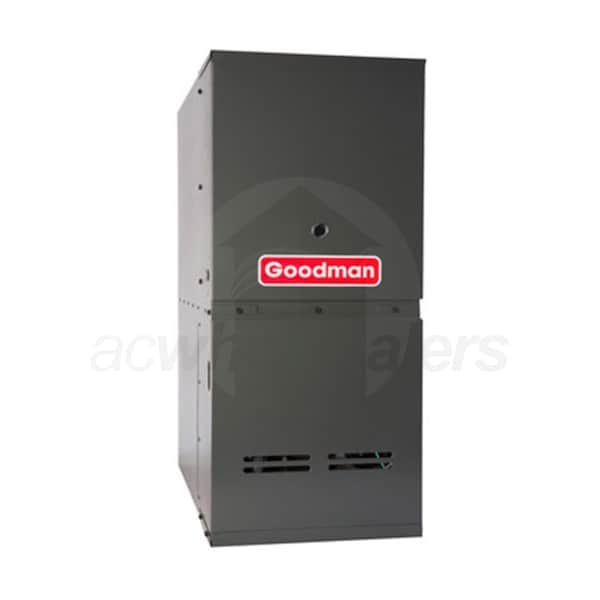

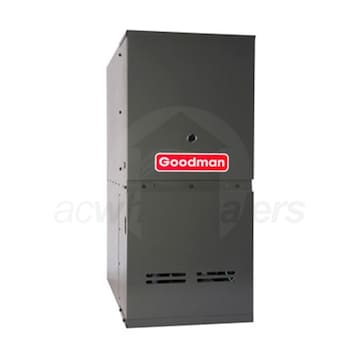

Goodman 80% AFUE 80,000 BTU Downflow 1 Stage Gas Furnace Heater

Model: GDS80804BN Item Number: 26221
Ask a Question
Goodman GDS80804BN
Goodman GDS80804BN
Watch Video
Goodman GDS80804BN
Watch Video
Goodman GDS80804BN
Watch Video
Goodman GDS80804BN
Watch Video
View All
Goodman GDS80804BN
PREVIOUS
NEXT
Goodman GDS80804BN
Watch Video
Watch Video
Watch Video
Watch Video
Enlarge Image

Price Match

PLUS ? Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
$632.00
Only 1 In-Stock
Ships Thursday, Dec 13th
Shipping Crate Icon
Free Shipping ? *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate ? *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Goodman 80% AFUE 80,000 BTU Downflow 1 Stage Gas Furnace Heater
Goodman 80% AFUE 80,000 BTU Downflow 1 Stage Gas Furnace Heater Model: GDS80804BN Item Number: 26221
$632.00
Only 1 In-Stock
QTY
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Save For Later
Ask a Question
Condition: New ? This product is new and has never been used. It's in its original packaging, which has not been opened.
Specification Highlights
    Type
    Gas Furnace
    Product Line
    GDS8
    Fuel Type
    Natural Gas
    Vent Type
    Chimney Vent
View More
Orientation
? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Select Attribute
Gas Valve Stages
? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Select Attribute
Low NOx Output
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Optional Accessories
Features
View More

Features

Overview for Goodman GDS80804BN

Overview for Goodman GDS80804BN

The Goodman brand GMS8/GDS8/GHS8 Multi-Speed Gas Furnace has an AFUE rating of 80%, which means that 80 cents of every $1.00 of heating energy expense warms your home. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

The Goodman GDS8 Single-Stage, Multi-Speed, Dedicated Downflow Series GDS80804BN Gas Furnace Heaters.

The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That
  • Dual-diameter tubular heat exchanger
  • Single-stage combination redundant gas valve
  • Norton hot surface mini-igniter
  • Quiet multi-speed direct-drive circulator blower motor
  • Furnace control board with self-diagnostics and low voltage terminal block
  • Quiet single-speed induced draft blower
  • Our SKU number(s): Goodman GDS80804BN
  • The manufacturer model number(s): Goodman GDS80804BN
  • Specifications
    View More

    Specifications

    General Information
    Type
    Gas Furnace
    Product Line
    GDS8
    Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Type ? Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
    PSC Multi-Speed
    Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow
    Gas Conversion Kit
    Available
    UPC
    663051543652
    Performance
    Nominal Heating Capacity
    80000 BTU
    High Fire Input
    80000 BTU
    High Fire Output
    64000 BTU
    AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Maximum Air Flow
    1600 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    10.5 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Product Height
    33 3/8 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 3/4 Inches
    Shipping Weight
    105 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    5012580
    Warranty Information
    Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Heat Exchanger Warranty
    20 Years
