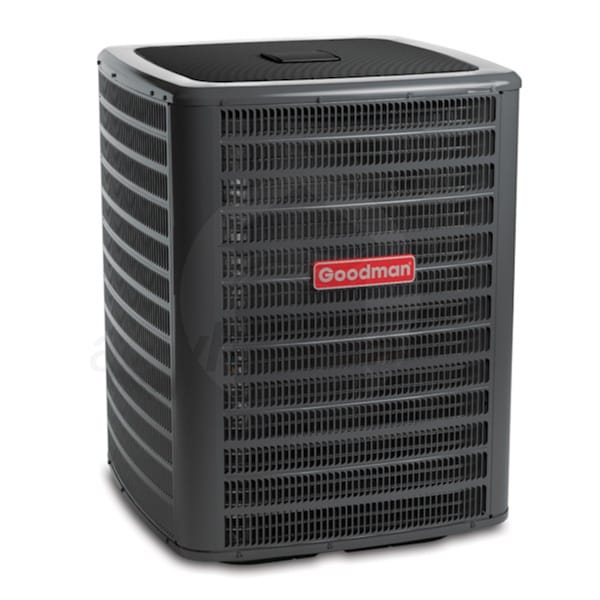

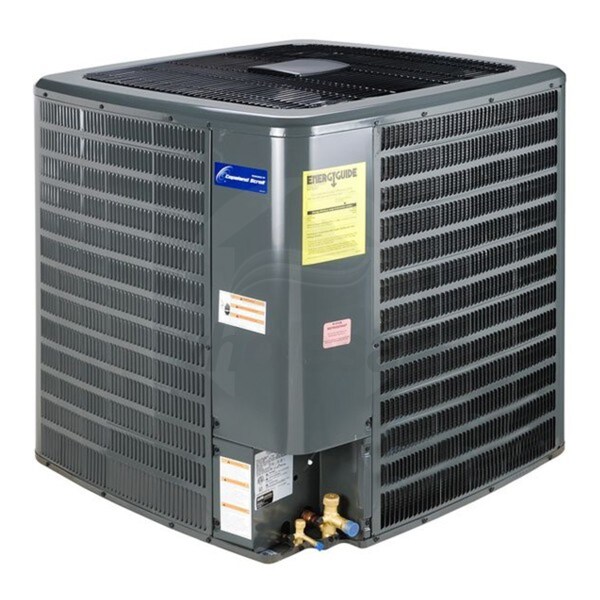

Goodman 5 Ton 16 SEER Air Conditioner Condenser 2 Stage Communicating

Model: DSXC160601 Item Number: 26468
Goodman DSXC160601
PREVIOUS
NEXT
Goodman DSXC160601
Goodman DSXC160601
Goodman DSXC160601
Goodman DSXC160601
Goodman DSXC160601
Enlarge Image
Goodman DSXC160601
Goodman DSXC160601
Watch Video
Goodman DSXC160601
Watch Video
Goodman DSXC160601
Watch Video
Goodman DSXC160601
Watch Video
Goodman DSXC160601
Watch Video
Goodman DSXC160601
Watch Video
Goodman DSXC160601
Goodman DSXC160601
Goodman DSXC160601
Goodman DSXC160601
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    279 Pounds Learn More
    279 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Condenser
    Product Line
    DSXC16
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman DSXC160601

Overview for Goodman DSXC160601 Air Conditioner CondenserWhen properly matched and installed, The Goodman DSXC160601 Air Conditioner Condenser offers up to 16 SEER high-efficiency performance. ”SEER” stands for Seasonal Energy Efficiency Ratio, a measure used by the U.S. Department of Energy to rate the efficiency of air conditioners. The higher the SEER, the greater the efficiency; and the lower the operating cost. In many applications, the efficiency of your Goodman brand DSXC16 Air Conditioner can be enhanced by using it in conjunction with a Goodman brand Gas Furnace that includes a variable-speed blower motor. The Goodman DSXC160601 Air Conditioner Condenser; a unit that provides you with high-efficiency, reliable performance and quiet operation. The Goodman DSXC16 DSXC160601 Air Conditioner Condensers The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That
Product Note
The recommended line set size for this unit will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Accessories" tab. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
Specifications
View More

Specifications

General Information
Type
Condenser
Product Line
DSXC16
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
UPC
663051470507
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5 Tons
Cooling BTU
60000
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
37.2 Amps
Recommended Breaker Size
60 Amps
Dimensions
Product Height
38 1/4 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
279 Pounds
Shipping Weight
301 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
