Goodman CHPTA - 2.0 Ton - Horizontal A Coil - Cased - TXV Included - 17.5" Width

Model: CHPTA2426B4 Item Number: 124875
Goodman CHPTA2426B4
PREVIOUS
NEXT
Goodman CHPTA2426B4
Enlarge Image
Our Price: $829.00
synchrony card icon
$139 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Tuesday, February 27th
Shipping to60601
Goodman CHPTA - 2.0 Ton - Horizontal A Coil - Cased - TXV Included - 17.5
Goodman CHPTA - 2.0 Ton - Horizontal A Coil - Cased - TXV Included - 17.5" Width Model: CHPTA2426B4 Item Number: 124875
$829.00
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    42 Pounds Learn More
    42 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Evaporator Coil
    Product Line
    CHPTA
Size (Tons)
Learn More
Size (Tons)
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Select Attribute
Cabinet Width
Select Attribute
Features
View More

Features

Overview for Goodman CHPTA2426B4

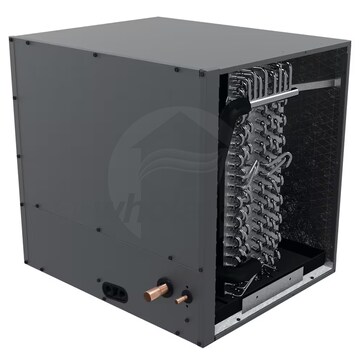

An air conditioner or heat pump is only as good as its evaporator coil. Luckily, Goodman designs their evaporator coils with the same mind for accessibility, longevity, and value as their other heating and cooling equipment. The CHPTA is a cased A coil for use in horizontal airflow applications. The all-aluminum construction and advanced design of this coil improves its durability and heat transfer efficiency.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Secure Cabinet
  • A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.
  • Condensate Management
  • The CHPTA features foil-faced insulation to inhibit the formation of condensate and a UV-resistant DecaBDE-free thermoplastic drain pan with secondary drain connections, keeping your system safe and operational.
  • Optimized For R-410A Refrigerant
  • The CHPTA is compatible with R-410A refrigerant and makes it the perfect fit for any homeowner.
  • Internal Thermostatic Expansion Valve
  • The CHPTA has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Evaporator Coil
    Product Line
    CHPTA
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling BTU
    24000
    Nominal Minimum Cooling Capacity
    24000 BTU
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    17 1/2 Inches
    Product Width
    26 Inches
    Product Depth
    21 Inches
    Product Weight
    42 Pounds
    Shipping Weight
    57 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
