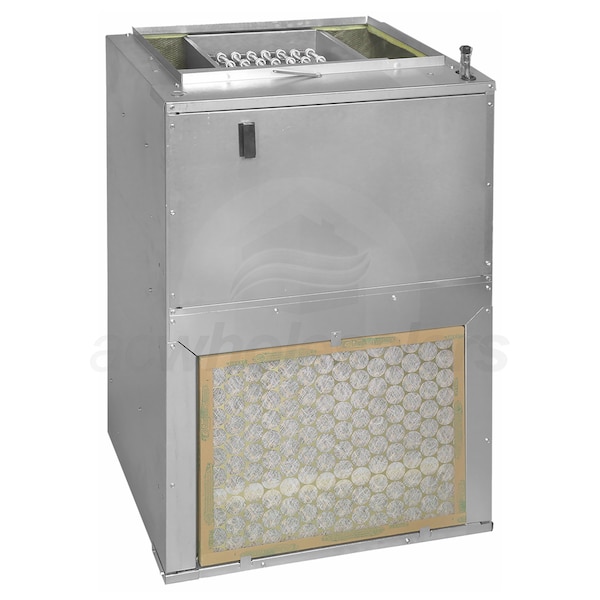

Goodman AWUT - 2.0 Ton - Air Handlers - Wall Mount - 208-230/1/60 - PSC Motor - 8 kW

Model: AWUT240814 Item Number: 145245
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Goodman AWUT240814
PREVIOUS
NEXT
Goodman AWUT240814
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Air Handler
    Product Line
    AWUT
    Product Category
    Air Handler
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman AWUT240814

Goodman air handlers are an integral part of finishing a total home environment control system. The AWUT plays a key role in reducing indoor humidity to a create much more comfortable environment. In addition, the AWUT works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need. AWUT air handlers with all-aluminum evaporator coils provide you with reliable, energy efficient and affordable indoor comfort.
  • Fully Adjustable TXV
  • AWUT air handlers are equipped with a fully adjustable TXV.
  • Blower Motor
  • AWUT air handlers use direct-drive, multi-speed ECM motors allows air volume variation for heating and cooling.
  • Electric Heat
  • AWUT air handlers come with a rust-resistant nickel chromium heating element that are sequence-controlled.
  • All-Aluminum Evaporator Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Easy Installation
  • AWUT air handlers can be installed vertically on the wall with the provided wall hanging bracket.
  • Built-In Filter Rack
  • AWUT air handlers come with a built-in filter rack and the filter is included.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
    • Specifications
    View More

    Specifications

    General Information
    Type
    Air Handler
    Product Line
    AWUT
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    PSC
    Mount Type
    Wall Mounted
    Installation Location
    Indoor
    Electric Heat
    Yes
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling BTU
    24000
    Electric Heat Capacity
    8.0 kW
    Maximum Air Flow
    900 CFM
    Minimum Air Flow
    865 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    39.6 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Suction Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Drain Outlet Diameter
    3/4 Inch
    Product Height
    36 Inches
    Product Width
    20 3/16 Inches
    Product Depth
    16 1/8 Inches
    Shipping Weight
    84 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
