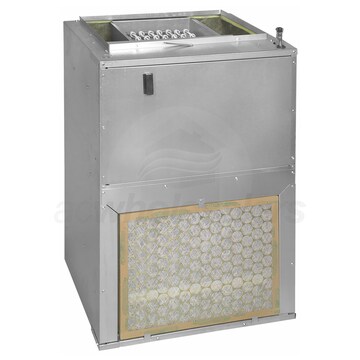

Goodman AWUT - 2.0 Ton - Air Handlers - Wall Mount - 208-230/1/60 - PSC Motor - 5 kW
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Type
Air Handler
Product Line
AWUT
Product Category
Air Handler
View More
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features
Overview for Goodman AWUT240514
Goodman air handlers are an integral part of finishing a total home environment control system. The AWUT plays a key role in reducing indoor humidity to create a much more comfortable environment. In addition, the AWUT works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need. AWUT air handlers with all-aluminum evaporator coils provide you with reliable, energy efficient and affordable indoor comfort.
Fully Adjustable TXV
AWUT air handlers are equipped with a fully adjustable TXV.
Blower Motor
AWUT air handlers use direct-drive, multi-speed ECM motors allows air volume variation for heating and cooling.
Electric Heat
AWUT air handlers come with a rust-resistant nickel chromium heating element that are sequence-controlled.
All-Aluminum Evaporator Coil
Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
Easy Installation
AWUT air handlers can be installed vertically on the wall with the provided wall hanging bracket.
Built-In Filter Rack
AWUT air handlers come with a built-in filter rack and the filter is included.
Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
Specifications
Specifications
General Information
Type
Air Handler
Product Line
AWUT
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
PSC
Mount Type
Wall Mounted
Installation Location
Indoor
Electric Heat
Yes
TXV Installed
Yes
Performance
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Electric Heat Capacity
5.0 kW
Maximum Air Flow
900 CFM
Minimum Air Flow
865 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.6 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
3/4 Inch
Product Height
36 Inches
Product Width
20 3/16 Inches
Product Depth
16 1/8 Inches
Shipping Weight
84 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
10 Years
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
