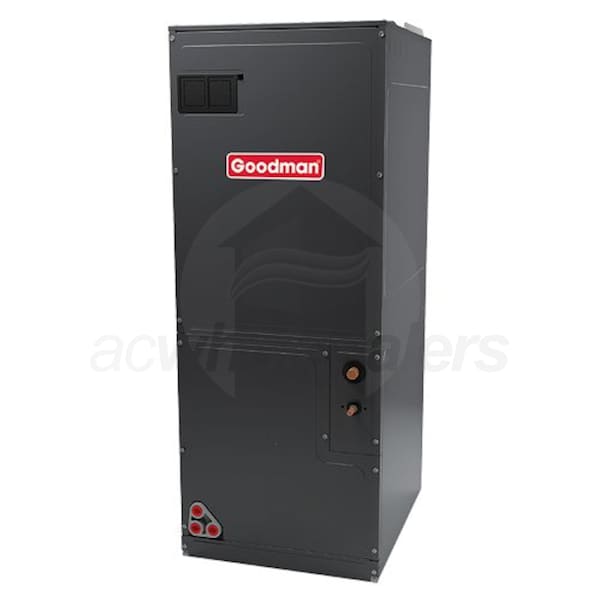

Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet

Name: Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet
Brand: Goodman
SKU: 69953
Price: 1887.00 USD
Availability: InStock
Rating: 4.00 (1 reviews)

Model: AVPTC61D14 Item Number: 69953

(1)

Ask a Question

Enlarge Image

View All

Add to Cart Form

Originally $1,887.00

Add to Cart for Lower Price

$299 / Month

Suggested monthly payments with 6 month financing.

Click for important monthly payment and offer information.

Factory items ship direct from the manufacturer
Shipping times vary

In-Stock

Ships in 2-5 Business Days

Shipping to60601

Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet Model: AVPTC61D14 Item Number: 69953

In-Stock

Accessories

Features

Specifications

Reviews

Product Q&A

Manuals

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.

Free Lift Gate

*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

112 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Product Category

Air Handler

UPC

663051564527

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features

Overview for Goodman AVPTC61D14

Overview for Goodman AVPTC61D14 Air Conditioner Air Handler
The Goodman AVPTC61D14 Air Conditioner Air Handler design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. These Goodman AVPTC61D14 Air Conditioner air handler is ideal for either new or retrofit installations.
The Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.

All-Aluminum Coil

Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.

Energy-Efficient Circulation

By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal airflow through shifting conditions in nearly any application.

Internal Thermostatic Expansion Valve

The AVPTC has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.

SmartFrame

This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.

Secure Cabinet

This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.

Condensate Management

The AVPTC's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.

ComfortBridge Compatible

This air handler is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control shortens the installation and maintenance processes by automatically detecting your equipment and providing diagnostics and troubleshooting.

Extended Warranty

Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

Specifications

Overview

Product Category

Air Handler

UPC

663051564527

General Information

Type

Air Handler

Product Line

AVPTC

Product Category

Air Handler

Refrigerant Type

R-410A

Blower Motor Speed

Variable-Speed

Motor Type

ECM

Configuration

Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.

Multi-Position

Installation Location

Indoor

Performance

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

5.0 Tons

Cooling BTU

60000

Maximum Air Flow

2035 CFM

Minimum Air Flow

1360 CFM

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

9 Amps

Recommended Breaker Size

15 Amps

Dimensions

Suction Connection Size

7/8 Inch

Liquid Connection Size

3/8 Inch

Product Height

58 Inches

Product Width

24 1/2 Inches

Product Depth

21 Inches

Product Weight

112 Pounds

Shipping Weight

167 Pounds

Certifications

ETL Listed

Yes

AHRI Certified

Yes

Warranty Information

Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

5 Years

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

10 Limited Years

Reviews

(1)

Reviews

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals

Goodman AVPTC Installation Manual

Goodman AVPTC Submittal

Goodman AVPT Spec Sheet

Goodman AVPTC Brochure

Goodman AVPTC Service Manual

Goodman AVPTC Warranty
