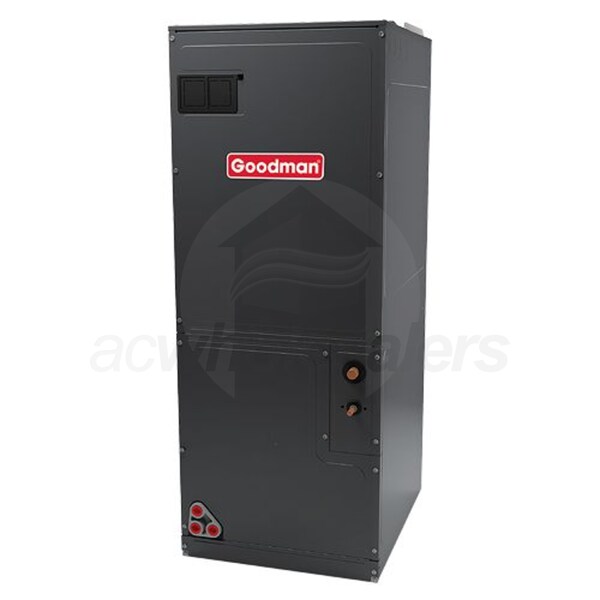

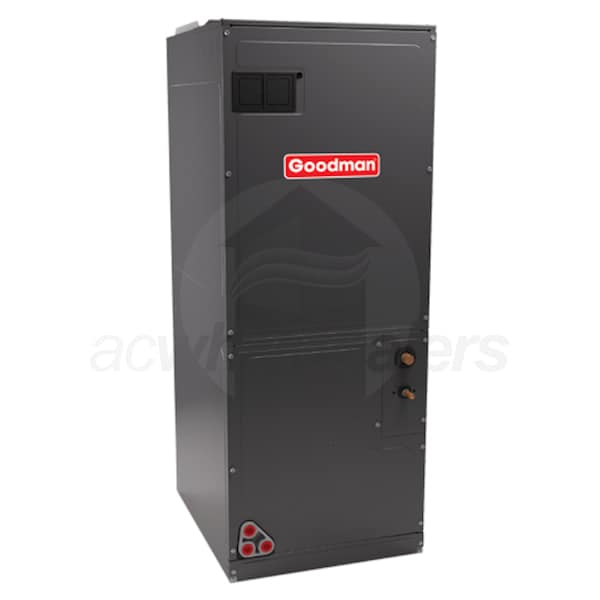

Goodman AVPTC - 4.0 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower

Model: AVPTC49C14 Item Number: 83236
Goodman AVPTC49C14
PREVIOUS
NEXT
Goodman AVPTC49C14
Goodman AVPTC49C14
Enlarge Image
Goodman AVPTC49C14
Goodman AVPTC49C14
Watch Video
Goodman AVPTC49C14
Watch Video
Goodman AVPTC49C14
Watch Video
Goodman AVPTC49C14
Watch Video
Goodman AVPTC49C14
Watch Video
Goodman AVPTC49C14
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    103 Pounds Learn More
    103 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Handler
    UPC
    663051532342
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman AVPTC49C14

  • Product Features
  • Galvanized, leather grain-embossed finish
  • Rigid SmartFrame™ cabinet
  • Horizontal or vertical configuration capabilities
  • All-aluminum evaporator coil
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • Improved humidity and comfort control
  • Provides adjustable low CFM for efficient fan-only operation
  • Variable-speed ECM blower motor
  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Our SKU number(s): Goodman AVPTC49C14
  • The manufacturer model number(s): Goodman AVPTC49C14
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Air Handler
    UPC
    663051532342
    General Information
    Type
    Air Handler
    Product Line
    AVPTC
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Variable-Speed
    Motor Type
    ECM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 Tons
    Cooling BTU
    48000
    Maximum Air Flow
    1290 CFM
    Minimum Air Flow
    850 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    49 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    103 Pounds
    Shipping Weight
    125 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
