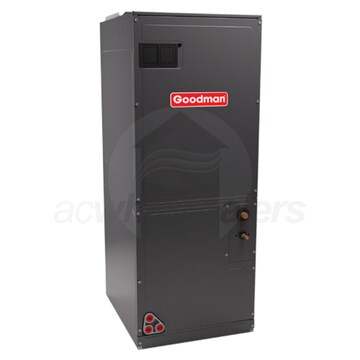

Goodman 2.5 to 3.5 Ton Air Conditioner Air Handler Smart Frame Cabinet

Model: AVPTC37C14 Item Number: 70116
Goodman AVPTC37C14
PREVIOUS
NEXT
Goodman AVPTC37C14
Goodman AVPTC37C14
Goodman AVPTC37C14
Goodman AVPTC37C14
Enlarge Image
Goodman AVPTC37C14
Goodman AVPTC37C14
Watch Video
Goodman AVPTC37C14
Watch Video
Goodman AVPTC37C14
Watch Video
Goodman AVPTC37C14
Watch Video
Goodman AVPTC37C14
Watch Video
Goodman AVPTC37C14
Goodman AVPTC37C14
Goodman AVPTC37C14
View All
Originally $1,600.00
Add to Cart for Lower Price
synchrony card icon
$259 / Month
Suggested monthly payments with 6 month financing.
Factory items ship direct from the manufacturer
Shipping times vary
In-Stock
Ships in 2-5 Business Days
Shipping to60601
Goodman 2.5 to 3.5 Ton Air Conditioner Air Handler Smart Frame Cabinet
Goodman 2.5 to 3.5 Ton Air Conditioner Air Handler Smart Frame Cabinet Model: AVPTC37C14 Item Number: 70116
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    109 Pounds Learn More
    109 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Handler
    UPC
    663051609501
Cabinet Width
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman AVPTC37C14

Overview for Goodman AVPTC37C14 Air Conditioner Air Handler
The Goodman AVPTC37C14 Air Conditioner Air Handler design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. These Goodman AVPTC37C14 Air Conditioner air handler is ideal for either new or retrofit installations.
The Goodman AVPTC AVPTC37C14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Energy-Efficient Circulation
  • By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal airflow through shifting conditions in nearly any application.
  • Internal Thermostatic Expansion Valve
  • The AVPTC has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • SmartFrame™
  • This air handler features Goodman's SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Secure Cabinet
  • This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
  • Condensate Management
  • The AVPTC's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.
  • ComfortBridge Compatible
  • This air handler is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control shortens the installation and maintenance processes by automatically detecting your equipment and providing diagnostics and troubleshooting.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Air Handler
    UPC
    663051609501
    General Information
    Type
    Air Handler
    Product Line
    AVPTC
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Variable-Speed
    Motor Type
    ECM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 - 3.5 Tons
    Cooling BTU
    36000
    Maximum Air Flow
    1275 CFM
    Minimum Air Flow
    845 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    53 7/16 Inches
    Product Width
    21 Inches
    Product Depth
    21 Inches
    Product Weight
    109 Pounds
    Shipping Weight
    144 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
